IR 102 Infrared Remote Control
The optional Extron IR 102 kit consists of the following components:
• IR 102 handheld remote control unit
• IR 102 remote receiver with 3-foot cable and RS-232 connector
• IR detector with 6-foot cable and captive screw connector
• External 12 VDC power supply
Install and operate the remote control in accordance with the IR 102 User’s Guide included
with the remote.
REMOTE
1 2 3 4 5 6
INPUT PRE-PEAK ON
OFF
OUTPUT
MONO AUDIO OUTPUT L R
POWER 12V 0.5A MAX
MTP SW6 RS-232 INSERT
Tx Rx SPARE
IR 102 Remote
Control Receiver IR 102 Remote Control IR Detector
3' Cable
6' Cable
Power
Supply
RS-232
Control
MTP SW6 Switcher
IR-102
+10 IR 102

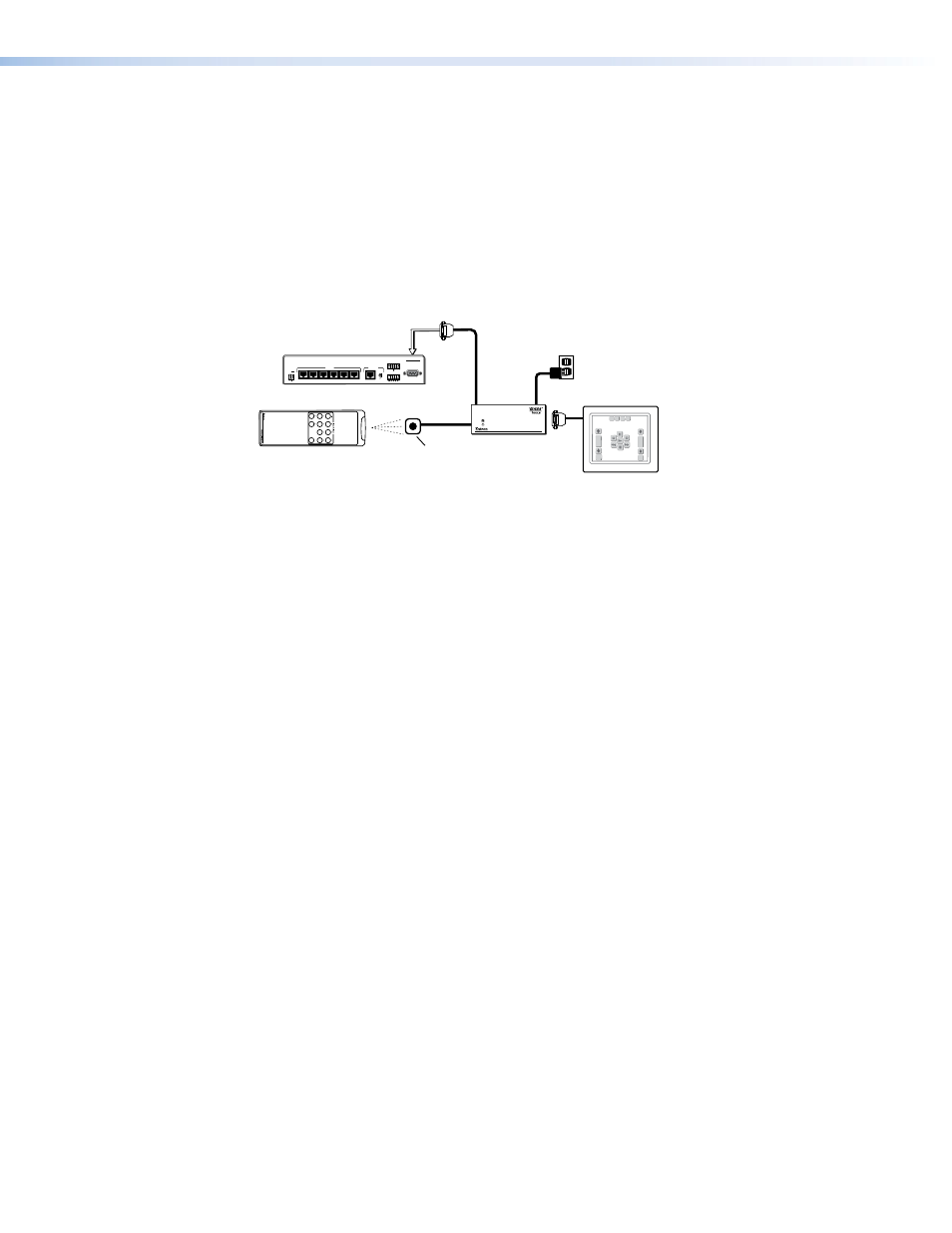

Figure 17. IR 102 Remote application
MTP SW6 • Remote Control 28
