Page 11
5.
Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment
should be maintained. Particular attention should be given to supply connections
other than direct connections to the branch circuit (such as the use of power strips).
Rack shelf mounting instructions
1.
Remove feet from the bottom of the MTP SW6 if installed.
2.
Mount the switcher on the rack shelf, using two 4-40 x 3/16” screws in opposite
(diagonal) corners to secure it to the shelf (figure 3).
3.
Install blank panel(s) or other unit(s) on the rack shelf.
4.
Attach the rack shelf to the rack using the supplied bolts.
1U Universal Rack Shelf

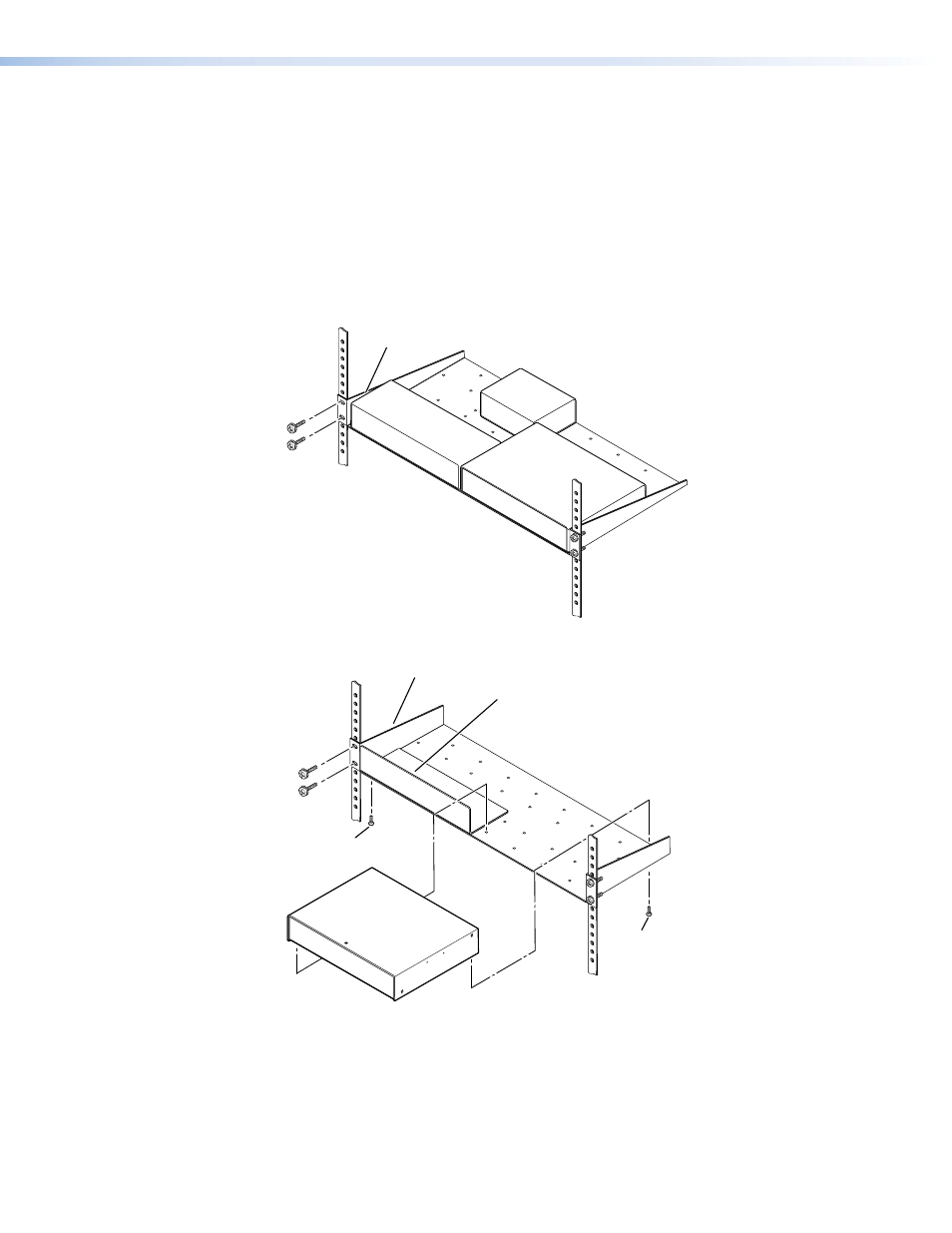

Figure 3.
Mounting the switcher on a universal rack shelf
6" Deep Rack Shelf
Front false
faceplate
uses 2
screws.
1/2 Rack Width Front False
Faceplate
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
Figure 4.
Mounting the switcher unit on a 6-inch deep rack shelf
MTP SW6 • Installation and Operation
7
