Front Panel Controls and Indicators

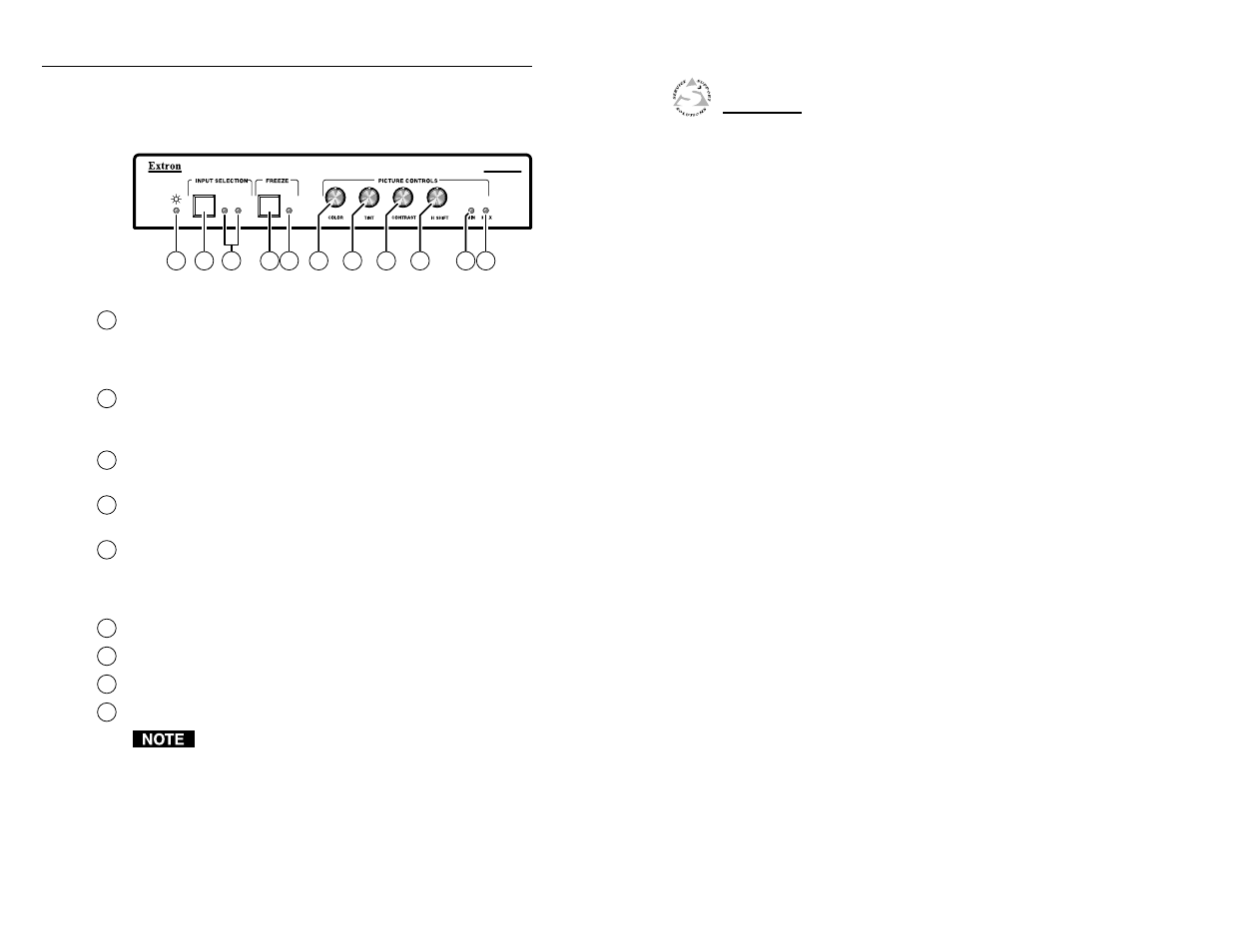

Figure 4 shows the controls and indicators on the front panel of
the Lanciaxi line doubler.
1 2
LANCIA xi
1 5 11 10 2 4 3 6 7 8 9
Figure 4 — Front panel controls and indicators
1 Power LED — The Power LED lights to indicate power is on. If
AC voltage is available, power is on. When power is first
applied, all front panel LEDs flash to indicate that the power up
sequence was accomplished satisfactorily.
2 Input Selection button — Pushing the Input Selection button
toggles between input 1 (composite video) and input 2
(S-video).
3 Input 1 and Input 2 LEDs — These LEDs indicate the selected
input.
4 Freeze button — Pushing the Freeze button toggles between
freeze frame or motion mode.
5 Freeze LED — The Freeze LED indicates that the Lanciaxi is in
freeze frame mode. While this LED is lit, the video output is a
single frame of video. Press the freeze button to return to
motion mode.
6 Color adjustment — Color intensity adjustment control.
7 Tint adjustment — Tint (hue) adjustment control.
8 Contrast adjustment — Contrast and brightness control.
9 H Shift adjustment — Horizontal centering control.
1. The picture control adjustments (Color, Tint,
Contrast, and H Shift) have no mechanical limits.
When the minimum or maximum limit is reached the
Min or Max LED blinks.
2. The Min and Max LEDs both blink once when a
picture control adjustment is turned through the
default value.
