18
IN2200RS Operation Manual - V1.1 01/03/2001 ©2001 - INLINE, Inc.
Set Audio Output for Unbalanced or Balanced
All four jumpers (J9/J10/J15/J16) must be set to the appropriate positions as indicated:
Set Output for Unbalanced (Factory Default)
J15 / J16
Closed
J9 / J10 Connect 2 Pins Closest to BNC Connectors
Set Output for Balanced
J15 / J16
Open
J9 / J10 Connect 2 Pins Closest to Center of Unit
Warning:: The J5 jumper must remain open at all times for normal
operation. Do not close this jumper! If J5 is closed, the microprocessor is
continuously reset and the unit will not function properly.

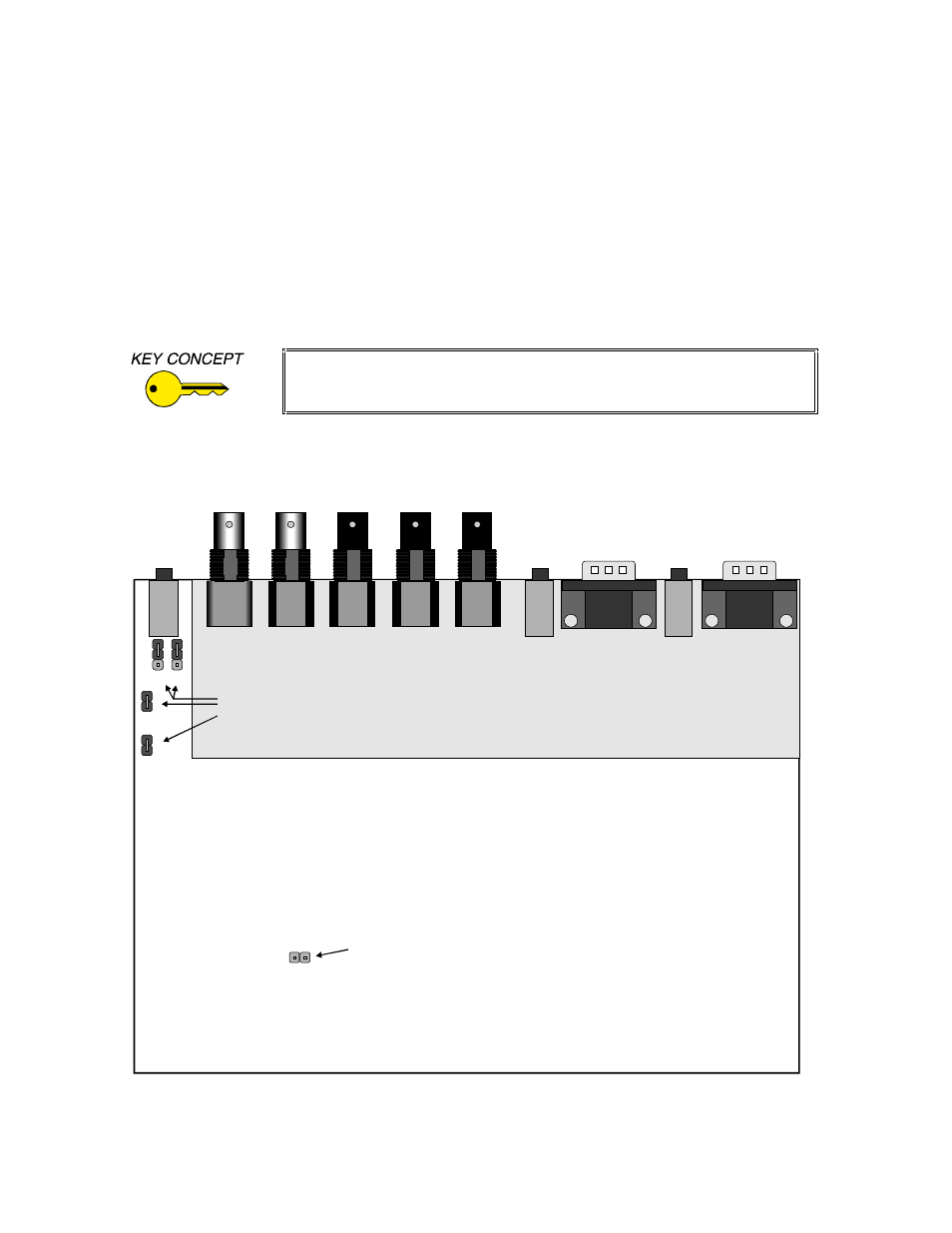

IN2200RS INTERNAL JUMPERS
Unbalanced / Balanced Audio
Output Selection Jumpers
(Diagram Shows Unbalanced)
Do Not Close
This Jumper!
J5
J10
J16
J15
J9
