When the IN2200RS is set for an unbalanced audio output signal and the application requires
RCA adapter cables), two (2) IN9107 (3.5mm Stereo Mini male to RCA Stereo male) cables can
be used as output adapters for the left and right output jacks. In this configuration, the output
signal is found on the red RCA connector on each IN9107.
When the IN2200RS is set for balanced audio output, custom adapter cables should be
constructed, conforming to the pin configuration shown in the diagrams below.
Note: The diagram above is for the main audio left and right outputs only. Cables for the audio
inputs and local audio outputs have a different pin configuration.
IN2200RS Internal Controls
The location of the IN2200RS internal controls is shown on the next page.
Warning: Adjustment of the IN2200RS internal controls must only be
carried out by qualified technicians. Care must be taken to avoid static
shock to the internal components.
Left Channel
Left Channel
Right Channel
Right Channel
Ground
Ground
Left
Ground Left
(-)
Left
(+)
Ground Right
(-)
Right
(+)
Ground
Ground
Right

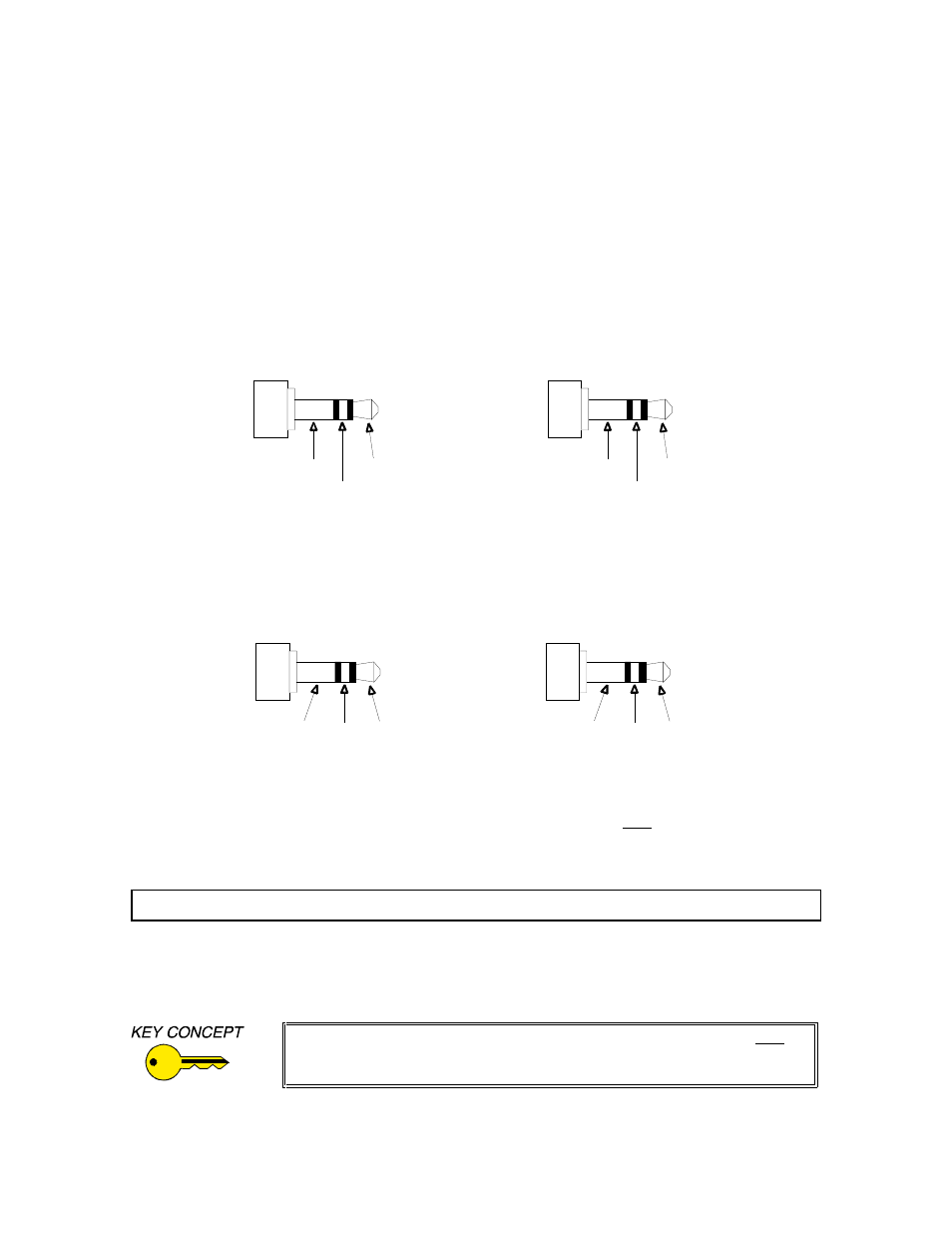

Cable Pin Outs for Unbalanced Output
Cable Pin Outs for Balanced Output
