IR 901 Infrared Remote Control

The IR 901 replicates all front panel controls except the Menu

and Next buttons. If executive mode has been enabled, input

selection and adjustments can still be made using the IR 901.

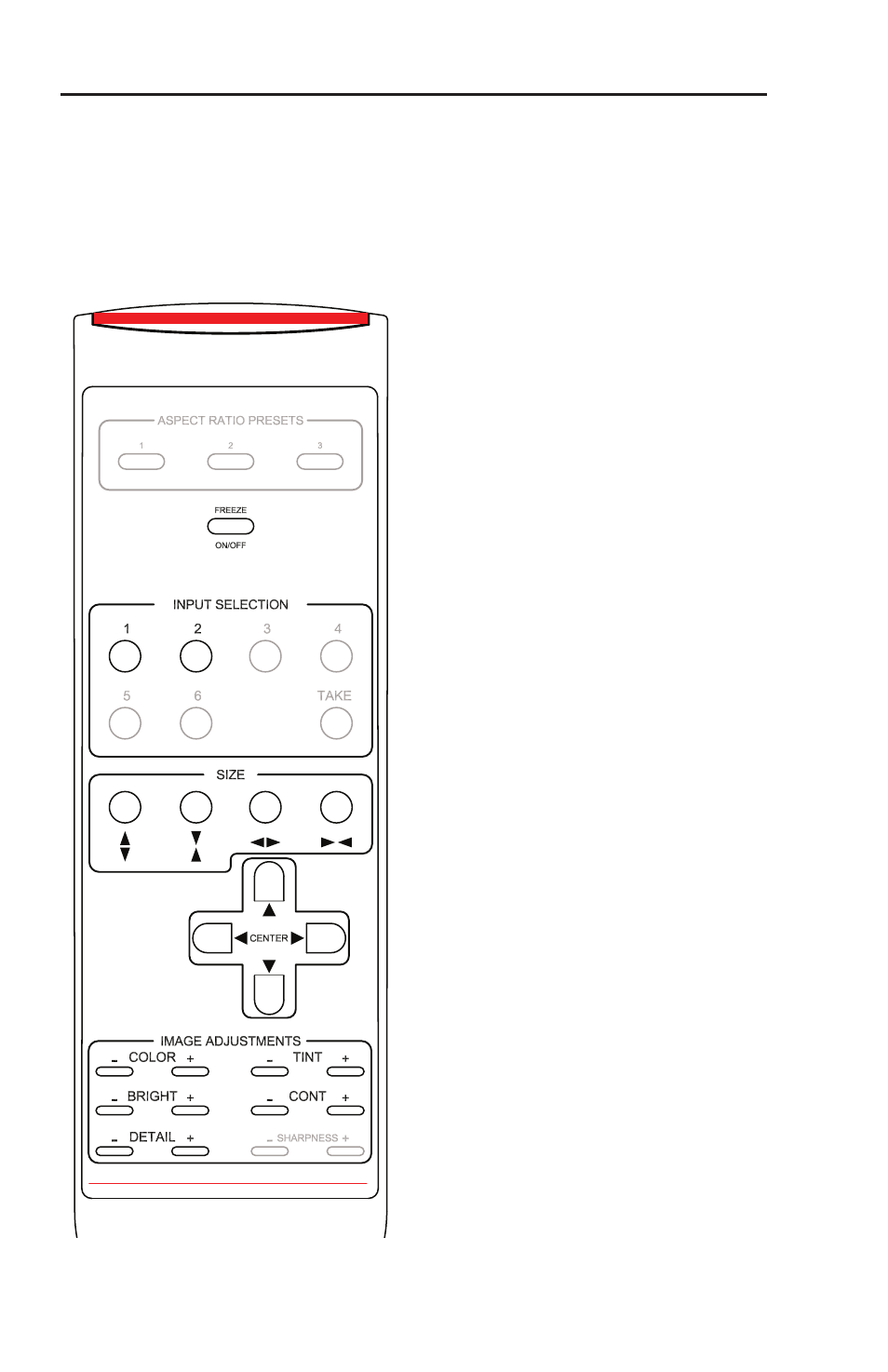

The IR 901 is shown. Buttons that are shown in gray are not

functional.

Freeze an input

To freeze the input being displayed,

press the Freeze On/Off button. The

video remains frozen until a different

input is selected or the Freeze button is

pressed again.

Select an input

To select an input source, press an input

button (1 or 2).

Size and center

Use the Size and Center buttons to

adjust the sizing and centering aspects

of the displayed image.

Image adjustments

The color, tint, brightness, contrast,

and detail of a displayed image may

be adjusted by using the appropriate

Image Adjustments button.

EXTRON

IR 901

DVS/QSD REMOTE

IN1502 • Front Panel Operation
