Refer also to the IN1502 User’s Manual at www.extron.com.
Advanced configuration

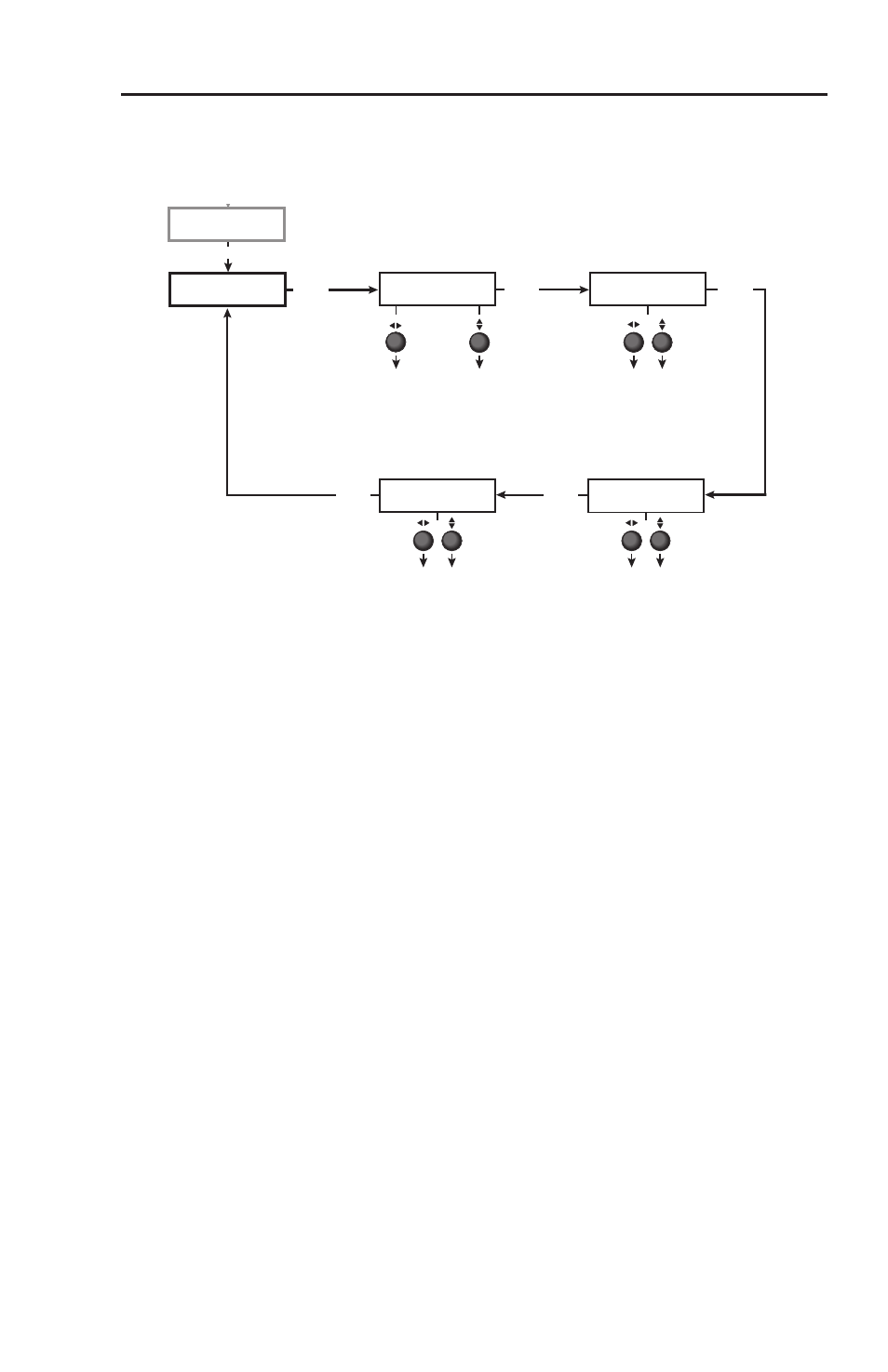

The following flowchart provides an overview of the Advanced
Configuration submenus.
ADVANCED
CONFIG
OUTPUT
CONFIG
CONTROL
BLUEMODE
ON T BLNK B
000 000
2:2 PLDN
ON
AUTOSW
ON
MENU
MENU
MENU
Default
Cycle
Blue and sync only
• On
• Off (default)
PAL film mode
• On
• Off (default)
Top and bottom blanking
• Top blanking ranges from 000
(default) to 127
• Bottom blanking ranges from
000 (default) to 127
Autoswitch mode
• On
• Off (default)
NEXT NEXT NEXT
NEXT NEXT
Advanced Configuration Submenus
Top and bottom blanking
During scaling, head switching artifacts or extraneous material
such as closed captioning may cause noise at the top and/or
bottom of the video. Blanking adds black lines to mask that
noise. The inputs can have separate settings.
Rotate the Adjust ([) knob to increase top blanking.
Rotate the Adjust ({) knob to increase bottom blanking.
Blue mode
To aid in setup of color and tint, blue mode allows only sync and
blue video signals from the selected input to the display.
Use either Adjust knob to toggle "On" or "Off".
Autoswitch (Autosw) mode
If both inputs have active signals, automatically selects Input 2.
Use either Adjust knob to toggle "On" or "Off".
2:2 Pulldown detection (PAL film mode)
Optimizes PAL video originating from film. For standard PAL
video sources, such as cameras, set this feature to "Off" (default).
N 3:2 pulldown detection is always on for NTSC video
sources.
Use either Adjust knob to toggle "On" or "Off".
IN1502 • Front Panel Operation 2-7
