Main Menus

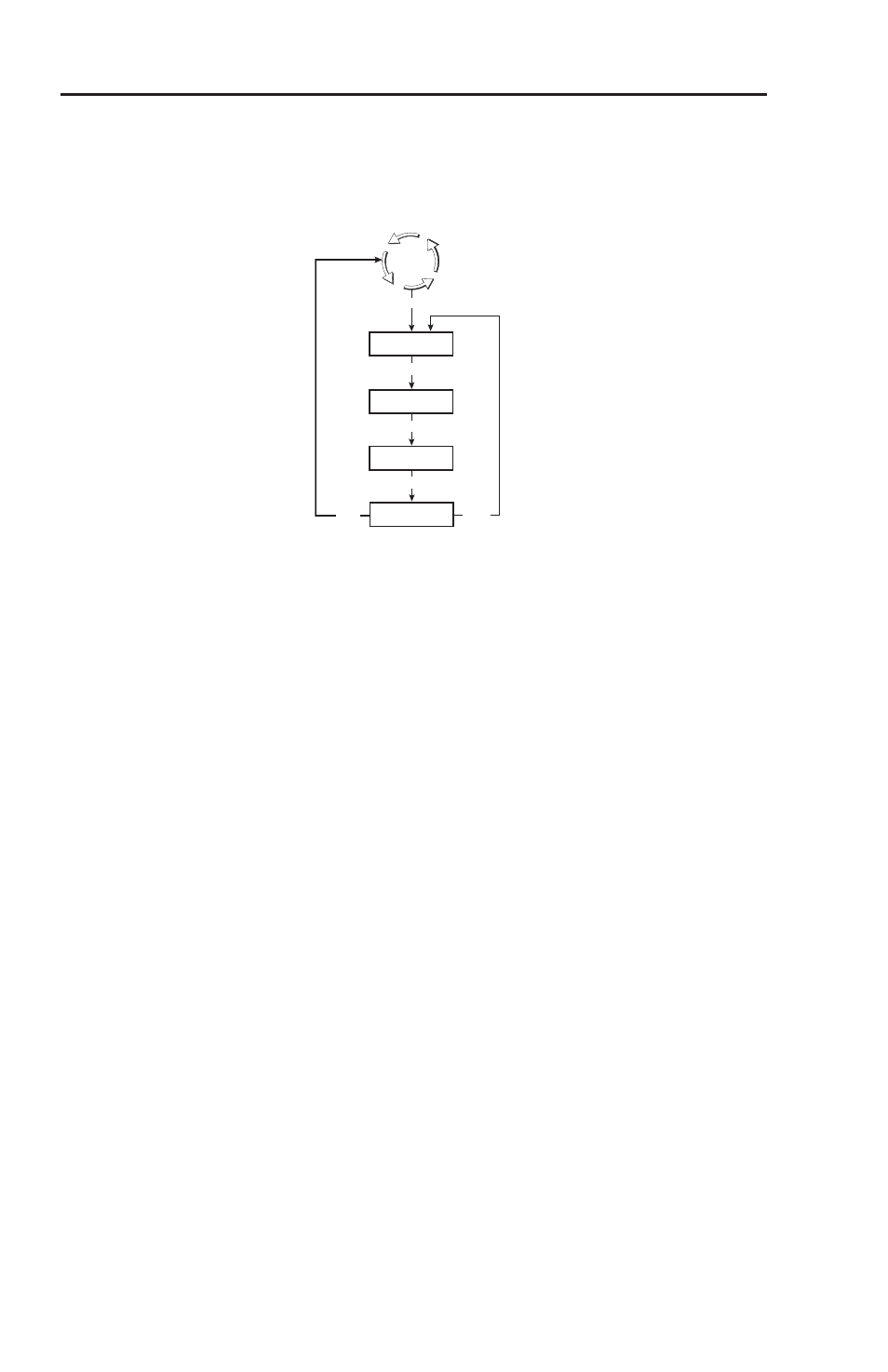

The main menus are shown in the following flowchart. Pressing

the Menu button toggles through the main menus in the order

shown. To enter submenus of a main menu, press Next.


CONTROL

OUTPUT

CONFIG

ADVANCED

CONFIG

EXIT

MENU

DEFAULT

CYCLE

Main menus

N To return to the default cycle, wait 10 seconds or press the

Menu button until the Exit Menu appears, then press the

Next button.

N Submenus are accessed from a main menu by pressing

the Next button. Regardless of which menu or submenu

is active, any time the Main Menu button is pressed, the

next main menu becomes active. For example, the menu

changes from the Output Configuration menu or its

submenus to the Advanced Configuration main menu.
