Surface Access Products • Introduction Surface Access Products • Introduction
Introduction
About the HSA Hideaway Enclosures
The Extron Hideaway HSA 800 and HSA 802 are furniture-
mounted, architectural solutions for inconspicuous computer
video interface connector access and control.
The HSA 800 provides space for two double-space (double-
height) or four single-space Extron Architectural Adapter Plates
(AAPs), a standard grounded US, IEC, UK, Europe, or
Australian (depending on the model) AC receptacle, and two
RJ-45 (Category 6) (CAT 6) connectors (figure 1-1). The HSA 802
provides twice the AAP space with two AC receptacles and four
RJ-45 connectors.
On the US/domestic HSA 802, the AAP spaces, RJ-45
connectors, and AC receptacle are arranged back-to-back on
opposite sides of the enclosure. On the IEC and all international
versions, the AAP spaces and RJ-45 connectors are also arranged
back-to back, while the AC receptacles are back-to-back on the
sides perpendicular to the AAPs. Cabling inside the enclosure
runs the AC power line and RJ-45 signal lines from the
connectors on the front panels to connectors on the underside of
the enclosure.

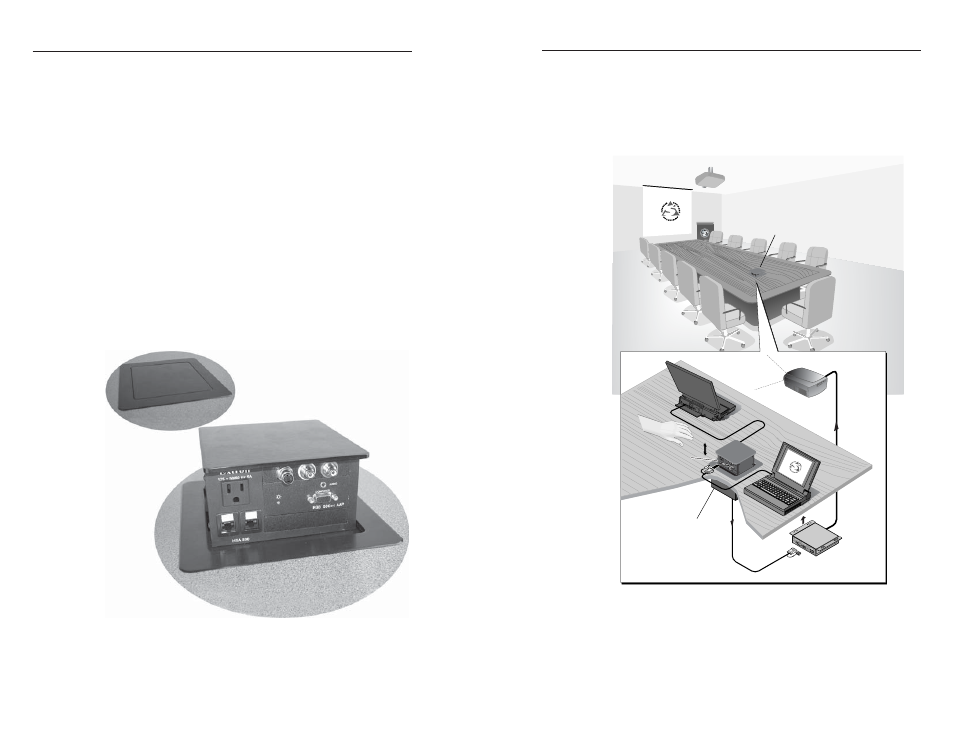

Figure 1-1 — HSA 800 hideaway enclosure
The installed enclosures fit nearly flush within a table or
podium top, storing the AAPs and connectors out of the way
and out of sight. To access the AAPs and connectors, the user
1-2
presses down on the top of the enclosure, releasing a
mechanical latch. A gas lift slowly raises the AAPs and
connectors into view.
The functionality of the HSA enclosures can be optimized with
one through four RGB 580xi AAPs connected to one through
four RGB 580xi Remote Interfaces (figure 1-2).
Projector
Extron
HSA 802
Extron
RGB 580
xi
Mounted
under
a table or
podium
Mounted
through a table
or podium
SO G SER R DD SP V- SY NC W IDT H NE G S YN C CO MP S YN C
INP UT S
RG B 5 80 xi
AN AL OG AU DIO
CO NT RO L VI DEO OU TP UT LE VE L A B C D E PE AK ING
HSA 802
H. S HIFT COM PUT ER INPU T SEL ECT AU DIO
Extron
RGB 580xi
SI AAP
each side
CO MPU TER INP UT SEL ECT AU DIO
Figure 1-2 — HSA 802 and RGB 580xi xi xi xi xi configuration
