Packaging for Shipment, Cont’d
6 . Release (extend) the top panel.
7 . Insert the HSA 800/802 and the clamshell into one of the
foam shells (figure B-4). Either open end of the clamshell
and the open top panel will fit into the recesses in the
foam.

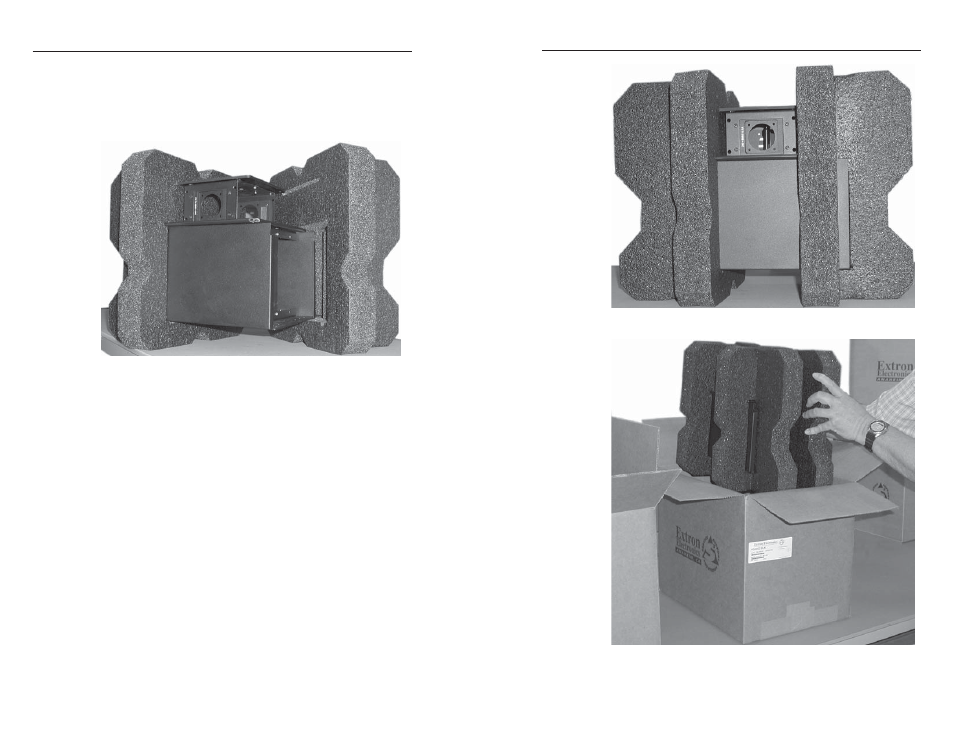

Figure B-4 — Installing the foam shell
8 . Insert the opposite end of the HSA 800/802 and the
clamshell into the remaining foam shell (figure B-5).
Firmly push the foam shells together as far as they will go
to completely suspend the HSA and clamshell. The sides
of the clamshell protrude through slots in the foam.
9 . Lower the foam-protected HSA into the shipping carton
(figure B-6).
10 . Close the shipping carton and seal it with high quality
shipping tape.
11 . Ship the HSA to Extron using a reputable shipping
company.
B-5 B-4
Figure B-5 — HSA suspended in the foam
Figure B-6 — Placing the HSA in the shipping
carton
