Installation, cont’d
2-8
needed, four spare screws are stored in the underside of
the enclosure.
#4-40 Nut w/ Captive
Washer
Cable
Front Panel
RGB 580xi SI AAP
HSA 800
COMPUTER
INPUT SELECT
AU DIO

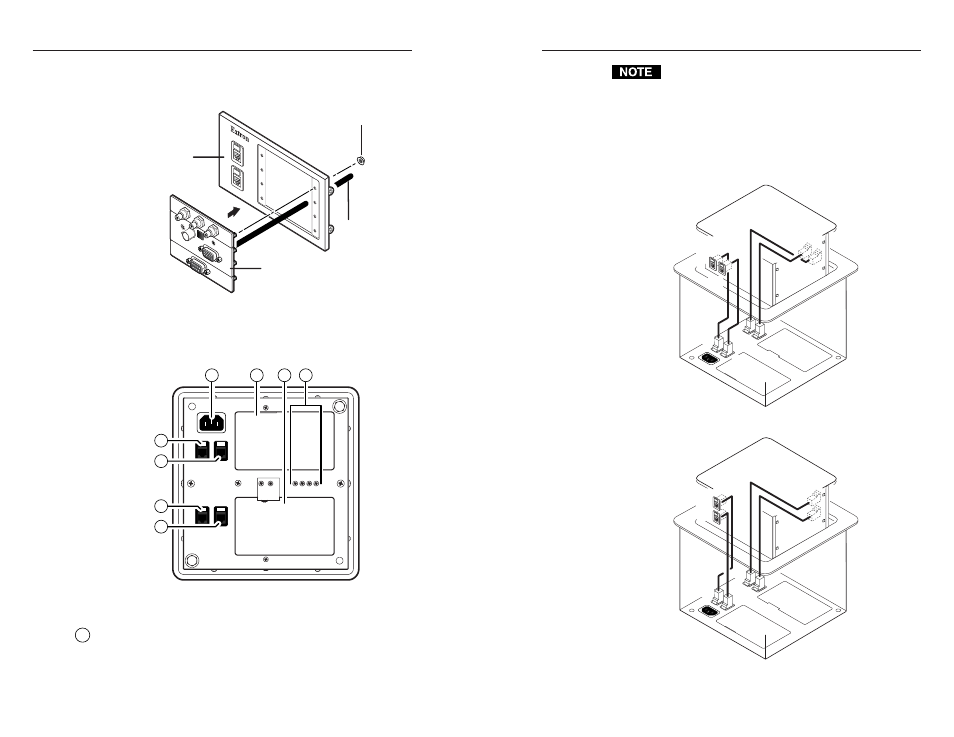

Figure 2-5 — Mounting an AAP device on the
faceplate of an international model
Cabling the enclosure
2 3 3
1
1
1
1
4
Figure 2-6 — HSA 800 and HSA 802 enclosure
underside connectors
1 RJ-45 connectors — Plug one end of a CAT 5 or CAT 6 twisted
pair (TP) cable into each of these RJ-45 female connectors.
Connect the other end to an appropriate telecommunications or
data network or to an Extron TP product.
An RJ-11 plug can be connected to the RJ-45 jack.
When cabling the front and bottom panels, the bottom RJ-45
connectors match up with the front panel RJ-45 connectors
shown in figure 2- 7 (US/domestic) or figure 2-8 (IEC and all
international versions). For example, match the front panel
RJ-45 connector A1 with the underside RJ-45 connector A1,
match A2 with A2, and so forth. Connectors B1 and B2 are
available on the HSA 802 only.
A1
A2
A1
A2
B1
B2
B1
B2
Figure 2-7 — HSA 802, US/domestic RJ-45 connectors
A1
A2
A1
A2
B1
B2
B1
B2
Figure 2-8 — HSA 802, IEC/international RJ-45
connectors
2-9
