Surface Access Products • Maintenance and Modifications Surface Access Products • Maintenance and Modifications
Maintenance and Modifications, cont’d
Mounting
Surface
Clamshell
Full Thread
Mounting Bolts
AAP Cables
Flat Washer
IEC Power Cord
RJ-45 Connectors
Shroud
HSA 802
Remove 16
screws
12 5 - 50 /60 Hz 0. 5A
CO MPU TER
INP UT SEL ECT AU DIO

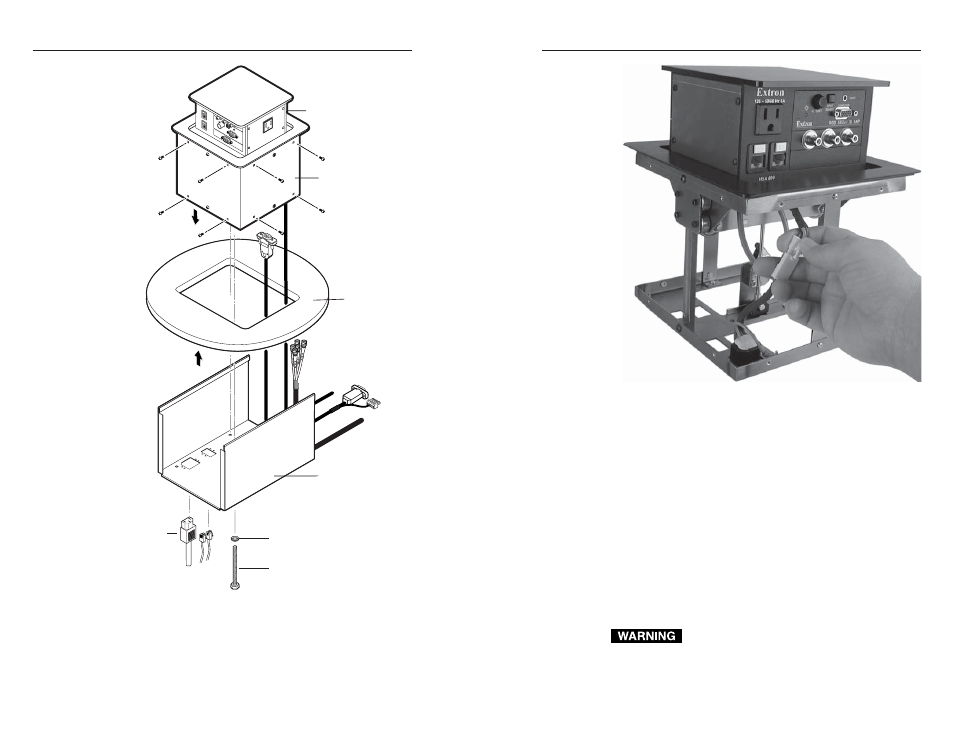

Figure 3-3 — Removing the HSA 802 from the table
17 . Carefully lower the HSA enclosure into the table opening.
From the underside, bolt the clamshell to the enclosure
with the two bolts removed in step 5.
3-7 3-6
Figure 3-4 — Disconnecting the interior AC cable
18 . Connect the IEC power cord and RJ-45 cables to the
connectors on the underside of the surface mount
enclosure.
19 . To prevent wear and tear caused by cable movement,
secure the AAP cables underneath the table. See Routing
the AAP Cables in chapter 2, Installation.
Adding a Second Connector Panel
The standard HSA 800 includes one connector panel with the
associated connectors and AAP opening. Non-US/domestic
versions also have a separate AC connector panel. Future needs
may demand adding a second connector panel and, for non-
US/domestic versions, an AC panel (in effect converting the
HSA 800 into an HSA 802). Add the additional panels as
follows:
Ensure that AC power is disconnected before
servicing the HSA unit.
