Extron • Emotia Xtreme MX • User’s Manual
Installation and Operation
Page 2-2
VGA PC'S and SUN/SGI (All cables are included)
1. Turn the computer and its monitor Off. For a SUN/SGI
application, connect the provided adapters and . PCs

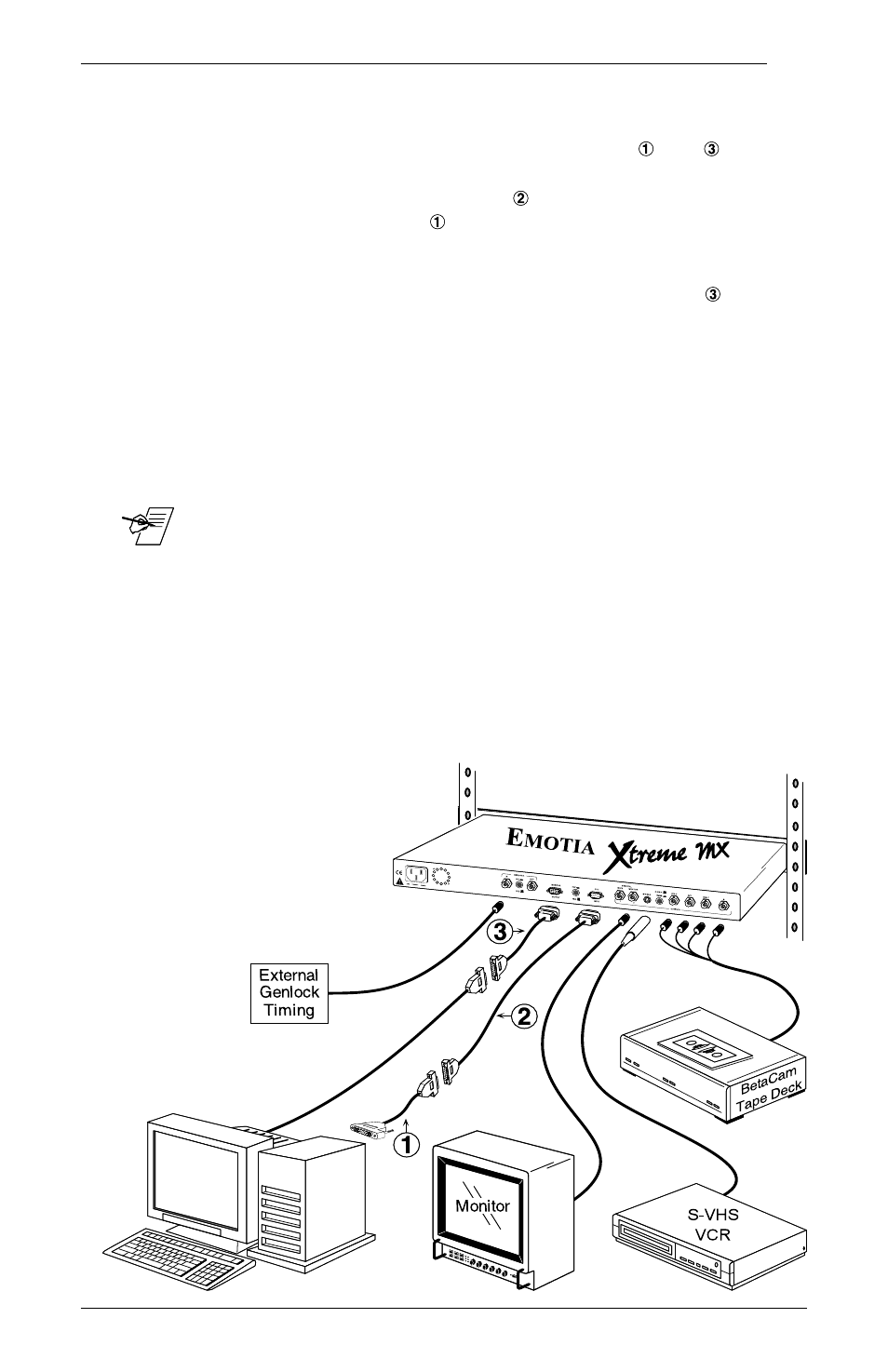

will not require adapters. Use the diagram below as a guide.
2. Connect the VGA input cable (26-112-15) male end to the
computer or adapter and the female end to the Emotia
Xtreme MX CPU Input connector.
3. Use the computer monitor's cable to connect to the Emotia
Xtreme MX Monitor Output connector or adapter cable.
4. Connect the cable from the desired Emotia Xtreme MX
output connector (see note below) to the input connector of
the output device.
5. Turn the computer and the computer monitor power On.
6. Use the Emotia Xtreme MX Horizontal centering, Vertical
centering, Horizontal Size and Vertical Size controls to align
the image on the screen.
7. Set the remaining front panel switches as required.
_ Emotia Xtreme MX available outputs are:
1. Composite Video (2 BNC connectors labeled MAIN &
MONITOR, for 1 or 2 monitor(s) or other output devices.)
2. S-Video (4-pin Mini DIN connector)
3. Four BNC connectors switchable to either:
A. RGBS Video
B. Component Video (R-Y, B-Y, Y)
