Extron • Emotia Xtreme MX • User’s Manual
Installation and Operation
Page 2-1
Installing the Emotia Xtreme MX
If rack mounting is required it should be done before cabling,
otherwise, skip to “Cabling” below.
Rack Mounting

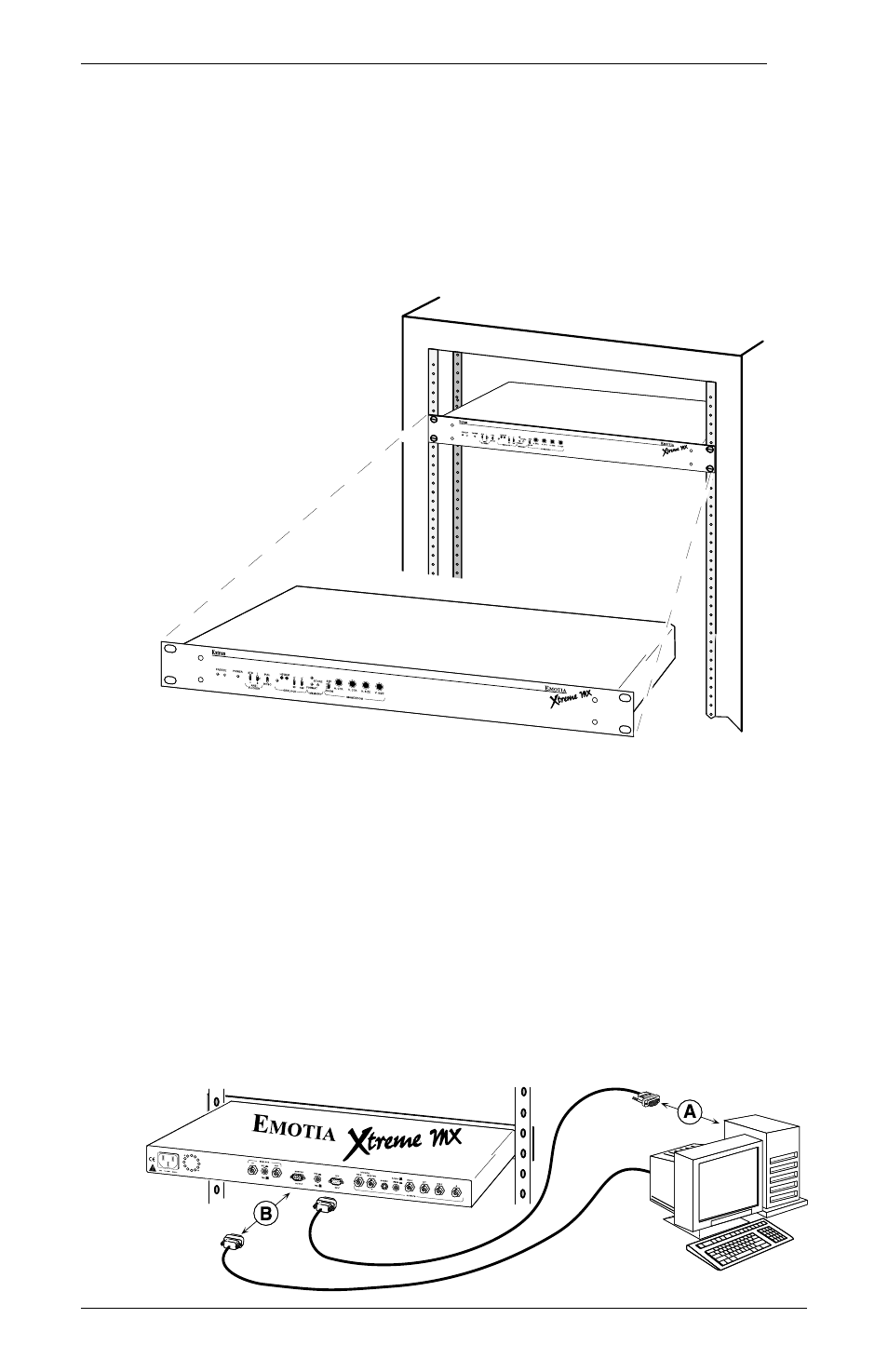

To rack mount the Emotia Xtreme MX, mount it as shown below
using 4-user supplied screws to secure the front panel to the
rack. Upon completion of the rack mounting procedure, go to
“Cabling” below.
Cabling
The video output from a workstation connects to the Emotia
Xtreme MX CPU INPUT connector (standard VGA 15-pin HD
Male). An adapter may be required between the workstation and
the VGA cable to the Xtreme MX (see bubble A in the diagram
below). The workstation monitor is connected to the MX
MONITOR OUTPUT connector (standard VGA 15-pin HD
Female). An adapter may be required between the monitor
cable and the MX (see bubble B in the diagram below). The
Emotia Xtreme MX is compatible with most workstations and the
following procedures cover cabling for most applications.
