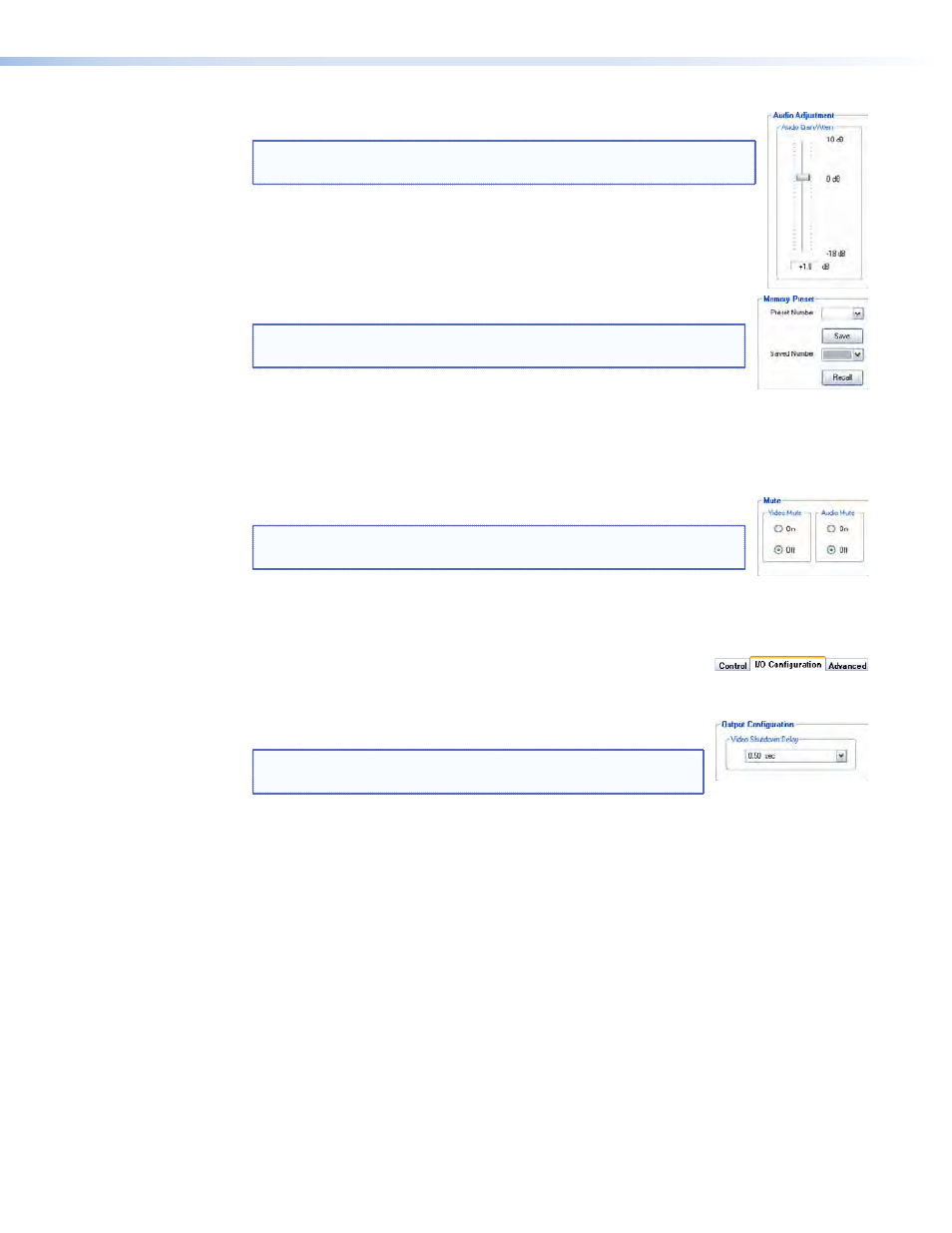

Audio Adjustment area
NOTE: The Audio Adjustment area controls are available only if you are
connected to the transmitter.
Audio Gain/Attenuation slider — Click and drag the Audio Gain/
Attenuation slider control to select the input audio gain or attenuation
value, from -18 dB to +10 dB in 1.0 dB increments.
Memory Preset area
NOTE: The Memory Preset area controls are available only if you are
connected to the receiver.
The Memory Preset area provides a means to save and recall memory
presets. Memory presets are stored values of the horizontal and vertical position saved in
nonvolatile memory. When the FOXBOX is powered down and later powered back up, the
settings are available for selection using the Recall button. Saving the settings to a preset
using the Save button overwrites the settings previously written to that preset.
Mute area
NOTE: The Mute area controls are available only if you are connected
to the receiver.
Click the Video Mute radio button, the Audio Mute radio button, or
both in the Mute area to turn the video and audio mutes on and off.
I/O Configuration tab functions
Click the I/O Configuration tab to access the functions
described below.
Output Configuration area
NOTE: The Output Configuration area control is available only
if you are connected to the receiver.
The Video Shutdown Delay setting delays the digital video to help monitor sync correctly
during an input rate change. Only video is delayed; embedded audio is not delayed.
