Receiver connections, controls, and indicators, Receiver connections, controls, and, Indicators – Extron Electronics FOXBOX Tx_Rx HDMI User Guide User Manual

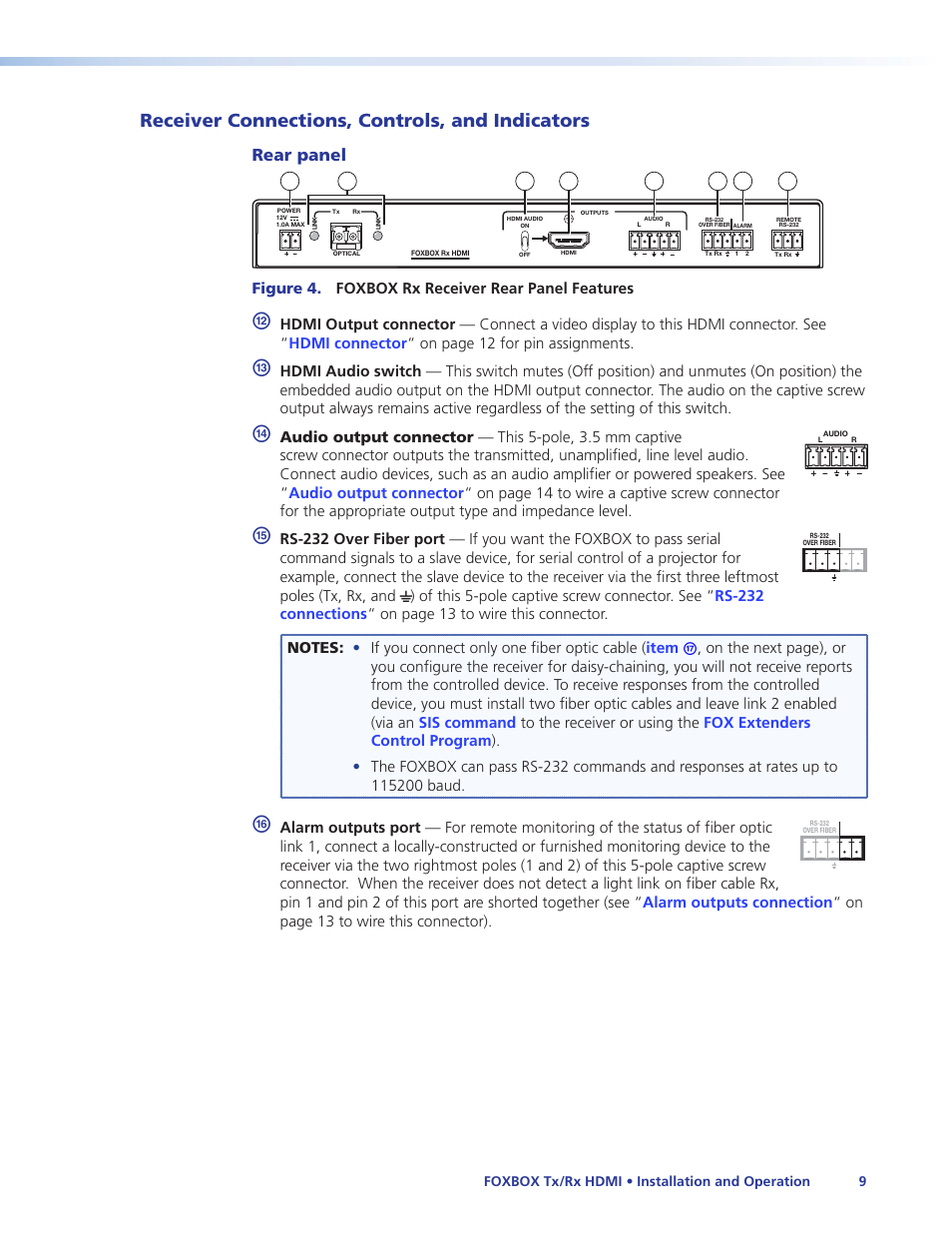

Page 15: Item, Rear panel
