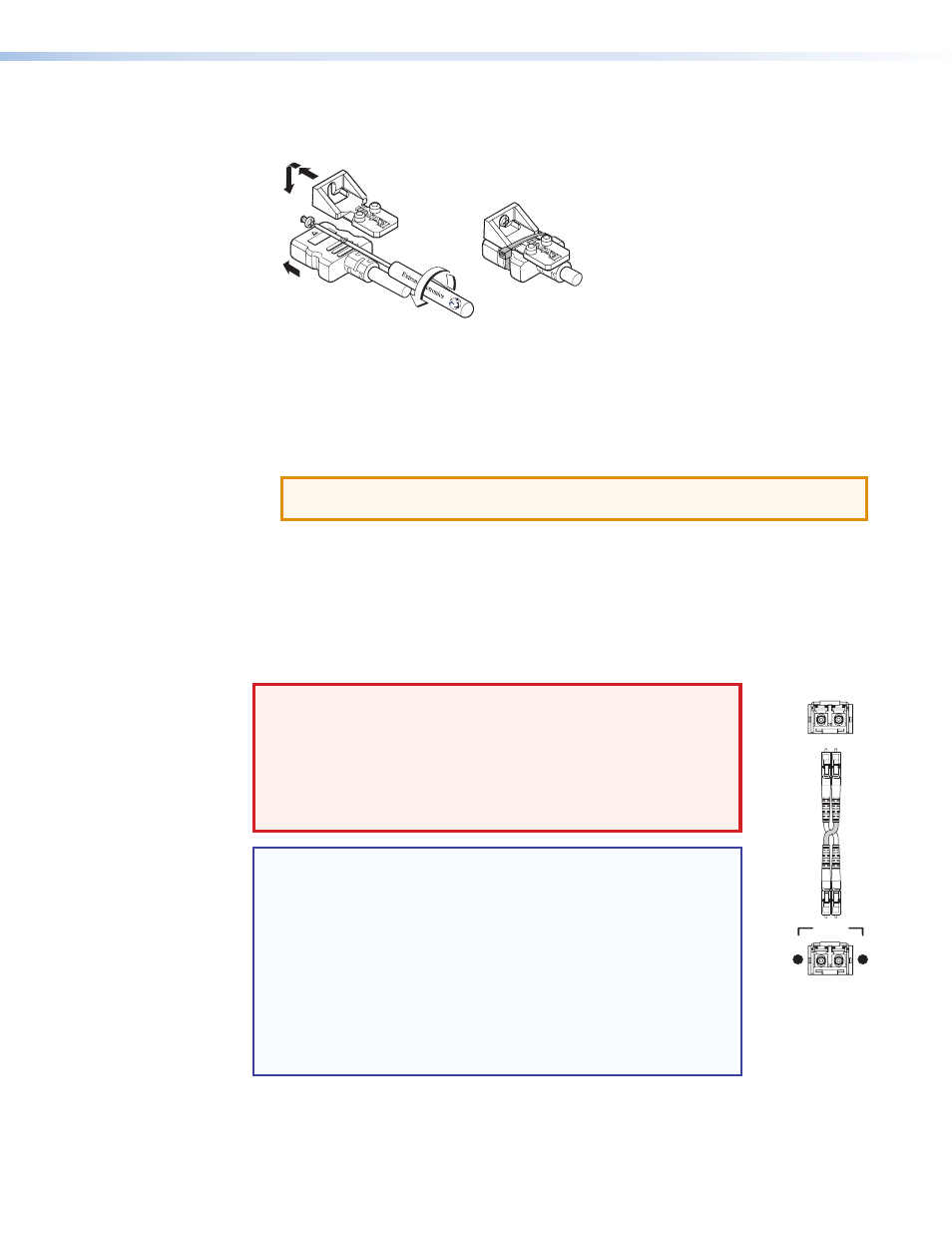

Connecting the HDMI Connector

Use an Extron LockIt Lacing Bracket to secure an HDMI cable to each device as follows:

3

a

b

c

d

e

Figure 7.

Installing the LockIt Lacing Bracket

1.

Plug the HDMI cable into the panel connection.

2.

Loosen the HDMI connection mounting screw from the panel enough to allow the
LockIt lacing bracket to be placed over it. The screw does not have to be removed.

3.

Place the LockIt lacing bracket on the screw and against the HDMI connector, then
tighten the screw to secure the bracket.

ATTENTION: Do not overtighten the HDMI connector mounting screw. The shield

to which it fastens to is very thin and can easily be stripped.

4.

Loosely place the included tie wrap around the HDMI connector and the LockIt lacing
bracket as shown.

5.

While holding the connector securely against the lacing bracket, use pliers or a similar
tool to tighten the tie wrap, then remove any excess length.

Wiring for Fiber Communication

WARNING: Risk of serious physical injury: This device outputs

continuous invisible light, which may be harmful to the eyes; use with
caution.

Do not look into the rear panel fiber optic cable connectors or into
the fiber optic cables themselves.

Plug the attached dust caps into the optical transceivers when
the fiber cable is unplugged.

NOTES:

Ensure the proper fiber optic cable is used for the transmitter and
receiver. Typically, singlemode fiber optic cable has a yellow jacket
and multimode fiber optic cable has an orange or aqua jacket.

Only one fiber optic cable, transmitter-Tx-to-reciever-Rx, is
required for video, audio, and serial command transmission.
However, for only one fiber optic cable, the HDMI signal output by
the receiver is not HDCP-compliant.

To receive responses from the controlled device and for HDCP
compliance, install both fiber optic cables and leave link 2
enabled.

Transmitter

to

Receiver

OPTICAL

Rx

Tx

LINK

LINK

OPTICAL

Rx

Tx
