Use either blank 8-button strips in, Figure 22 – Extron Electronics FOX SW8 User Guide User Manual
Page 27

FOX SW8 • Reference Information
21
5.
Save the translucent, white diffuser, but remove the text/label insert from the transparent
button cap lens.
6.
Insert the replacement button label into the button cap. Check for correct label
orientation.
7.
Align the white diffuser plate with the cap (lens). The bumps on the diffuser plate should
be aligned (top and bottom) with the notches on the clear button cap. Firmly snap it into
place.
8.
Align the tabs on the switcher plunger with the notches on the diffuser plate. Gently, but
firmly, press the reassembled button into place in the front panel of the switcher.
9.
Repeat steps 2 to 8 as needed to relabel other buttons.

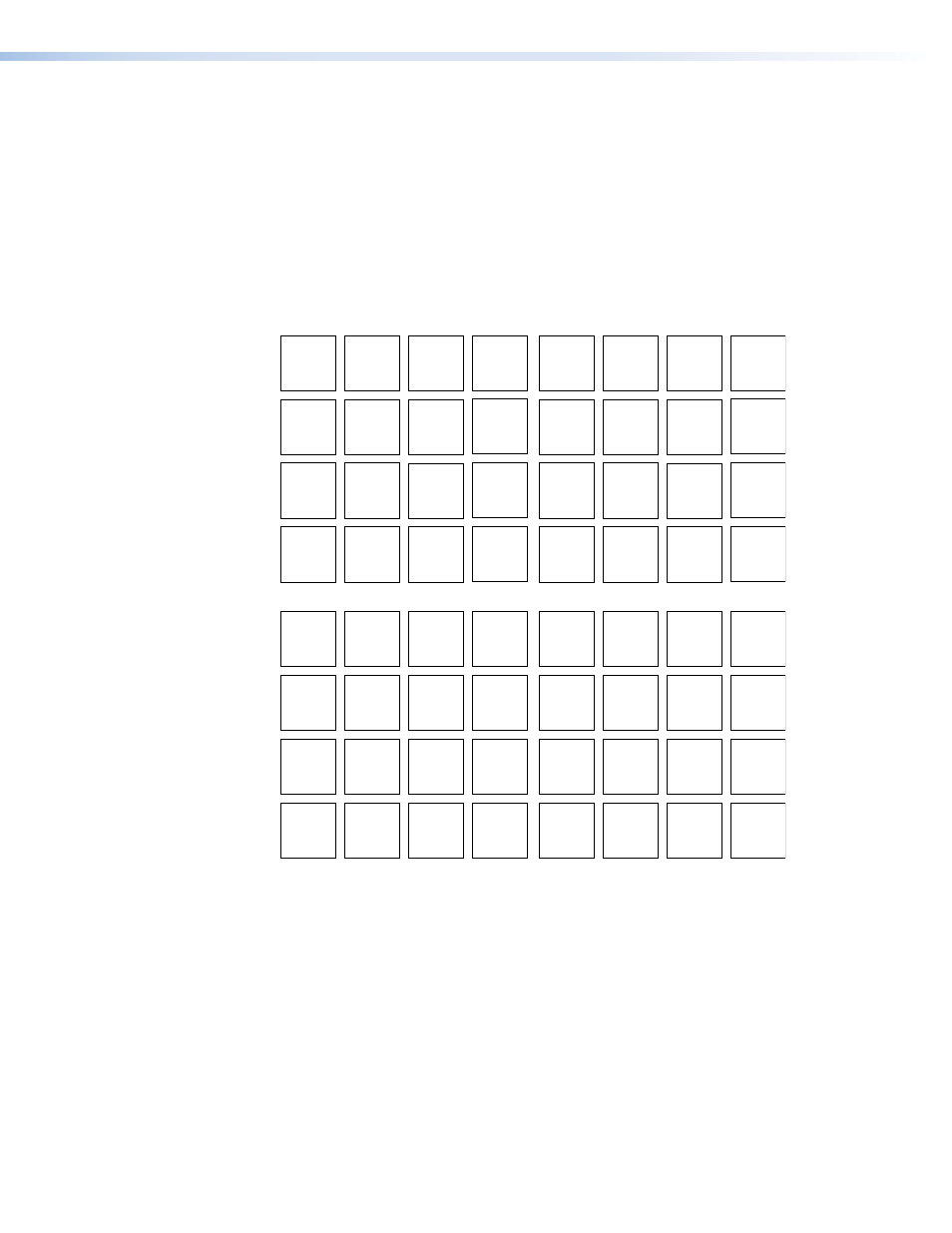

Figure 22.
Button Label Blanks, 8-button Strips
