FOX SW8 • Introduction

7

Front Panel Configuration Port

FOX SW SERIES

FIBER OPTIC SWITCHER

8

CONFIG

1

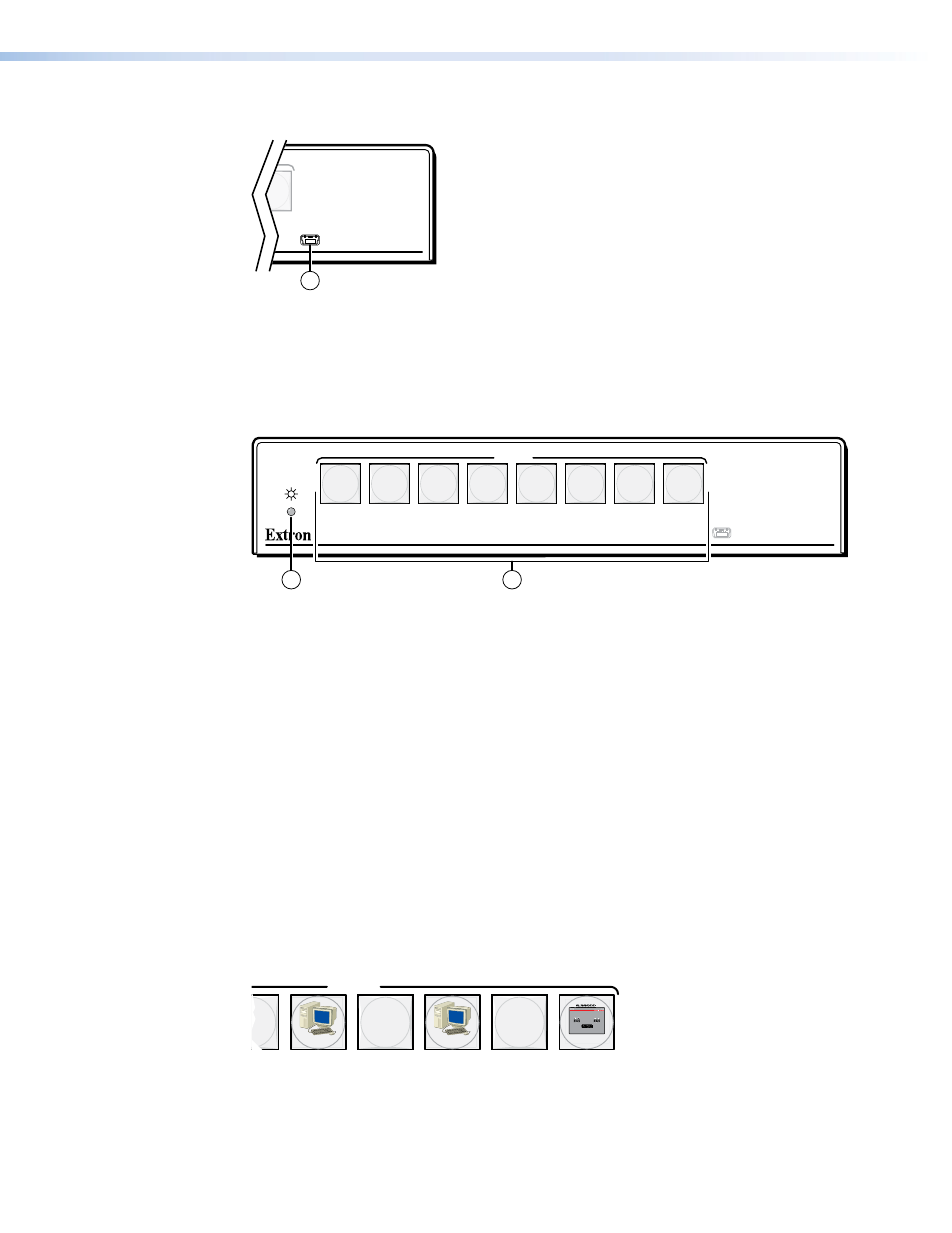

Figure 6.

FOX SW8 Configuration Port

a

Config(uration) port — For USB control of the switcher, connect a host device, such
as a computer or touch panel control, via this mini USB B port.

Controls, Indicators, and Operation

FOX SERIES

FIBER OPTIC SWITCHER

6

7

8

5

4

3

2

1

INPUTS

CONFIG

1

2

Figure 7.

FOX SW8 Front Panel

Controls and Indicators

a

Power LED

This LED lights when power is applied to the unit.

b

Input Buttons — These buttons select the input. A button lights to indicate the

selected input.

Button Icons

The numbered translucent covers on the input and output buttons can be removed and
replaced to insert labels behind the covers.
Labels can be created easily with the Extron Button Label Generator software,
which ships with the switcher. Each input can be labeled with names, alphanumeric
characters, or even color bitmaps for easy and intuitive input selection (see
figure 8 for sample button icons,

Button Label Generation Program

on page 18 for using

the labeling software, and

Button Labels

on page 20 for blank labels and a procedure for

removing and replacing the translucent covers).

7

5

3

INPUTS

Computer

Computer

VTG 200

Figure 8.

Sample Button Icons
