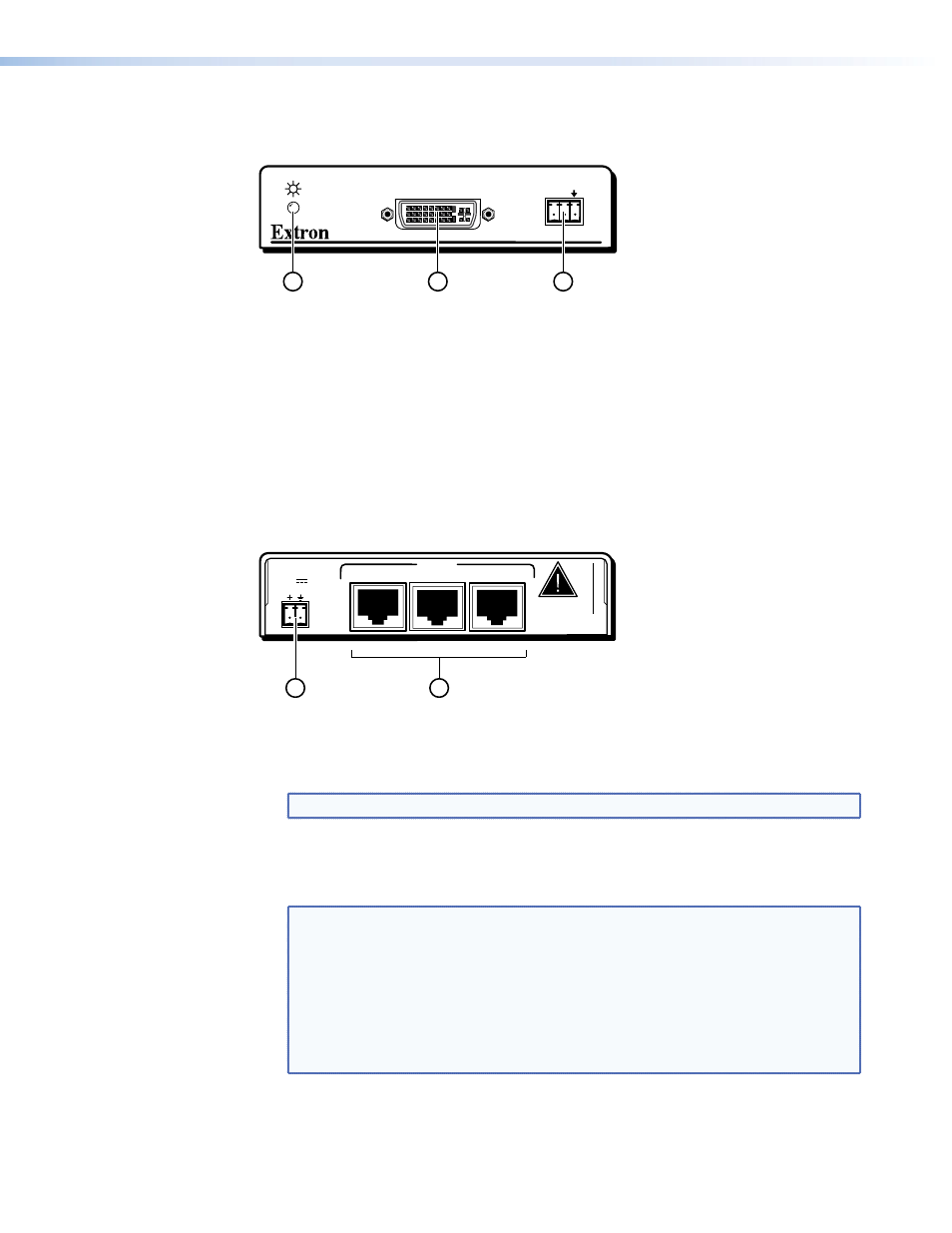

DVI DL 201 Rx Front Panel
The illustration below shows the front panel features of the DVI DL 201 Rx.
DVI 201 Rx SERIES
Tx Rx
CONTROL
PASS THRU
9 11
DVI-D OUTPUT
10
Figure 4. DVI DL 201 Rx Front Panel Features
i
Power LED — An amber light indicates that the DVI DL 201 Rx is receiving power
from a power supply or remotely, through the transmitter. A green light indicates that
the receiver is also receiving a video signal.
j
DVI-D output — One female DVI-I connector provides a dual-link DVI-D output.
k
Control signal pass-through — A three-pole, 3.5 mm captive screw connector
inputs pass-through RS-232 (two-way) or IR signals (one-way).
DVI DL 201 Rx Rear Panel
The illustration below shows the rear panel features of the DVI DL 201 Rx.
POWER
12V
0.4A MAX
12
INPUTS
1 2 3
13
DO NOT
CONNECT
INPUTS TO
LAN
D
VI DL 201 Rx
Figure 5. DVI DL 201 Rx Rear Panel Features
l
Power input — An optional 12 VDC power supply (not provided) connects to this
two-pole, 3.5 mm captive screw connector.
NOTE: The receiver can be remotely powered by the transmitter.
m
Twisted pair inputs — Three RJ-45 jacks receive video, remote power, and pass-
through communications/control signals from the transmitter. They can also send pass-
through control signals via the transmitter.
NOTES: The DVI DL 201 transmits high frequency signals via these TP outputs.
Connections between the transmitter and receiver must be point to point.
It is recommended that there should be no couplers, adapter, or patch
panels between the transmitter and receiver units.
Do not use skew-free cable. Extron strongly recommends DTP26 cable,
especially when using high resolutions such as 1920x1200, 1600x1200,
or 2560x1600. DTP26 cable is available as non-plenum (part number
22-214-03) or plenum (part number 22-215-03).
DVI DL 201 Tx/Rx • Panels and Cabling 5
