Installation MIQ/Blue PS
3 - 6 ba76095e02 01/2013
Additional terminating
resistor on the MIQ/
Blue PS
An additional terminating resistor is only required if, except in the MIQ/
Blue PS, no other terminator switch is available on the IQ S
ENSOR N ET
island. The terminating resistor is connected to one of the three SEN-
SORNET connectors (Fig. 3-4). The terminating resistor must bridge
the two outside terminals of the SENSORNET connector. The SEN-
SORNET connector can still be used to connect a sensor.

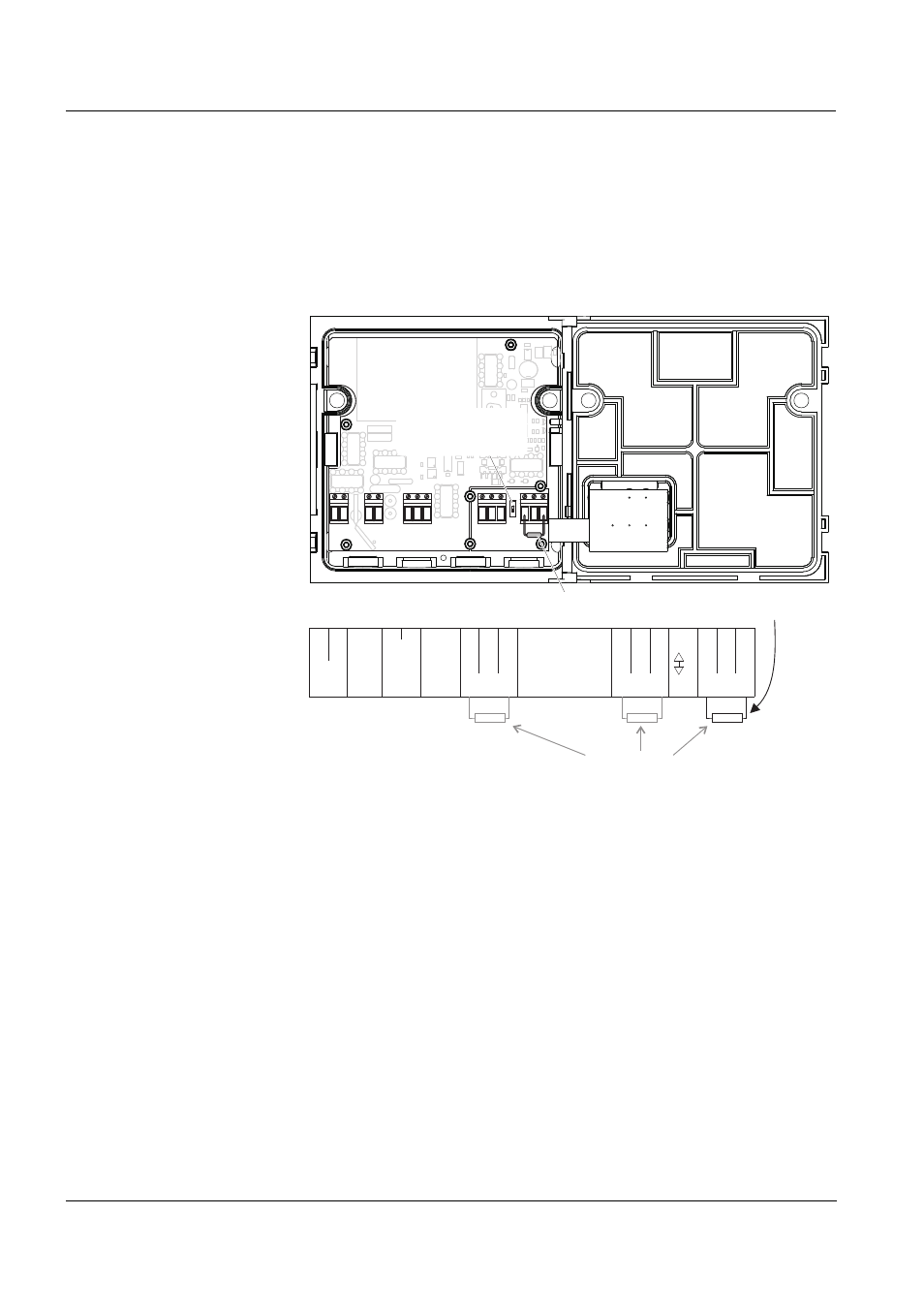

Fig. 3-4 MIQ/Blue PS with additional terminating resistor
6
8
7
9
2
1
3
5
4
SN terminator
switch ON
additional terminating resistor
X13 X12
100...
240V AC
MAINS
L1 N
X11 X10
24V DC
INPUT
POWER SENSORNET 2 SENSORNET 1
ON
OFF
X6
RED RED
SN
TERMINA
TO
R
SHIELD GREEN SHIELD GREEN
X5 X4 X3 X2 X1
SENSORNET 3
X8 X9 X7 RED SHIELD GREEN
+ -
R R R
connection selectable
