Omron Touch-Screen Display

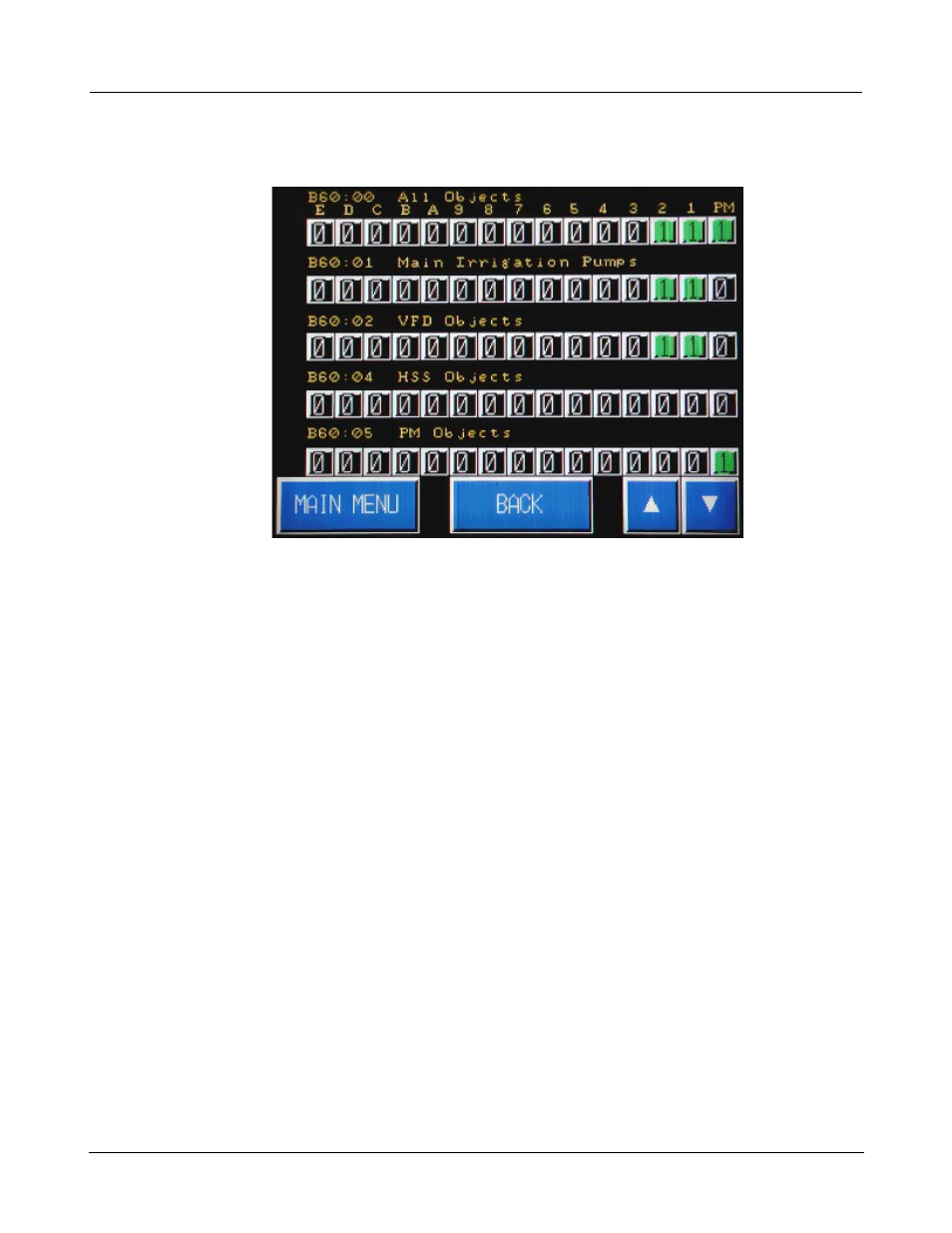

· Press the B60:xx Pump & Accessory Definitions screen touch key to display the B60:00 All

Objects screen.

All parameters are in bit mode with 16 bits available. A zero (0) entered for the object number means

that it is disabled. A one (1) underneath the object number means that it is enabled.

· B60:00 defines all station objects. Even though an object can be defined under another

parameter, it will only work if defined here.

· B60:01 defines your main pumps.

· B60:02 lists your VFD pumps. A fixed speed main pump will be defined under main pumps, but

not under VFD pumps.

· B60:04 allows High Speed Switching (HSS). This is used when you have multiple pumps on a

single VFD, and you want the VFD to run both pumps when "comboing" up.

For Example:

Pump 1 is a 50 HP VFD pump.

Pump 2 is a 75 HP VFD pump.

Combo 1 is the PM pump.

Combo 2 is the 50 HP VFD pump.

Combo 3 is the 75 HP VFD pump.

Combo 4 is the 75 HP VFD pump, and the 50 HP pump running across the line.

Set object numbers 1 and 2 to a 1 under HSS.

You also need to ensure that the following parameters are also set:

§ N20:1 set to 4 for Max Combos Normal Mode (Combo setpoints screen).
