Xylem 19 001 300 R2 Silent Storm VFD Pumping System OMRON Touch Screen Display Manual User Manual
Page 131

© 2013 Flowtronex
How Do I?
127

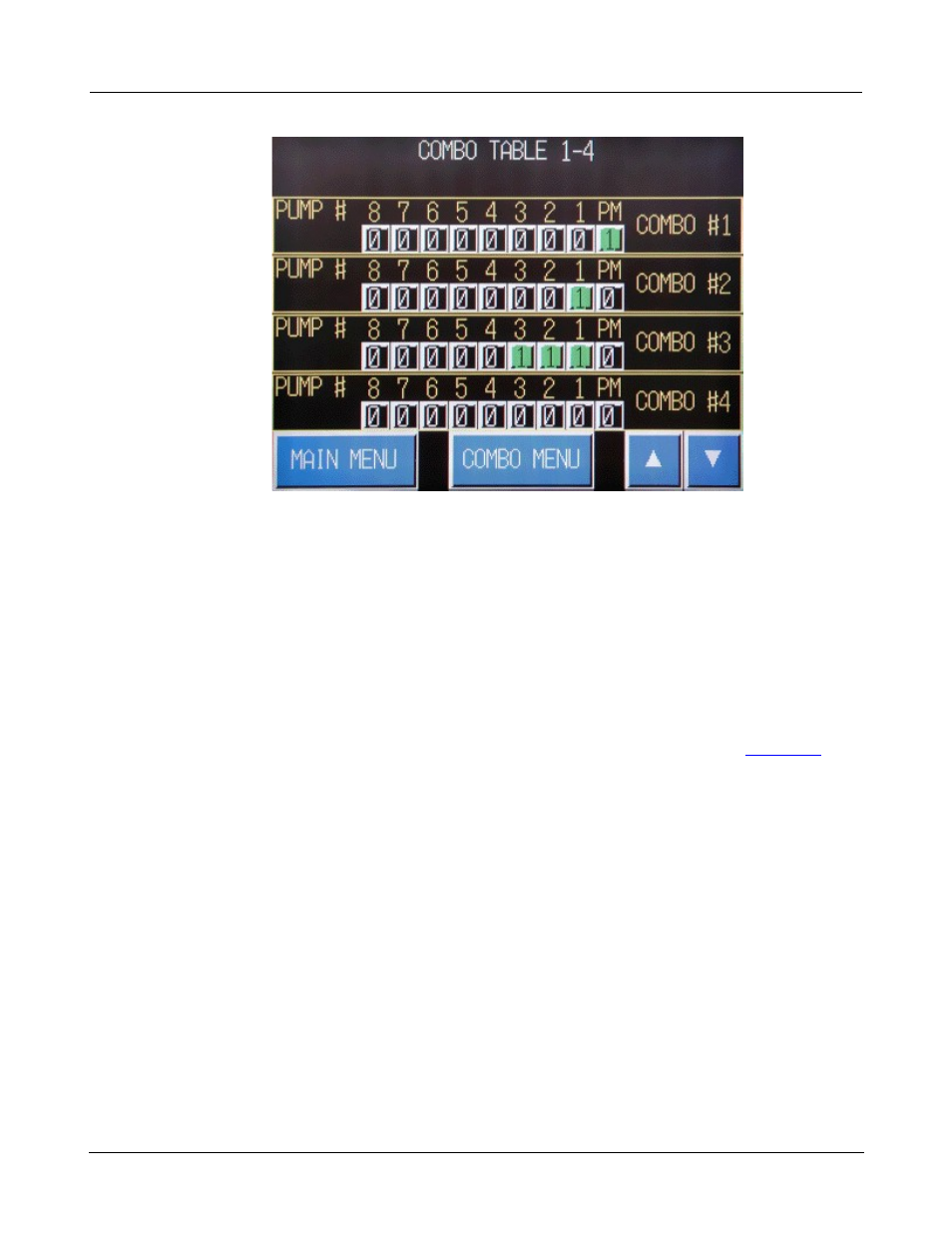

The Combo Table is actually a grid with the Combo numbers (Combo #1 to Combo #4) shown on the
right side and the pump numbers (PM and 1-8) shown on the top. The white boxes below the pump
numbers are enabling bits that show if the pump is enabled or disabled. As shown on the screen
above, a one (1) indicates the pump is enabled and a zero (0) shows the pump is not enabled in the
combo group. Tap on the boxed number to enable or disable the pump number specified.
· Tap the value underneath a Pump # for a specific Combo number to change its state from a zero
(0) that disables it, to a one (1) enabling it. Note that the number one (1) is displayed in a green
block.
· To disable a pump from a combo, tap on the green one (1). The system toggles the number from
a one to a zero disabling the pump from the Combo.
· Optionally, press the Main Menu touch key to return to the Main Menu. (See also,
Main Menu
.)
· Optionally, press the Combo Menu key to display the Combo Menu.
· Press the down arrow (▼) to advance to page 2, Combo Table 5-8.
