Page 127

© 2013 Flowtronex
How Do I?
123
· Tap the value field and the calculator/keypad pops-over the screen. Edit or enter new values. (See
also,
Calculator/Keypad
.)
· Optionally, press the Main Menu touch key to return to the Main Menu. (See also,
Main Menu
.)

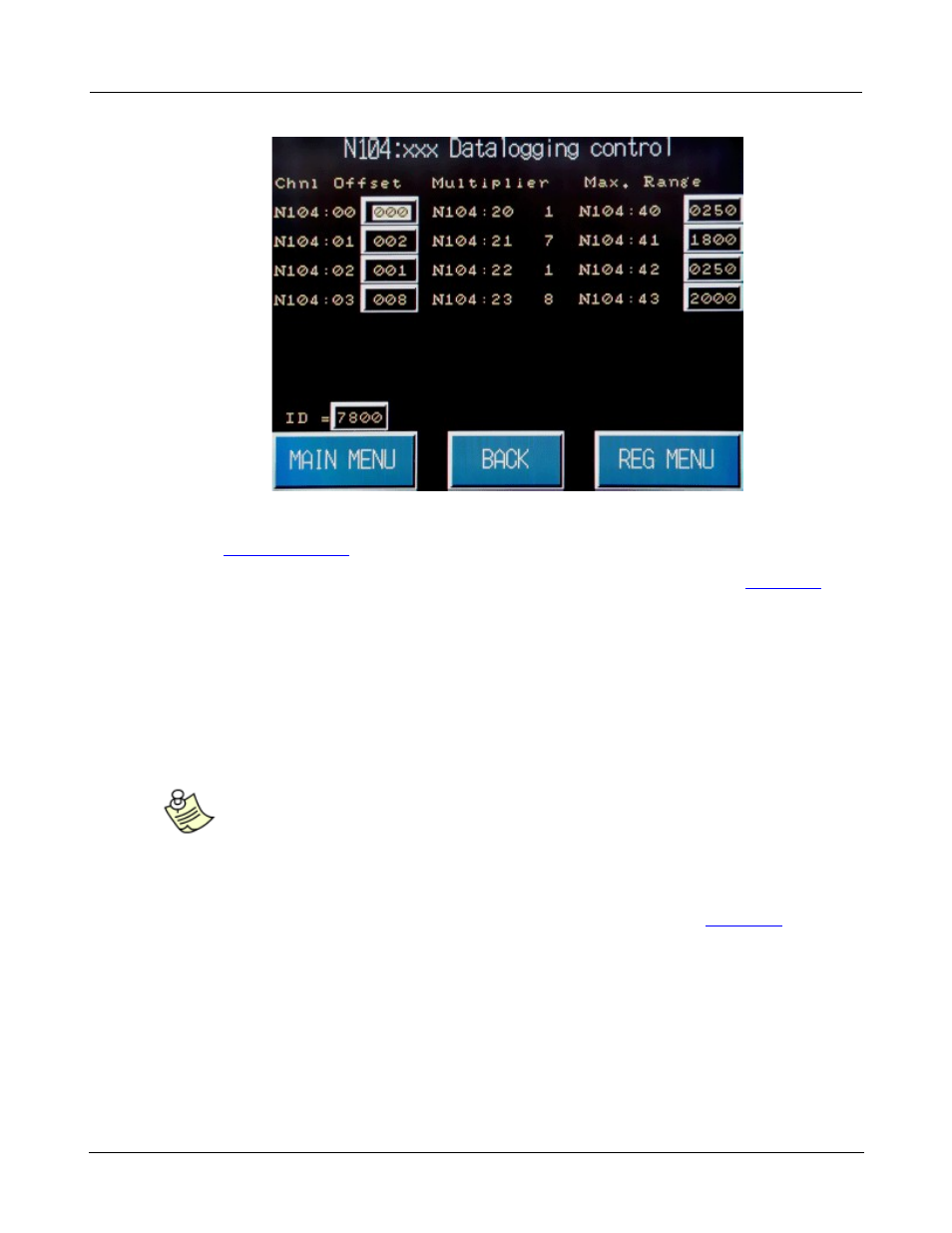

· Optionally, press Back to return to the N Register Access screen.
· Optionally, press Reg Menu to return to the Register Access screen.
2.22 Check My VFD and Jockey Pump Control Settings
The VFD Mode Control screen allows you to define how your PLC interacts with your VFD. It also
allows you to define whether a jockey pump is being used or not.
Note:
The screen is preset at the factory and rarely requires change. However, it may be
changed if there is a display retrofit. For example, replacement of a ACS 501 VFD
that uses a maximum speed signal with a newer VFD that uses a run signal would
require changes to be made on the VFD Mode Control screen.
Access the Register Access screen by pressing the Register Access key on the
Main Menu
. The
password protected B3:xx Mode, Max Speed & Jockey Cycle screen is accessed from the Register
Access screen by pressing the B Register Menu touch key.
