AP7173
1.5A LOW DROPOUT LINEAR REGULATOR WITH
PROGRAMMABLE SOFT-START
AP7173
Document number: DS31369 Rev. 8 - 2
13 of 15
www.diodes.com
April 2011
© Diodes Incorporated

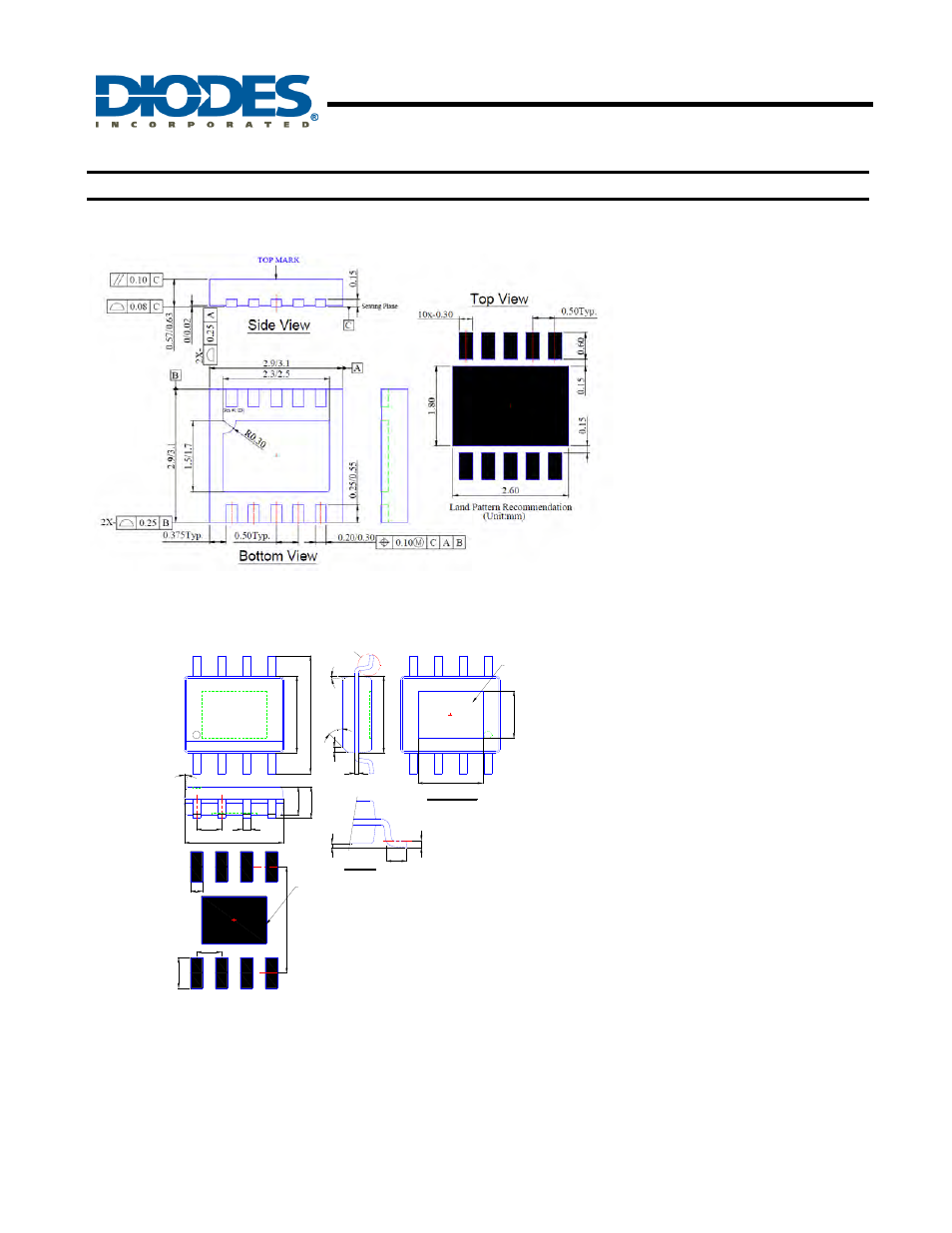

Package Outline Dimensions (All Dimensions in mm)
(1) Package Type: DFN3030-10
(2) Package Type: SO-8EP
1.27typ 0.3/0.5
7°~9°
4.85/4.95
3.
85/
3.
95
5.
90/
6.
10
0.15/0.25
7°~9°
3.
70
/4.
10
0.62/0.82
0/
0.
13 Gauge Plane 0.
254
Seating Plane
0.
35m
ax.
45°
Detail "A"
Detail "A"
1.
30
/1.
50
1.
75m
ax. Bottom View
2.4
R
ef
.
3.3Ref.
Exposed pad
8x-0.60
Land Pattem Recommendation
(Unit:mm)
Exposed pad
1
1
1
5.
4
8x
-1.
55
6x-1.27
