AP65550

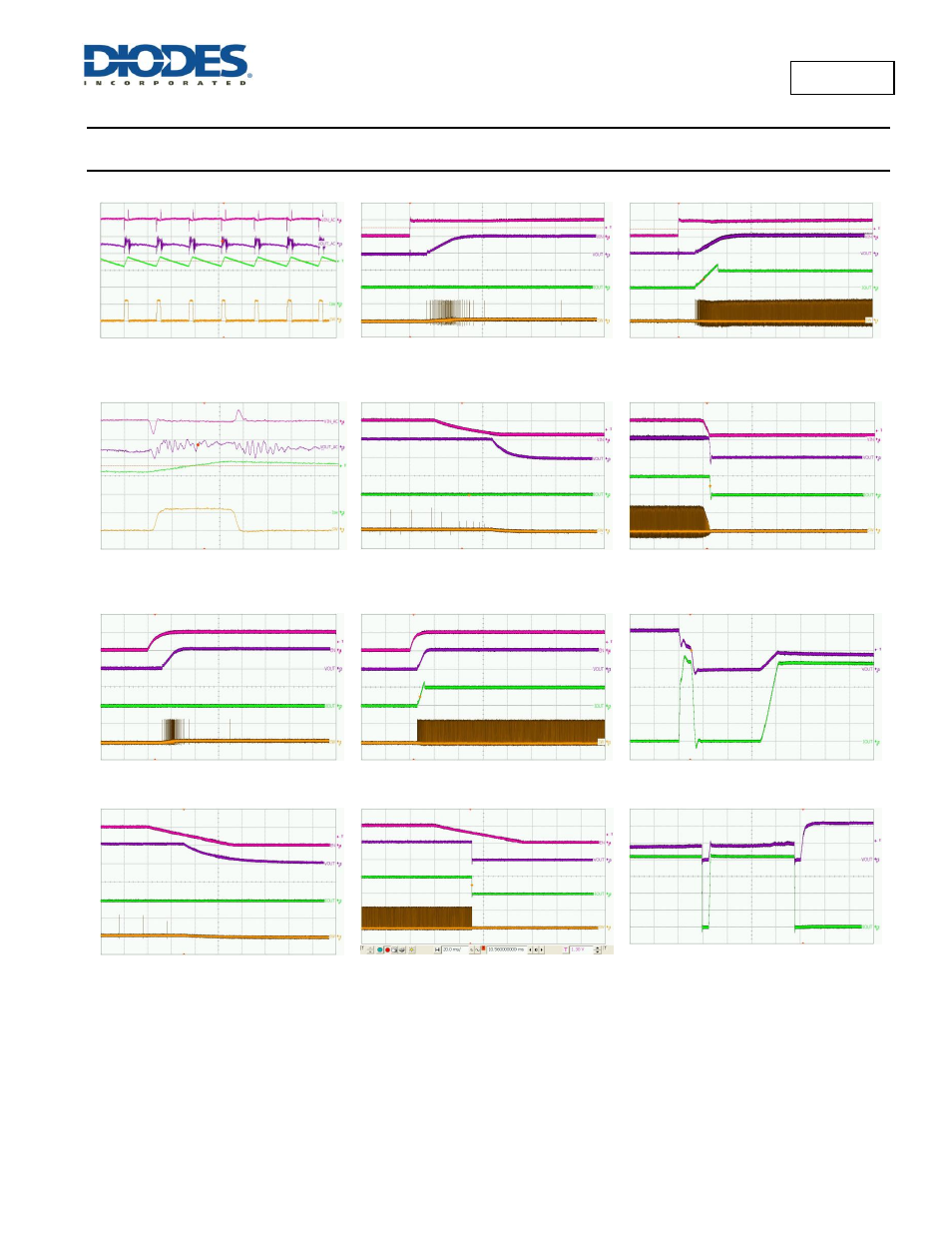

Typical Performance Characteristics
(cont.)
(@T
A
= +25°C, V
IN
= 12V, V
OUT
= 1.05V, L = 1.5µH, C1 = 20µF, C2 = 44µF, unless otherwise specified.)
Steady State Test 5A
Time-1µs/div
Startup Through V IN No Load
Time-500µs/div
Startup Through V IN 5A Load
Time-500µs/div
Steady State Test 5A
Time-50ns/div
Shutdown Through V IN No load
Time-50ms/div
Shutdown Through V IN 5A Load
Time-50ms/div
Startup Through V EN No Load
Time-1ms/div
Startup Through V EN 5A Load
Time-2ms/div
Short Circuit Test
Time-100µs/div
Shutdown Through V EN No load
Time-20ms/div
Shutdown Through V EN 5A Load
Time-20ms/div
Short Circuit Recovery
Time-1ms/div
VIN (12V/DIV)
VOUT (1V/DIV)
IOUT (1A/DIV)
SW (10V/DIV)
VIN (12V/DIV)
VOUT (1V/DIV)
IOUT (5A/DIV)
SW (10V/DIV)
VIN (12V/DIV)
VOUT (1V/DIV)
IOUT (5A/DIV)
SW (10V/DIV)
VIN (12V/DIV)
VOUT (1V/DIV)
IOUT (1A/DIV)
SW (10V/DIV)
VEN (3V/DIV)
VOUT (1V/DIV)
IOUT (1A/DIV)
SW (10V/DIV)
VEN (3V/DIV)
VOUT (1V/DIV)
IOUT (5A/DIV)
SW (10V/DIV)
VEN (3V/DIV)
VOUT (1V/DIV)
IOUT (5A/DIV)
SW (10V/DIV)
VEN (3V/DIV)
VOUT (1V/DIV)
IOUT (1A/DIV)
SW (10V/DIV)
VOUT (500mV/DIV)
IOUT (2A/DIV)
VOUT (500mV/DIV)
IOUT (2A/DIV)
VIN_AC (1V/DIV)
VOUT_AC (50mV/DIV)
ISW (2A/DIV)
SW (10V/DIV)
VIN_AC (1V/DIV)
VOUT_AC (50mV/DIV)
ISW (2A/DIV)
SW (10V/DIV)
