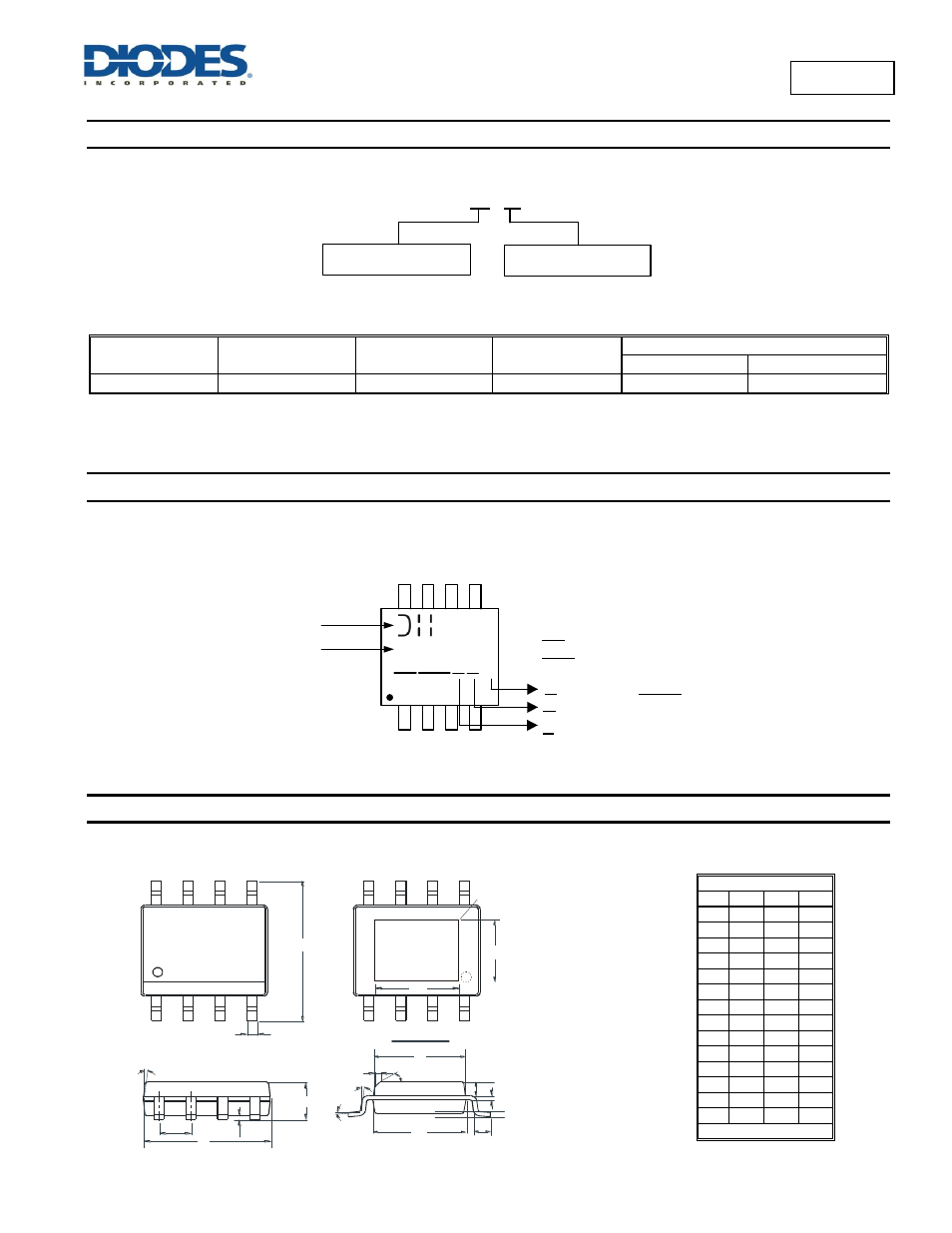

AP65550
Ordering Information
AP65550 XX - 13
Packing
Package
SP : SO-8EP
13 : Tape & Reel
Part Number
Package Code
Part Marking
Identification Code
Tape and Reel
Quantity
Part Number Suffix
AP65550SP-13
SP
SO-8EP
—
2500
-13
Note:
8. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
(1) SO-8EP
( Top View )
AP65550
YY WW X
Logo
Part No
5
8
4
1
E
WW : Week : 01~52; 52
YY : Year : 08, 09,10~
G : Green
represents 52 and 53 week
E : SO-8EP Blank SO-8
X
X : Internal Code
Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
(1) SO-8EP
SO-8EP (SOP-8L-EP)
Dim Min Max Typ
A
1.40 1.50 1.45
A1 0.00 0.13
-
b
0.30 0.50 0.40
C
0.15 0.25 0.20
D
4.85 4.95 4.90
E
3.80 3.90 3.85
E0 3.85 3.95 3.90
E1 5.90 6.10 6.00
e
-
-
1.27
F
2.75 3.35 3.05
H
2.11 2.71 2.41
L
0.62 0.82 0.72
N
-
-
0.35
Q
0.60 0.70 0.65
All Dimensions in mm
Gauge Plane
Seating Plane
E1
E
N
e
b
A
45
°
E0
H
F
Exposed Pad
Bottom View
L
Q
C
7
°
4° ± 3°
9° (All sides)
A1
D
1
4
8
5
