ZXLD1371
ZXLD1371
Document number: DS35436 Rev. 1 - 2
41 of 42
February 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
Ordering Information
Device (Note 19)
Packaging
Status
Part Marking
Reel
Quantity
Tape Width
Reel
Size
ZXLD1371EST16TC TSSOP-16EP Preview
ZXLD
1371
YYWW
2500 16mm
13”
ZXLD1371QESTTC TSSOP-16EP Preview
ZXLD
1371
YYWW
2500 16mm
13”
Note:
19. For Automotive grade with AEC-Q100 qualification the ZXLD1371QESTTC should be ordered.
Where YY is last two digits of year and WW is two digit week number

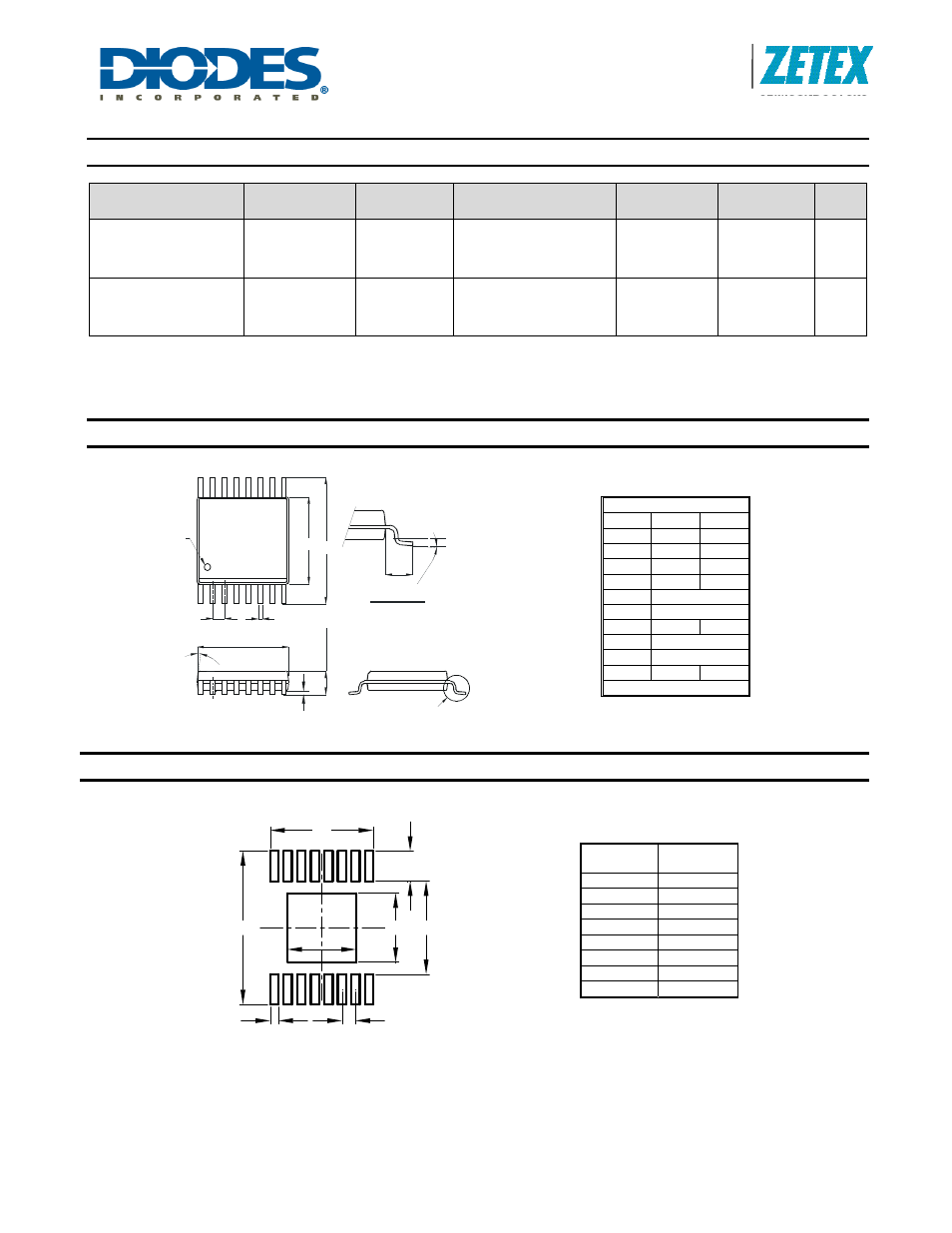

Package Outline Dimensions
(All Dimensions in mm)
Suggested Pad Layout
TSSOP-16EP
Dim Min Max
A
4.9 5.10
B
4.30 4.50
C
⎯
1.2
D
0.8 1.05
F
1.00 Ref.
G
0.65 Ref.
K
0.19 0.30
L
6.40 Ref.
a1
7°
a2
0° 8°
All Dimensions in mm
Dimensions
Value
(in mm)
C
0.650
X
0.450
X1
3.290
X2
5.000
Y
1.450
Y1
3.290
Y2
4.450
Y3
7.350
A
B L
K
G
C
D
F
a1
a2
Pin 1 Indent
Detail “A”
gauge plane
seating plane
Detail “A”
Y2
Y 16x
Y3
C
Y1
X2
X1
X 16x
