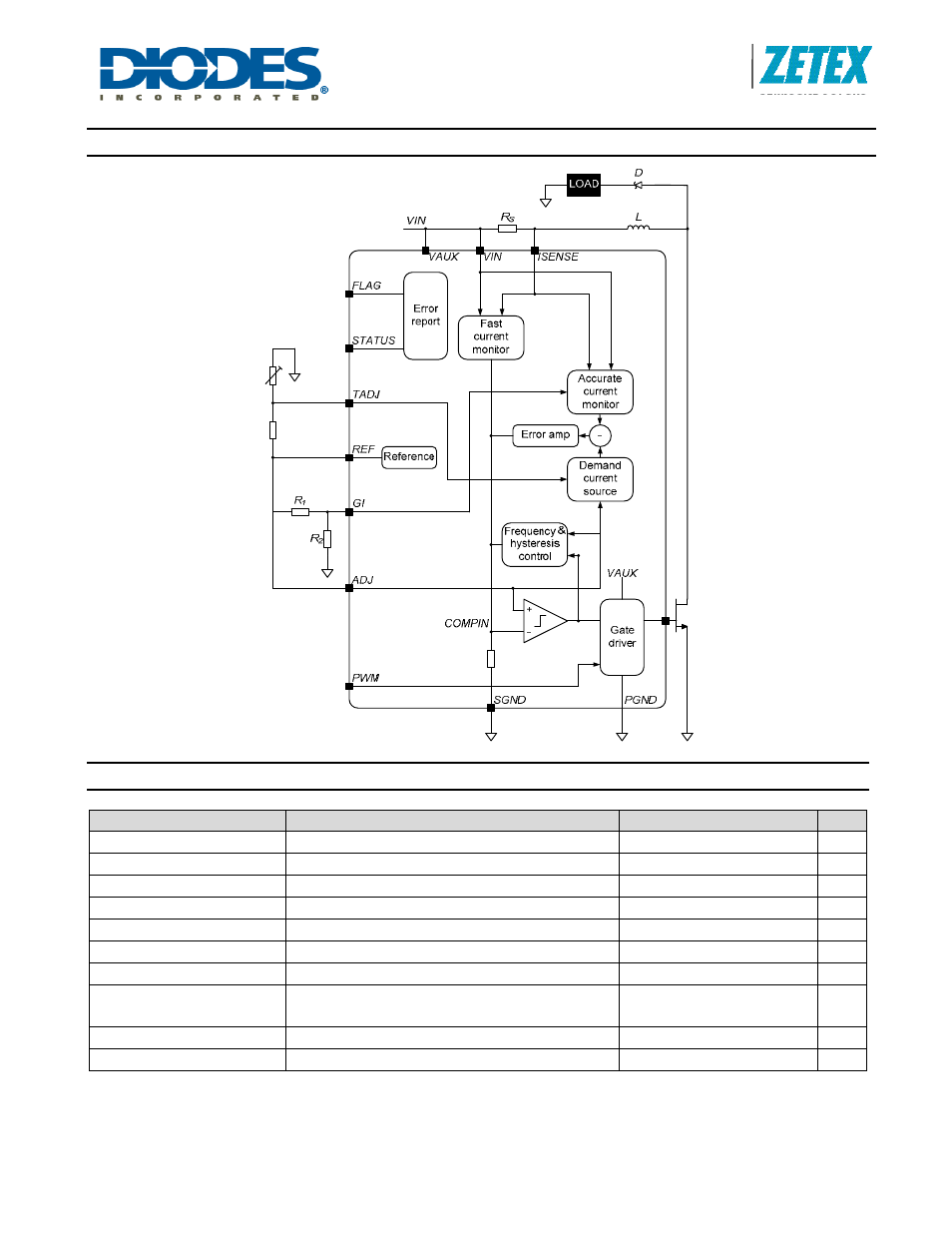

Functional Block Diagram
Absolute Maximum Ratings (Voltages to GND Unless Otherwise Stated) (Note 3)
Symbol Parameter Rating Unit
V
IN
Input supply voltage -0.3 to 65 V
V
AUX
Auxiliary supply voltage -0.3 to 65 V
V
ISM
Current monitor input relative to GND -0.3 to 65 V
V
SENSE
Current monitor sense voltage (V
IN
-V
ISM
) -0.3 to 5 V
V
GATE
Gate driver output voltage -0.3 to 20 V
I
GATE
Gate driver continuous output current 18 mA
V
FLAG
Flag output voltage -0.3 to 40 V
V
PWM
, V
ADJ
, V
TADJ
, V
GI
,
V
PWM
Other input pins -0.3 to 5.5 V
T
J
Maximum junction temperature 150 °C
T
ST
Storage temperature -55 to 150 °C
Stresses greater than the 'Absolute Maximum Ratings' specified above, may cause permanent damage to the device. These are stress ratings only; functional
operation of the device at these or any other conditions exceeding those indicated in this specification is not implied. Device reliability may be affected by
exposure to absolute maximum rating conditions for extended periods of time.
Semiconductor devices are ESD sensitive and may be damaged by exposure to ESD events. Suitable ESD precautions should be taken when handling and
transporting these devices.
