P ramming Manual Programming Manual
Overview of screen layout
Name Sub-menu Description
Save as… Save as another ISN number
Create Sending List
 Save all the custom graphics as a “lst” file.
(Note: the maximum no. of user-defined graphics is 8)
 Send the graphic list into the sign. (Note: the maximum no.
of user-defined graphics can be installed into the sign is 8,
Graphic A Graphic H
File
Exit Close the graphic editing window
Create a new lattice Create another graphic
Editing old lattice Open an old lattice for the editing
Lattice
Clear current lattice Clear the current graphic
4.3.2: Remote control operation
User can make his own graphic by hand-held remote. Press key GRA to choose the
appropriate option and after select specified memory location you want , the display only with a
dot of cursor (when enter the MAKE GRAPH function).To edit the graph, user can press key G ,
H , L , P , O , N , J , F
to move the cursor onto specified arrows directions, I . e . N, NE, E, SE,
S, SW, W, NW respectively.
F G H
J K L
N O P

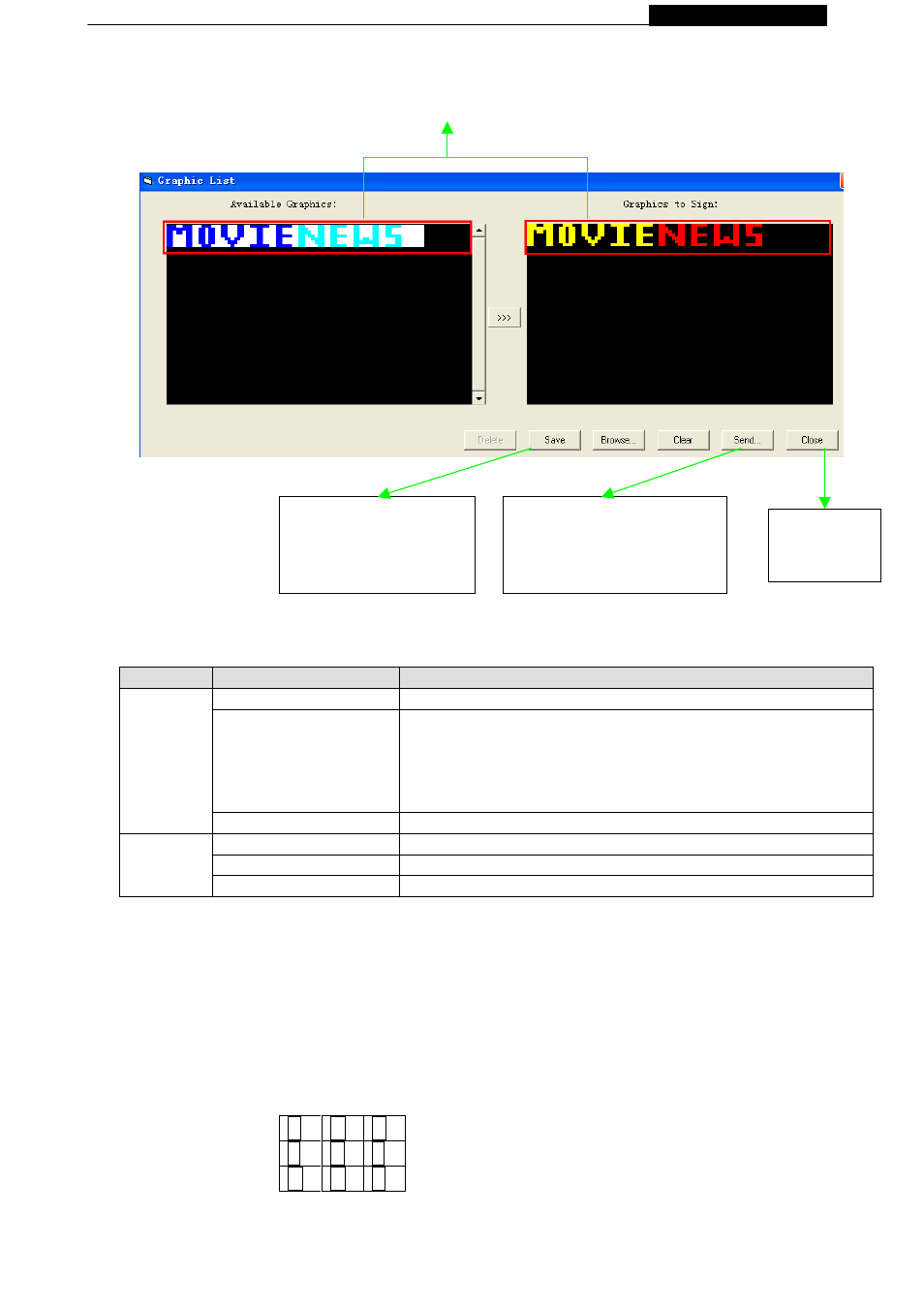

(8) Double click the graphic to add into the current graphic list
Note: The maximum no. of user-defined graphics can be installed
in the sign is 8, from Graphic A- Graphic H.
(9) Click Save to store
the current graphic list as
“list”file.
(10) Click Send… to
upload the current
graphic list into the sign
(11) Close
the window
↖ ↑ ↗
← ● →
↙ ↓ ↘
－
