APPENDIX B
LIST OF SPARE PARTS
The parts authorized in the below list of spare parts, common to all versions
of the LAD, are required for operator maintenance. This list includes parts
that must be removed in order to replace any authorized parts.
The ITEM NO. column in Table B-1 indicates the number used to identify
items in Figure B-1.
The PART NO. column indicates the primary number used by the manufac-
turer to identify an item.
TABLE B-1. SPARE PARTS LIST
ITEM NO. DESCRIPTION PART NO.
1 Battery Cap OH-2.01.35.000
2 Battery Adapter OH-2.01.35.002
3 Laser Output Aperture Cap PL-03.01.00.015
4 Retaining Loop MH-01.01.05.003
5 Adjustment Screw Cap PL-03.01.00.006
6 Safety Lock Screw DIN912 M3x4
7 Retaining Strap PL-03.01.00.014
8 Switch PL-03.01.00.017
9 ON Button Pusher PL-03.01.50.002
10 ON Button PL-03.01.00.013
11 Picatinny/Weaver Rail PL-03.01.00.016
1
4
7
2
5
5
8
3
3
6
9
10

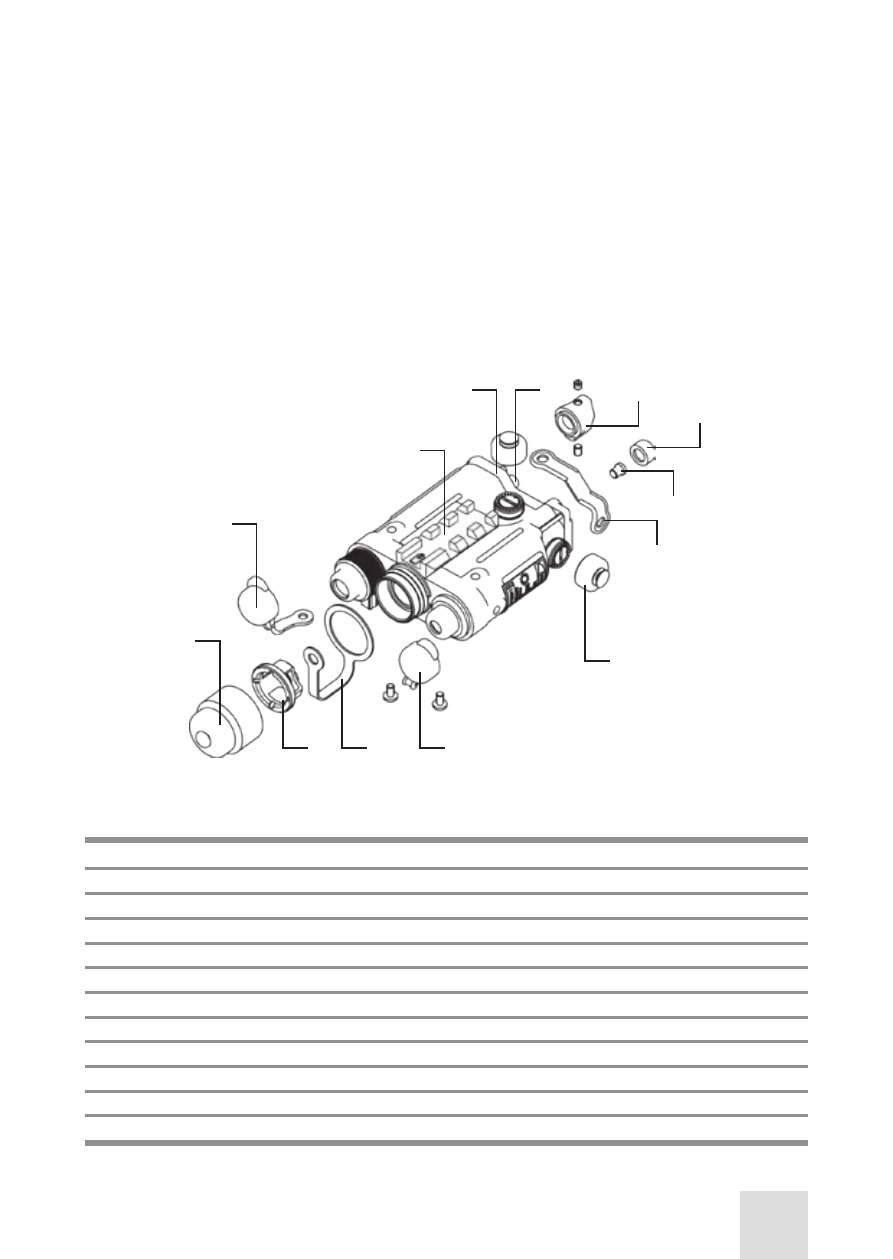

FIGURE B-1. SPARE PARTS
11
