OPERATING INSTRUCTIONS
3.1. INSTALLATION AND MOUNTING
3.1.1 BATTERY INSTALLATION
CAUTION:
Verify that the device is OFF before installing a battery.
Install the battery as follows (refer to Figure 3-1):
1. Unscrew the battery cap (A).
2. Check the position of the adapter (B) (only Drakos and Drakos-II). See
Figure 3-2 for the correct positioning of the threaded adapter, which
changes depending on the battery being installed. If necessary, change
the adapter position in the cap.
3. Install the battery (C) into the battery compartment (D). Align the battery
with the battery symbols (E).
4. Replace the battery cap (A).
A
b
C
D
E

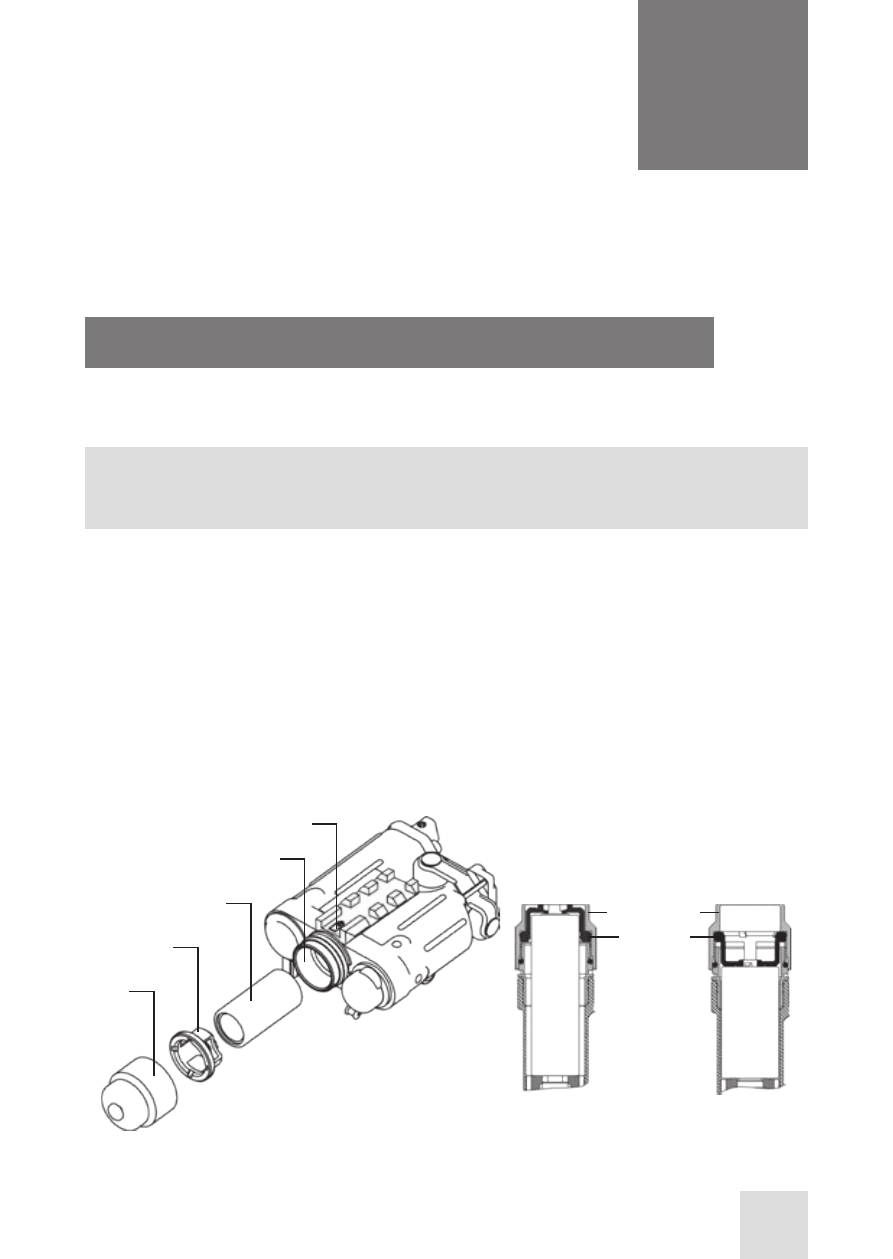

FIGURE 3-1.
BATTERY INSTALLATION
FIGURE 3-2.
POSITIONS OF THE ADAPTER
IN THE BATTERY CAP
bATTERy CAP
ADAPTER
