3.2. CONTROLS
The LAD controls are shown in Figure 3-7 and defined in Table 3-1. The ITEM
NO. column indicates the number used to identify items in Figure 3-7.
TABLE 3-1. CONTROLS
ITEM
NO.
CONTROL FUNCTION
1 ON Button
Activates the laser(s) after the required operation
mode has been selected with the switch.
When the LAD is activated, this activates standby
mode.
2
Mode Select
Switch
Switches between the four defined operation modes:
“Low 1”, “Low 2”, “Hi 1”, and “Hi 2”.
For operating parameters, see Table 3-2.
When turned OFF, deactivates the LAD as shown in
Figure 3-7.
3
Safety Lock
Screw
(with red-
colored head)
Prevents the mode select switch from being inad-
vertently turned to high-power positions (“Hi 1” and
“Hi 2”).
NOTE:
The both “Hi 1” and “Hi 2” positions can only be
entered when the switch is unlocked. You will
need to unscrew the lock screw to operate with
high-power levels.
1 2 3
4
5

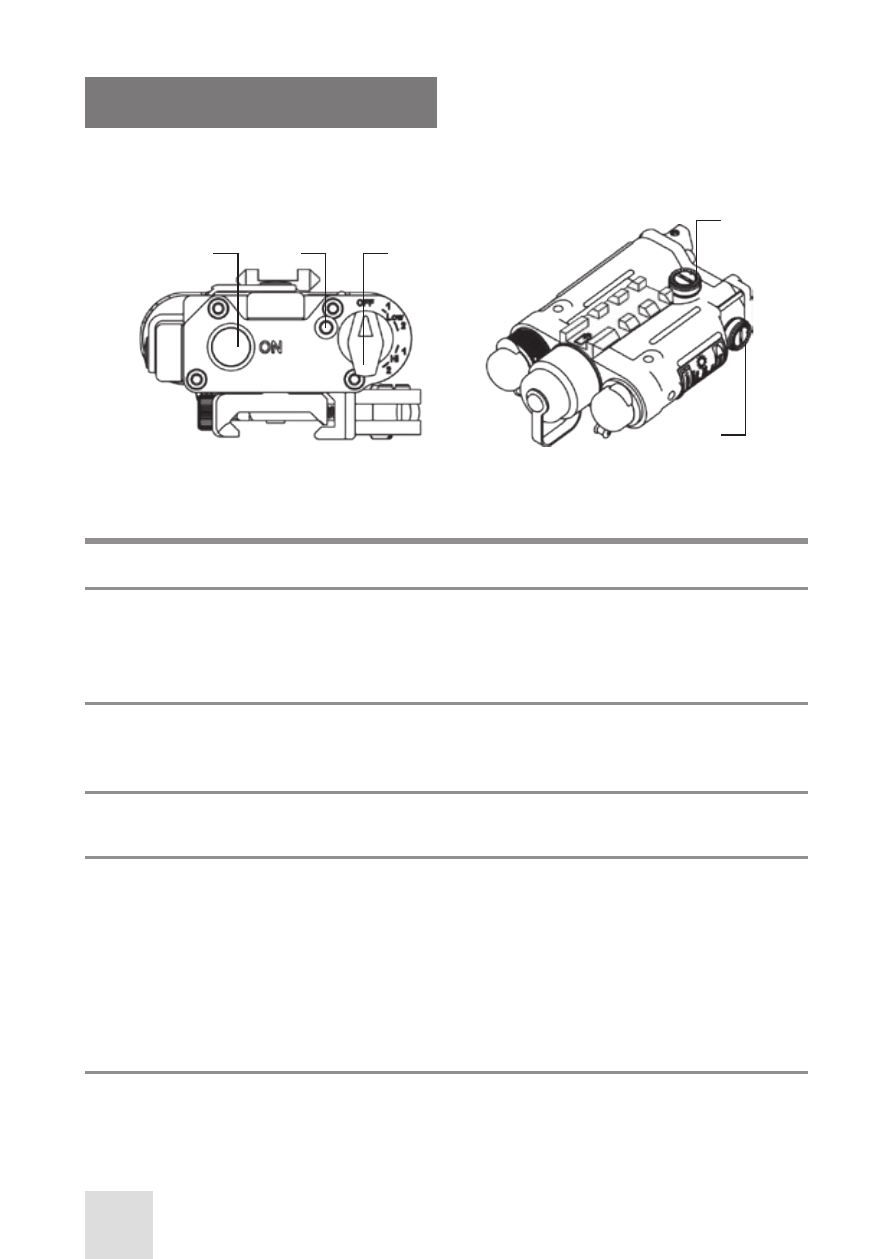

FIGURE 3-7. CONTROLS
