ASUS P5N7A-VM 1-35

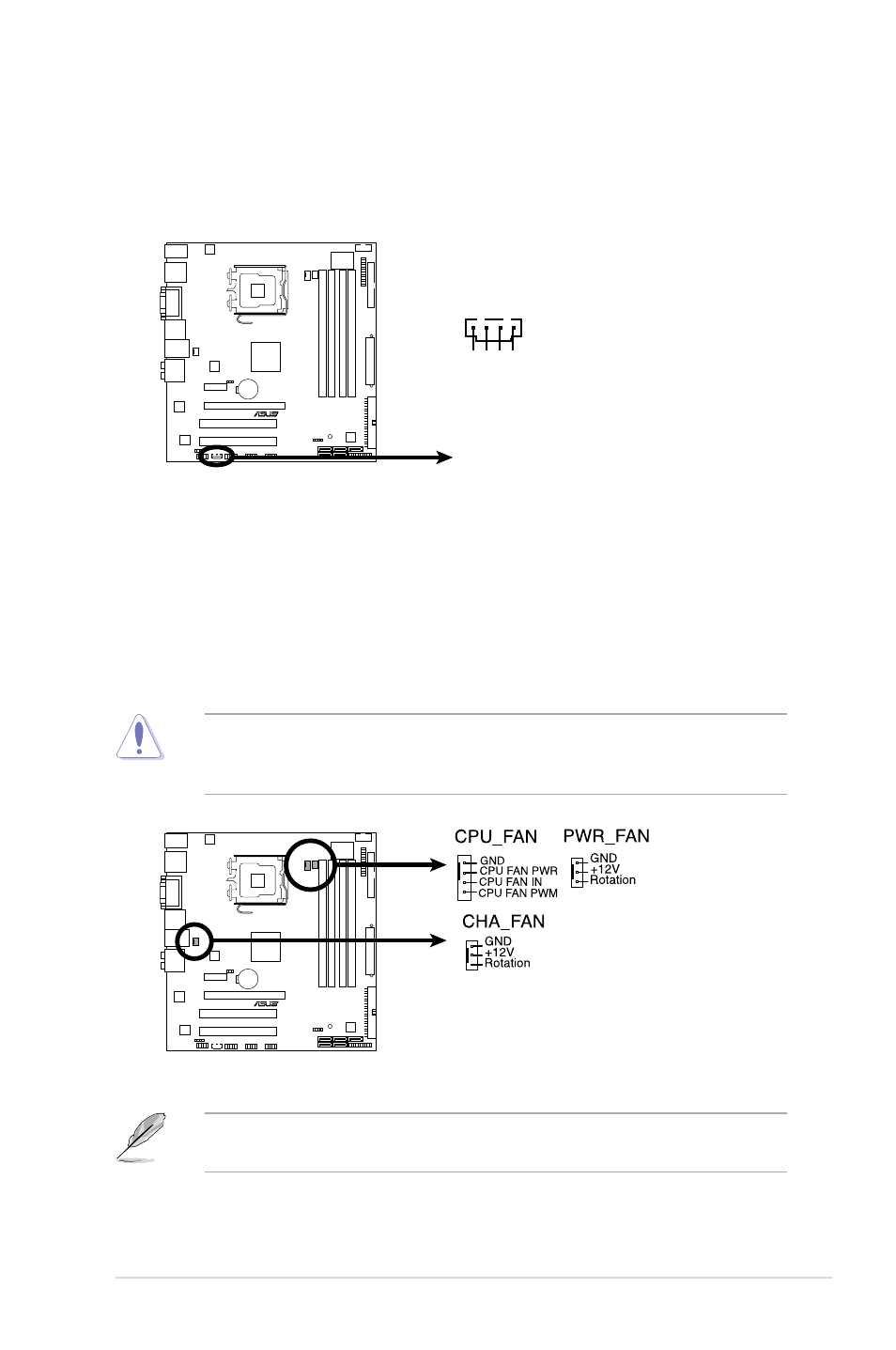

8. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
9. CPU, chassis, and power fan connectors (4-pin CPU_FAN, 3-pin
CHA_FAN, 3-pin PWR_FAN)
The fan connectors support cooling fans of 350 mA~2000 mA (24 W max.)
or a total of 1 A~7 A (84 W max.) at +12V. Connect the fan cables to the fan
connectors on the motherboard, ensuring that the black wire of each cable
matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air
flow inside the system may damage the motherboard components. These are
not jumpers! Do not place jumper caps on the fan connectors!
The CPU fan and the chassis fan connectors support the ASUS Q-FAN 2
feature.
P5N7A-VM
P5N7A-VM Internal Audio Connector
CD
(black)
Right
Audio Channel
Lef
tA
udio Channel
Ground Ground
P5N7A-VM
P5N7A-VM CPU Fan Connector
