1-30

Chapter 1: Product Introduction

Playback of HD DVD and Blu-Ray Discs

The speed and bandwidth of the CPU/Memory, DVD player, and drivers

will affect the playback quality. Using the CPU/Memory of higher speed and

bandwidth with the higher-version DVD player and drivers will upgrade the

playback quality.

16. DisplayPort. This port connects a display monitor or a home-theater system.

1.10.2 Internal connectors

1. Floppy disk drive connector (34-1 pin FLOPPY)

This connector is for the floppy disk drive (FDD) signal cable. Insert one

end of the cable to this connector, then connect the other end to the signal

connector at the back of the floppy disk drive.

17. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 2.0 devices.

• Due to chipset limitation, DisplayPort on this motherboard only supports

video signals.

• DisplayPort does not support HDMI/DVI on this motherboard.

P5N7A-VM

P5N7A-VM

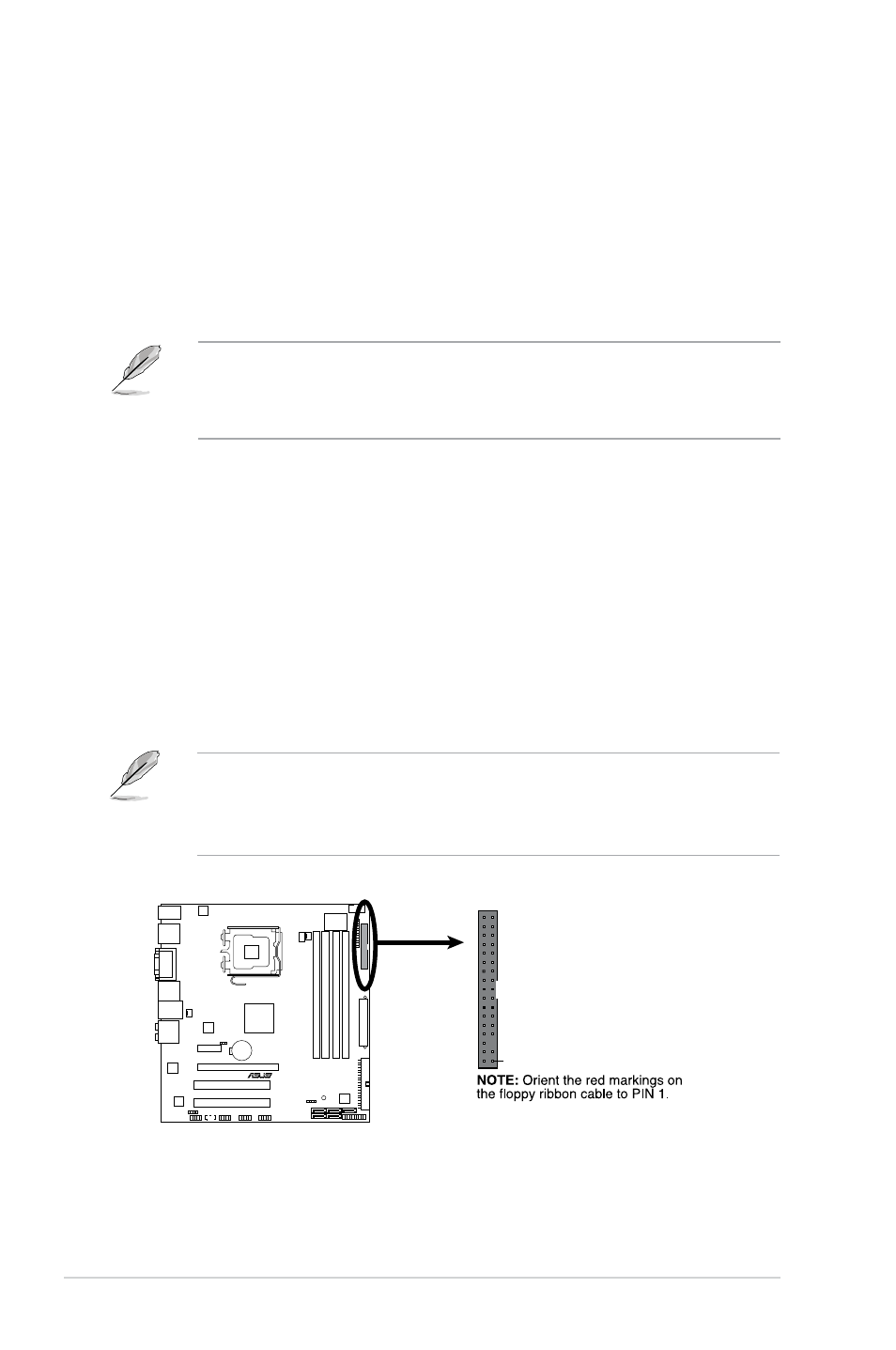

Floppy Disk Drive Connector

PI

N

1

FLOPPY

• Pin 5 on the connector is removed to prevent incorrect cable connection

when using an FDD cable with a covered Pin 5.

• The floppy disk drive cable is purchased separately.
