1-28

Chapter 1: Product Introduction

1.10 Connectors

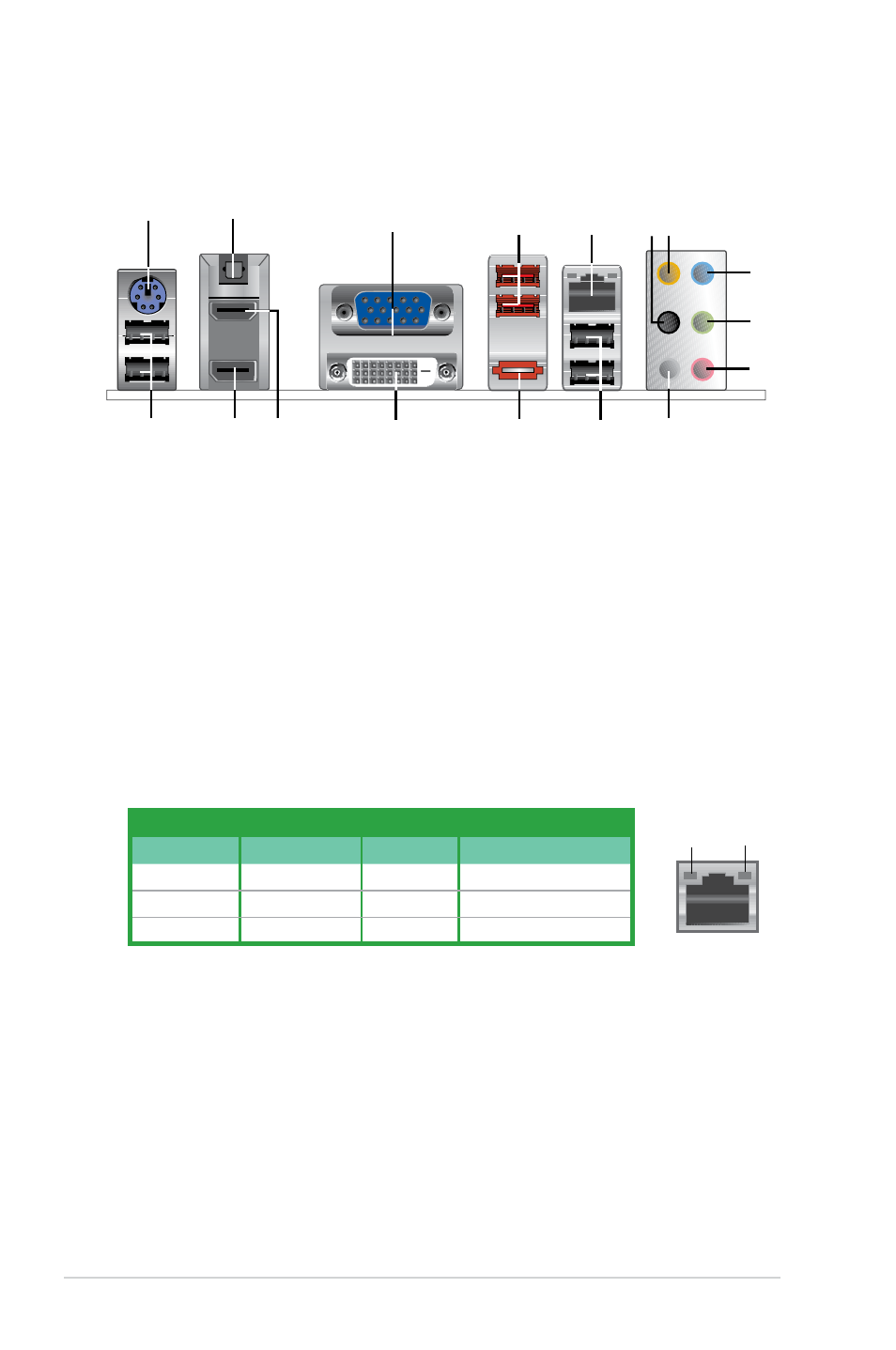

1.10.1 Rear panel connectors

LAN port LED indications

SPEED

LED

ACT/LINK

LED

LAN port

Activity/Link LED

Speed LED

Status

Description

Status

Description

OFF

No link

OFF

10 Mbps connection

ORANGE

Linked

ORANGE 100 Mbps connection

BLINKING

Data activity

GREEN

1 Gbps connection

1

2

5

4

3

12

14

16

6

8

7

9

10

11

17

13

15

6. Rear Speaker Out port (black). This port connects the rear speakers in a

4-channel, 6-channel, or 8-channel audio configuration.

7. Center/Subwoofer port (orange). This port connects the center/subwoofer

speakers.

8. Line In port (light blue). This port connects the tape, CD, DVD player, or

other audio sources.

9. Line Out port (lime). This port connects a headphone or a speaker. In

4-channel, 6-channel, and 8-channel configuration, the function of this port

becomes Front Speaker Out.

1. PS/2 keyboard/mouse combo port (purple). This port is for a PS/2

keyboard/mouse.

2. Optical S/PDIF Out port. This port connects an external audio output device

via an optical S/PDIF cable.

3. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor

or other VGA-compatible devices.

4. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 2.0 devices.

5. LAN (RJ-45) port. Supported by Gigabit LAN controller, this port allows

Gigabit connection to a Local Area Network (LAN) through a network hub.

Refer to the table below for the LAN port LED indications.
