1-34

Chapter 1: Product Introduction

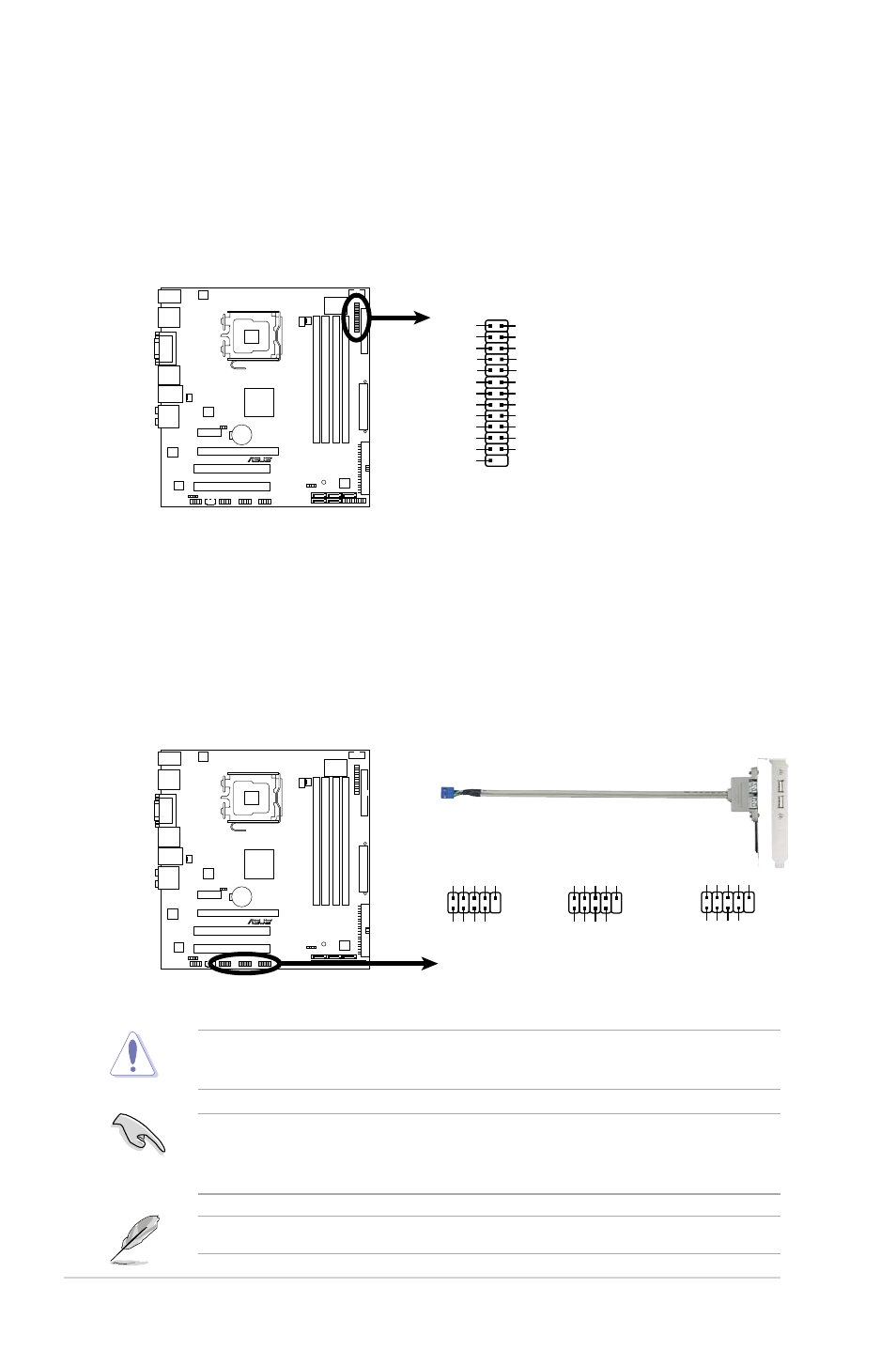

6. LPT connector (26-1 pin LPT)

The LPT (Line Printing Terminal) connector supports devices such as a

printer. LPT standardizes as IEEE 1394, which is the parallel port interface on

IBM PC-compatible computers.

7. USB connectors (10-1 pin USB78, USB 910, USB1112)

These connectors are for USB 2.0 ports. Connect the USB module cable

to any of these connectors, then install the module to a slot opening at the

back of the system chassis. These USB connectors comply with USB 2.0

specification that supports up to 480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the

motherboard!

You can connect the front panel USB cable to the ASUS Q-Connector (USB,

blue) first, and then install the Q-Connector (USB) to the USB connector

onboard if your chassis supports front panel USB ports.

The USB module cable is purchased separately.

P5N7A-VM

P5N7A-VM USB 2.0 Connectors

USB78

USB+5V USB_P8

-

USB_P8

+

GN

D

NC

USB+5V USB_P7

-

USB_P7

+

GN

D

1

USB910

USB+5V USB_P10- USB_P10+ GN

D

NC

USB+5V USB_P9

-

USB_P9

+

GN

D

1

USB1112

USB+5V USB_P12- USB_P12+ GN

D

NC

USB+5V USB_P1

1-

USB_P1

1+

GND

1

P5N7A-VM

P5N7A-VM Parallel Port Connector

LPT

STB#

AFD

PD0

ERR#

PD1

INIT#

PD2

SLIN#

PD3

GND

PD4

1

GND

PD7

PD6

PD5

GND

GND

GND

ACK#

GND

BUSY

PE

SLCT

GND

GND
