1-16

Chapter 1: Product Introduction

1.6.3

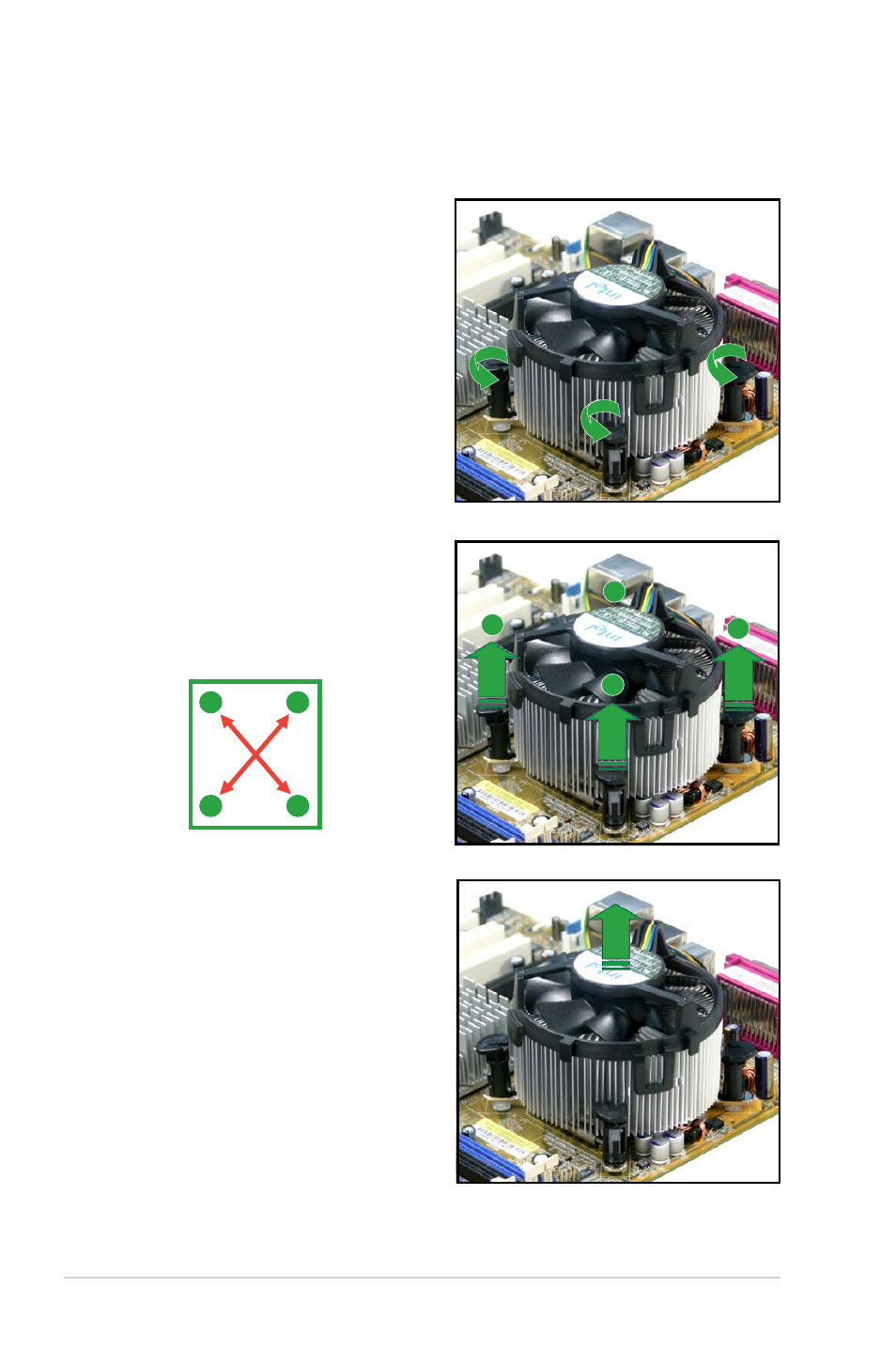

Uninstalling the CPU heatsink and fan

To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from

the connector on the motherboard.

2. Rotate each fastener

counterclockwise.

3. Pull up two fasteners at a time in

a diagonal sequence to disengage

the heatsink and fan assembly

from the motherboard.

A

A

B

B

B

B

A

A

4. Remove the heatsink and fan

assembly from the motherboard.
