ASUS P5E-VM HDMI 2-13
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
2.4 System memory
2.4.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.

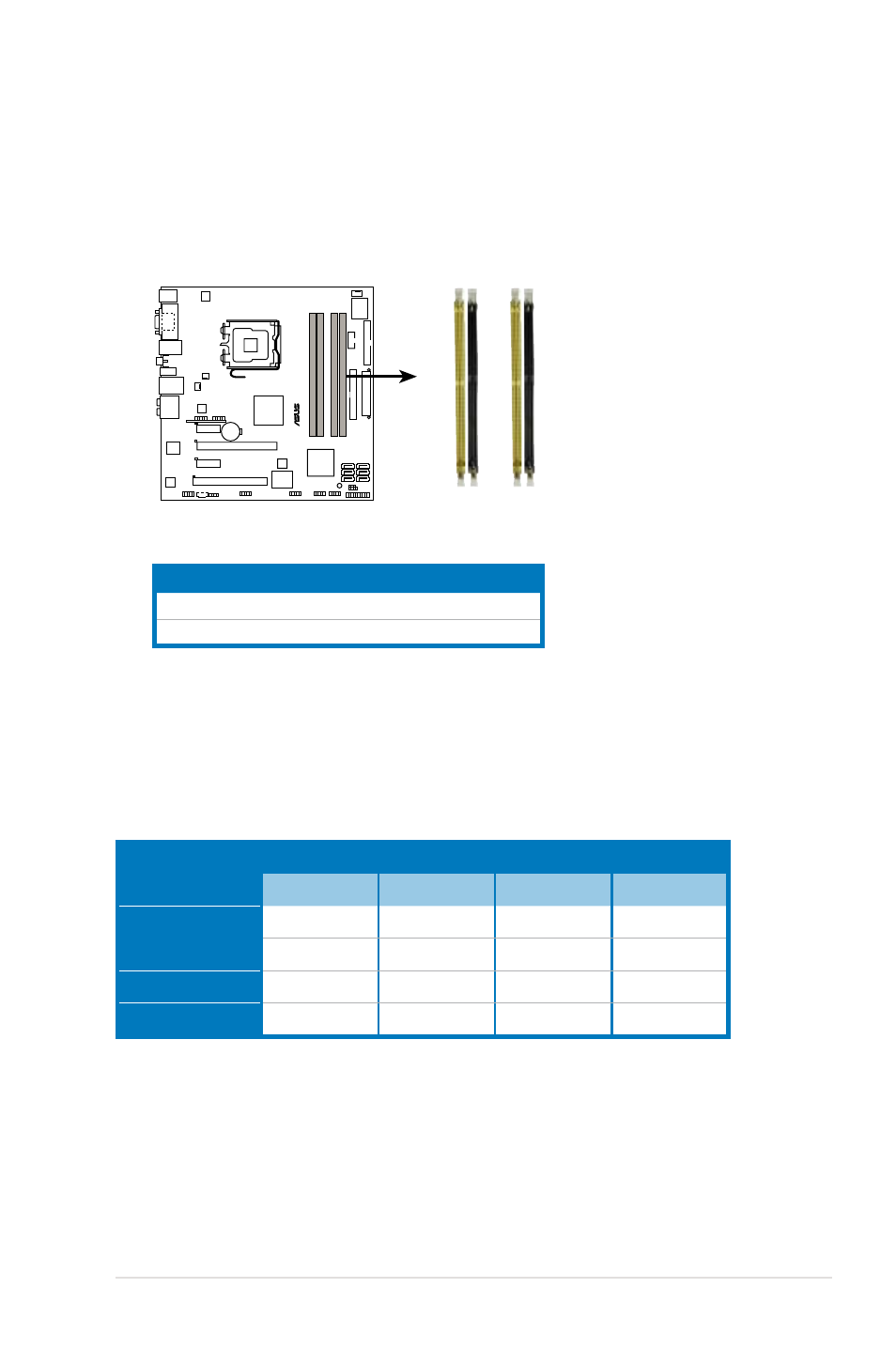

The figure illustrates the location of the DDR2 DIMM sockets:
P
5 E
-V
M
H
D
M
I
®
P5E-VM HDMI 240-pin DDR2 DIMM sockets
DIMM_A2 DIMM_A1 DIMM_B2 DIMM_B1
2.4.2 Memory configurations
You may install 256 MB, 512 MB, 1 GB, and 2 GB unbuffered non-ECC DDR2
DIMMs into the DIMM sockets.
Recommended Memory Configurations
Mode
Sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
Single-Channel
Populated — — —
— — Populated —
Dual-channel (1) Populated — Populated —
Dual-channel (2) Populated Populated Populated Populated
