ASUS P5E-VM HDMI 2-29

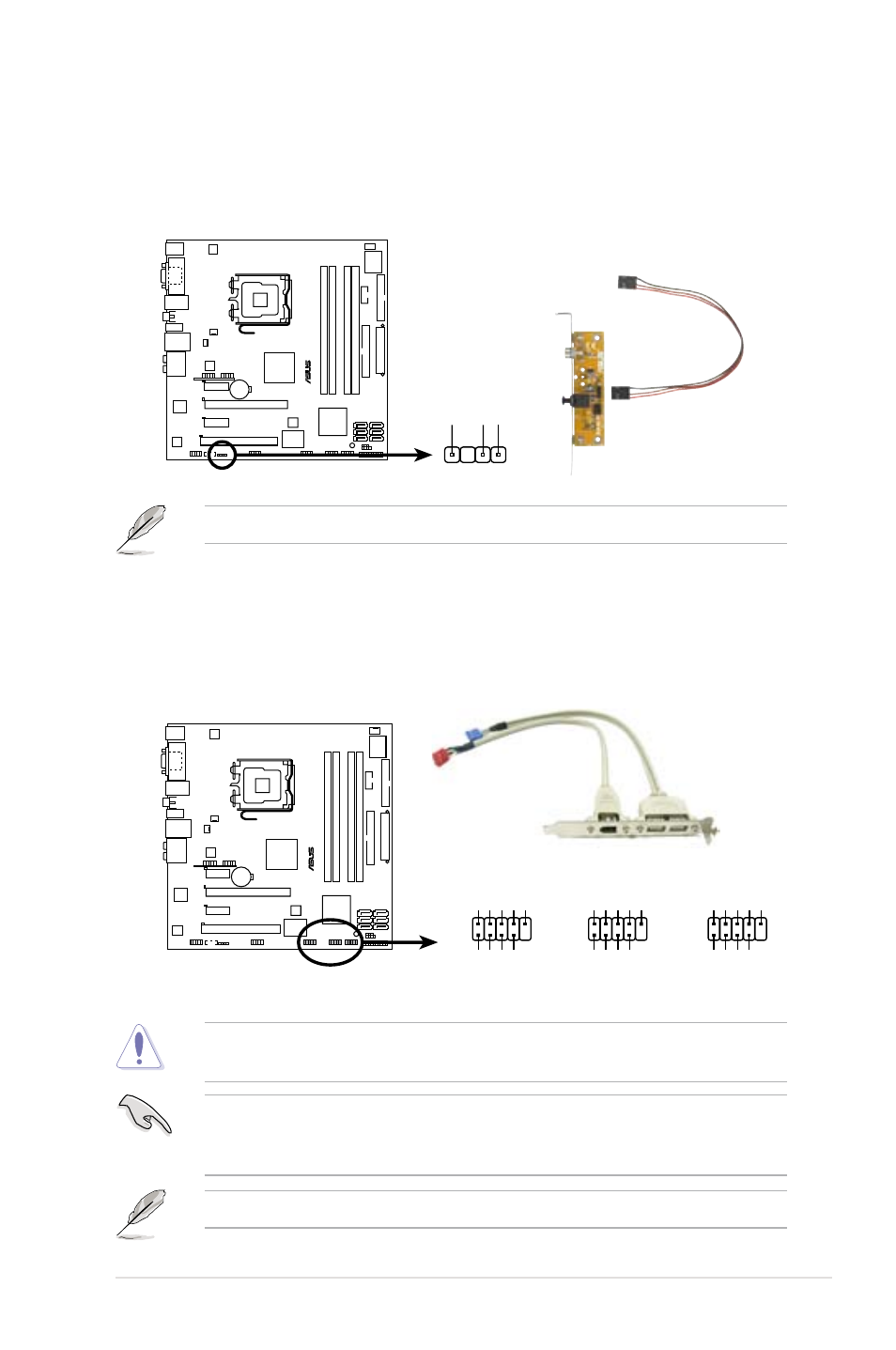

4. Digital audio connector (4-1 pin SPDIF_OUT) 4-1 pin SPDIF_OUT))
This connector is for an additional Sony/Philips Digital Interface (S/PDIF)
port(s). Connect the S/PDIF module cable to this connector, then install the
module to a slot opening at the back of the system chassis.
The S/PDIF Out module is purchased separately.
P
5
E
-V
M
H
D
M
I
®
P5E-VM HDMI Digital audio connector
+5V SPDIFOUT GND
SPDIF_OUT
5. USB connectors (10-1 pin USB78, USB 910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specification that supports up to 480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
P
5
E
-V
M
H
D
M
I
®
P5E-VM HDMI
USB 2.0 connectors
USB910
USB+5V USB_P10- USB_P10+ GND NC
USB+5V USB_P9- USB_P9+
GND
PIN1
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P1
1-
USB_P1
1+
GND
PIN1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
PIN1
USB1112
USB78
You can connect the front panel USB cable to the ASUS Q-Connector (USB,
blue) first, and then install the Q-Connector (USB) to the USB connector
onboard if your chassis supports front panel USB ports.
The USB module cable is purchased separately.
