ASUS P5E-VM HDMI 2-9
2.3.2 Installing the CPU heatsink and fan
The Intel ® LGA775 processor requires a specially designed heatsink and fan
assembly to ensure optimum thermal condition and performance.
• When you buy a boxed Intel ® processor, the package includes the CPU fan
and heatsink assembly. If you buy a CPU separately, make sure that you use
only Intel
® -certified multi-directional heatsink and fan.
• Your Intel ® LGA775 heatsink and fan assembly comes in a push-pin design
and requires no tool to install.
• If you purchased a separate CPU heatsink and fan assembly, make sure that
you have properly applied Thermal Interface Material to the CPU heatsink or
CPU before you install the heatsink and fan assembly.
Make sure that you have installed the motherboard to the chassis before you
install the CPU fan and heatsink assembly.
Fastener
Motherboard hole

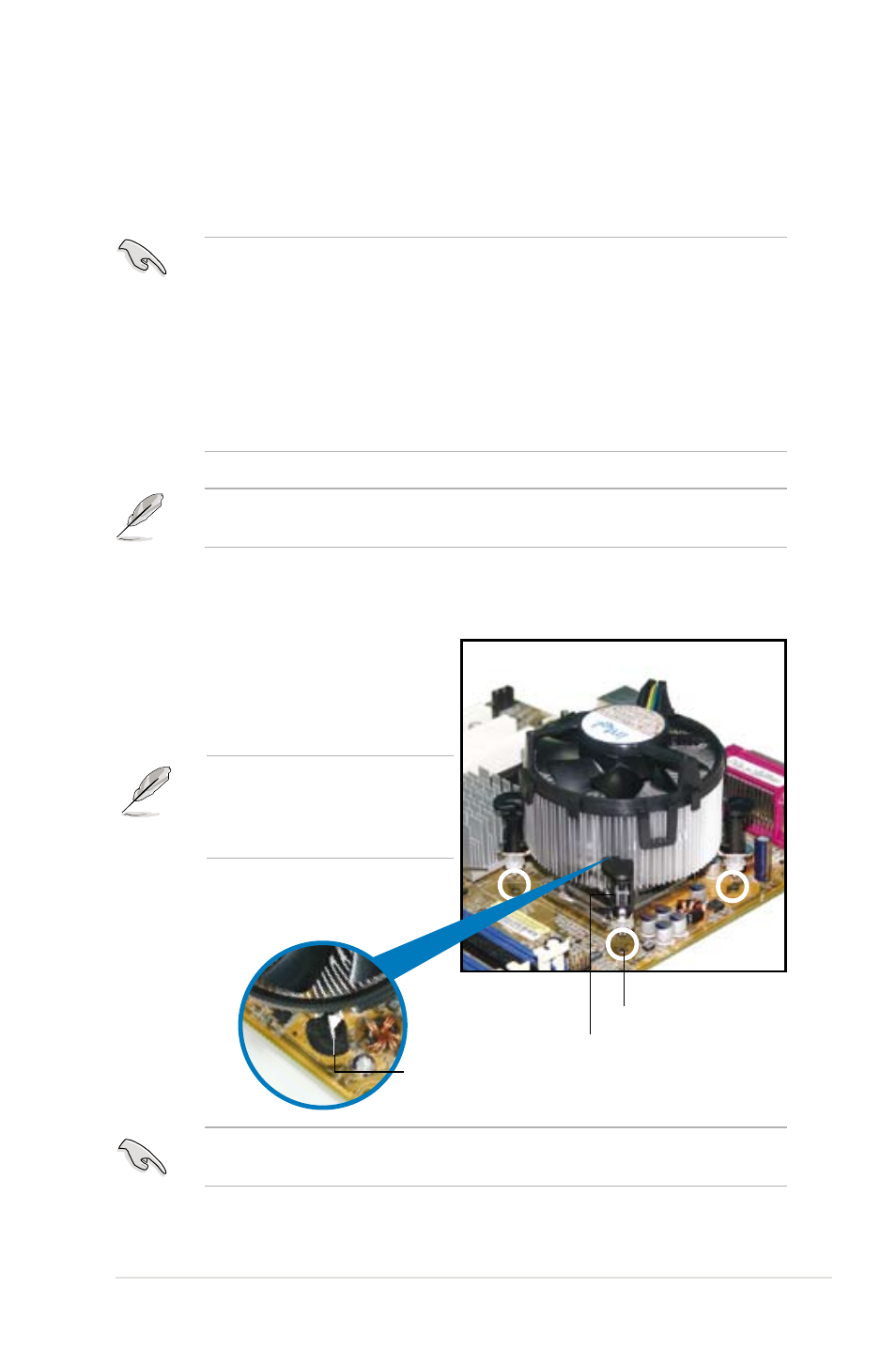

To install the CPU heatsink and fan:
1. Place the heatsink on top of the
installed CPU, making sure that the
four fasteners match the holes on
the motherboard.
Make sure to orient each fastener with the narrow end of the groove pointing
outward. (The photo shows the groove shaded for emphasis.)
Orient the heatsink and fan
assembly such that the CPU fan
cable is closest to the CPU fan
connector.
N a r r o w e n d
of the groove
