2-10 Chapter 2: Hardware information
3. Connect the CPU fan cable to the connector on the motherboard labeled
CPU_FAN.
Do not forget to connect the CPU fan connector! Hardware monitoring errors
can occur if you fail to plug this connector.
P
5
E
-V
M
H
D
M
I
®
P5E-VM HDMI CPU fan connector
CPU_FAN
GND
CPU F
AN PW
R
CPU F
AN IN
CPU F
AN PW
M

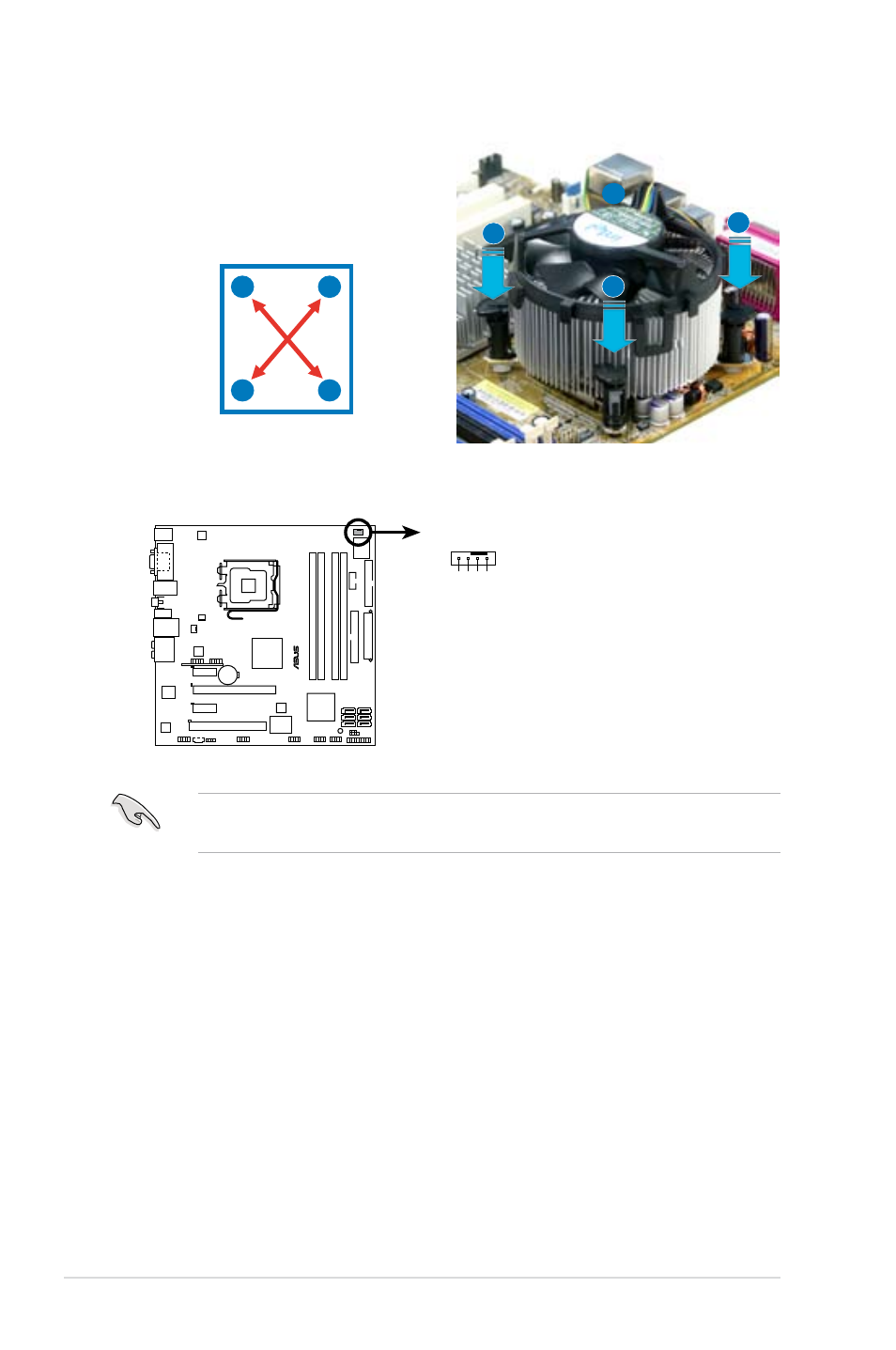

2. Push down two fasteners at a time in
a diagonal sequence to secure the
heatsink and fan assembly in place.
