2-30 Chapter 2: Hardware information

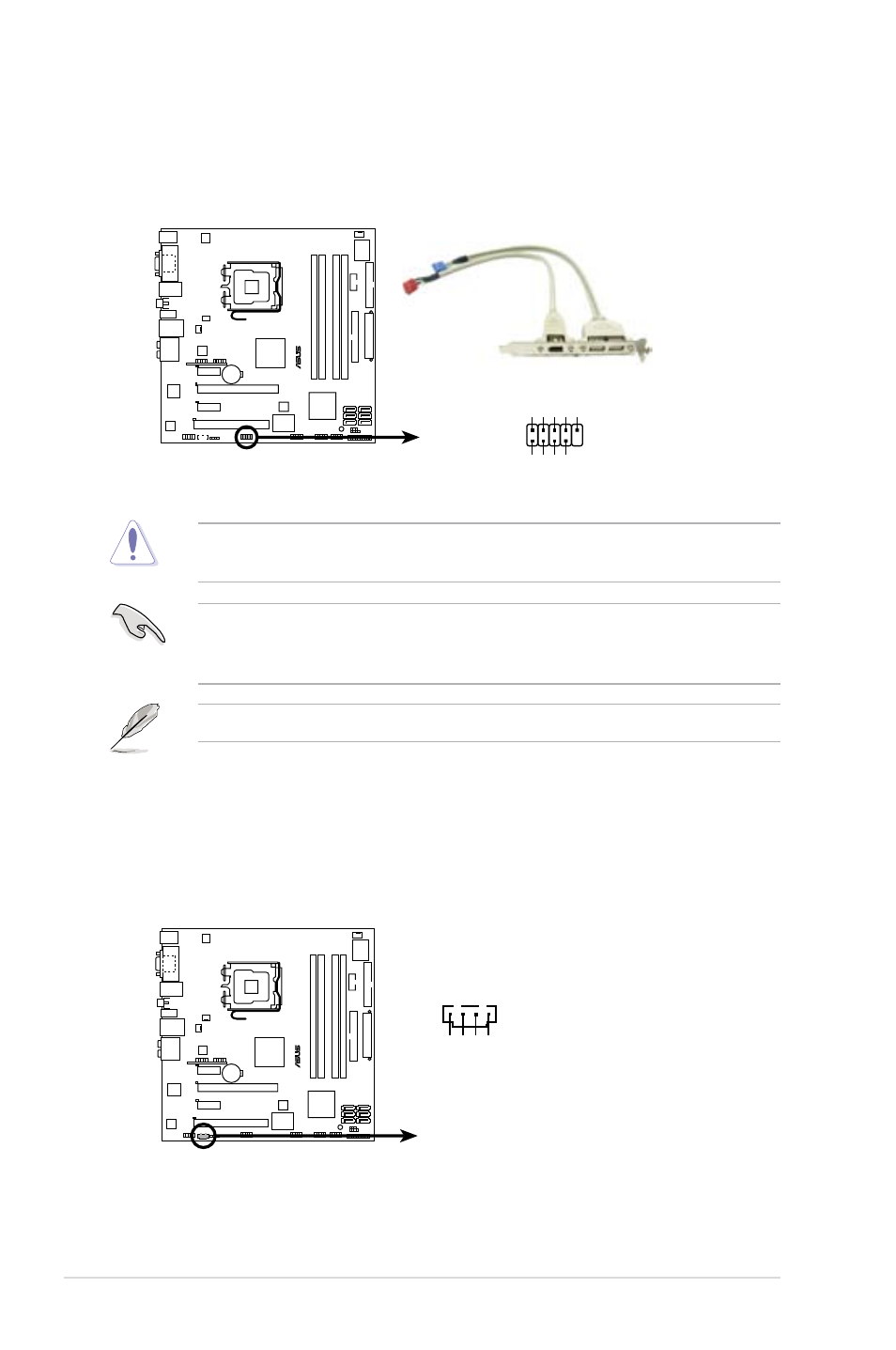

6. IEEE 1394a port connector (10-1 pin IE1394_2)
This connector is for a IEEE 1394a port. Connect the IEEE 1394a module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
P
5
E
-V
M
H
D
M
I
®
P5E-VM HDMI IEEE 1394a connector
IE1394_2
PIN1
TP
A2-
GND TPB2- +12V GND
TP
A2+ GND
TPB2+
+12V
Never connect a USB cable to the IEEE 1394a connector. Doing so will damage
the motherboard!
You can connect the front panel 1394 cable to the ASUS Q-Connector (1394,
red) first, and then install the Q-Connector (1394) to the 1394 connector
onboard if your chassis supports front panel 1394 ports.
The IEEE 1394a module cable is purchased separately.
7. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
P
5 E
-V
M
H
D
M
I
®
P5E-VM HDMI Internal audio connector
CD
Right A
udio Channel
Left A
udio Channel
Ground Ground
