Chapter 2, Installing the wi-fi antenna connector – Asus MAXIMUS VI IMPACT User Manual
Page 75
ASUS MAXIMUS VI IMPACT
2-17
Chapter 2

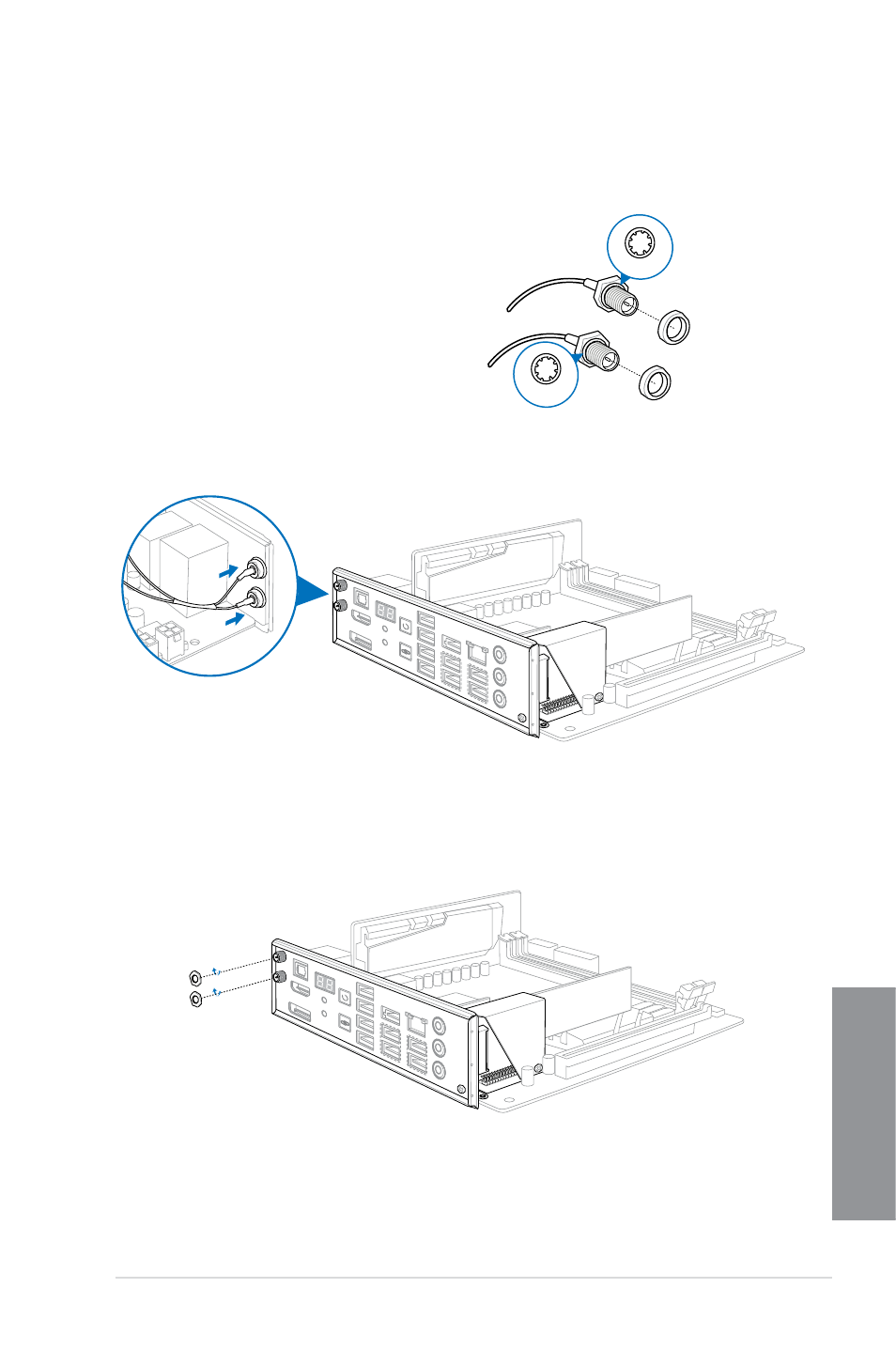

Installing the Wi-Fi antenna connector
1.
Remove the bolt from the Wi-Fi antenna
connector but leave the washer on the
connector.
To install the Wi-Fi antenna connector:
2.
Insert the connector into the I/O shield’s Wi-Fi port hole.
3.
Replace the bolt on the connector to secure the antenna connector and the I/O shield
in place.
bolt
bolt
washer
washer
