1-34

Chapter 1: Product introduction

Chapter 1

4.

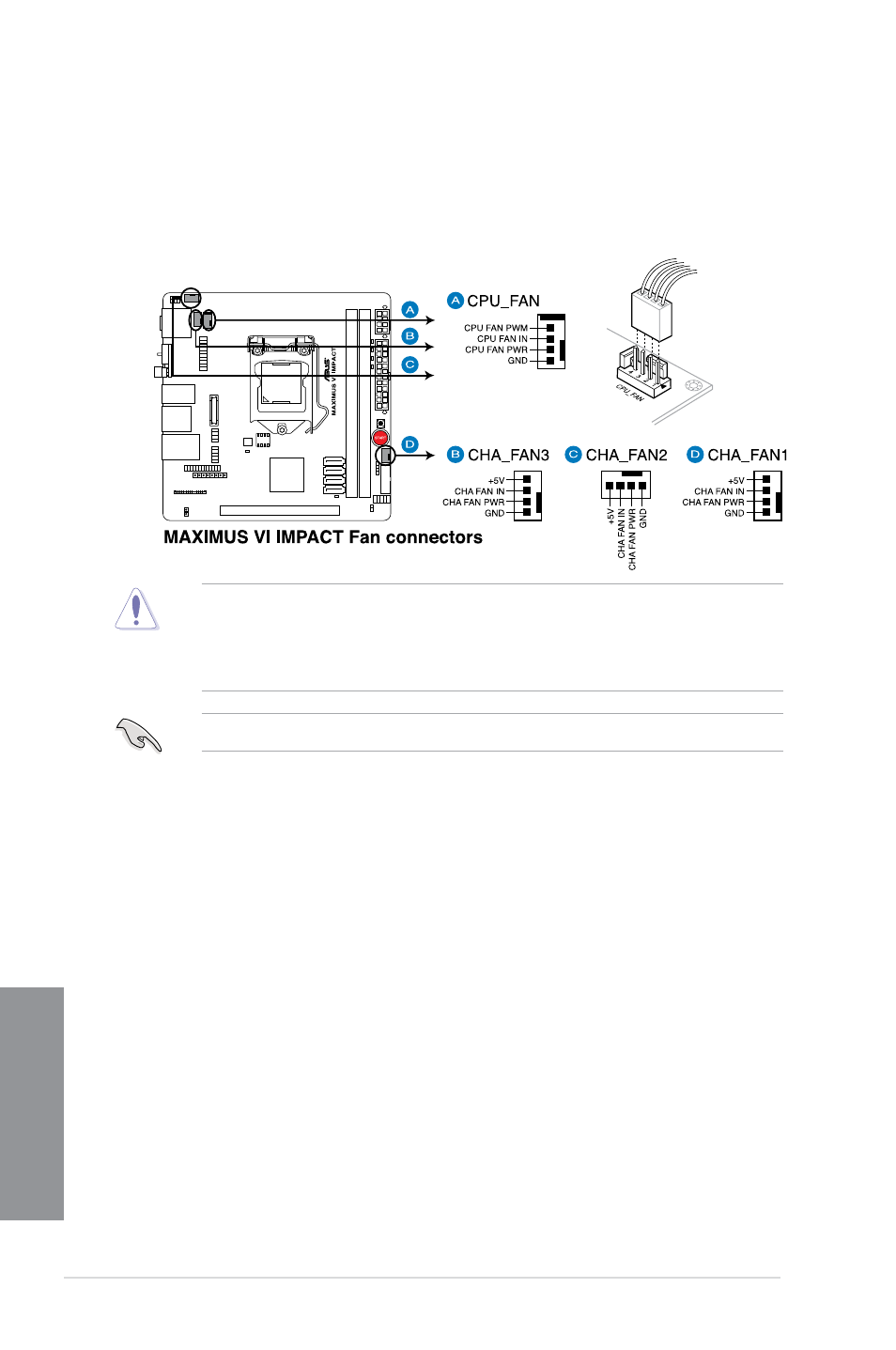

CPU and chassis fan connectors

(4-pin CPU_FAN; 4-pin CHA_FAN1-3)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the

black wire of each cable matches the ground pin of the connector.

•

DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow

inside the system may damage the motherboard components. These are not jumpers!

Do not place jumper caps on the fan connectors!

•

Ensure to fully insert the 4-pin CPU fan cable to the CPU fan connector.

The CPU_FAN connector supports the CPU fan of maximum 1A (12 W) fan power.
