Asus AP120-E1 User Manual
Page 46
Chapter 3: Optional components
3-8

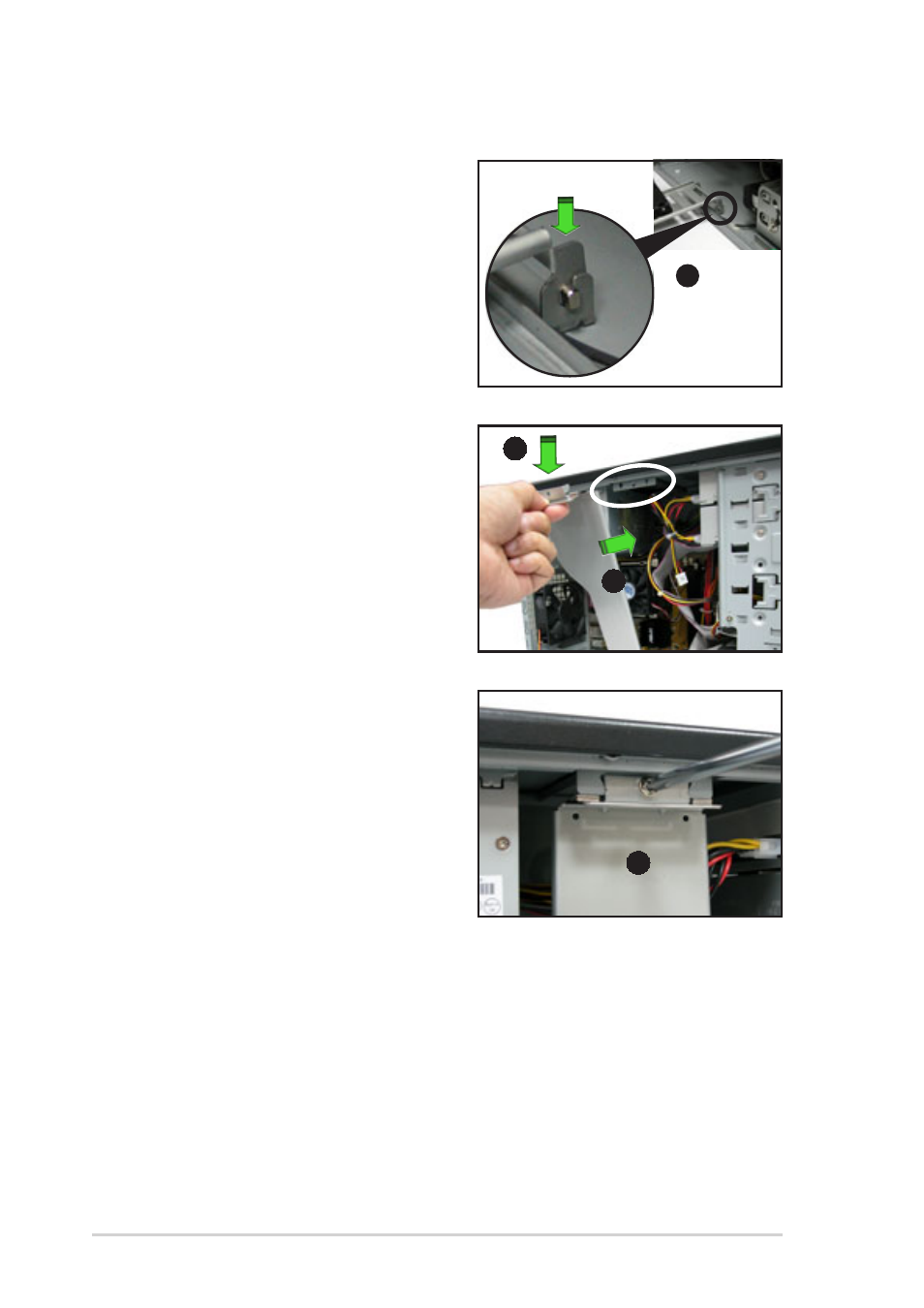

To install the expansion card holder:
1. Insert the expansion card
holder locking screw to the
retention bracket notch, as
shown.
2. Turn the expansion card holder
upright.
3. Press the locking lever, then
insert the hooks to the chassis
holes.
4. Secure the expansion card
holder with one screw.
1
2
3
4
