Page 45

3-7
ASUS AP120-E1 user guide

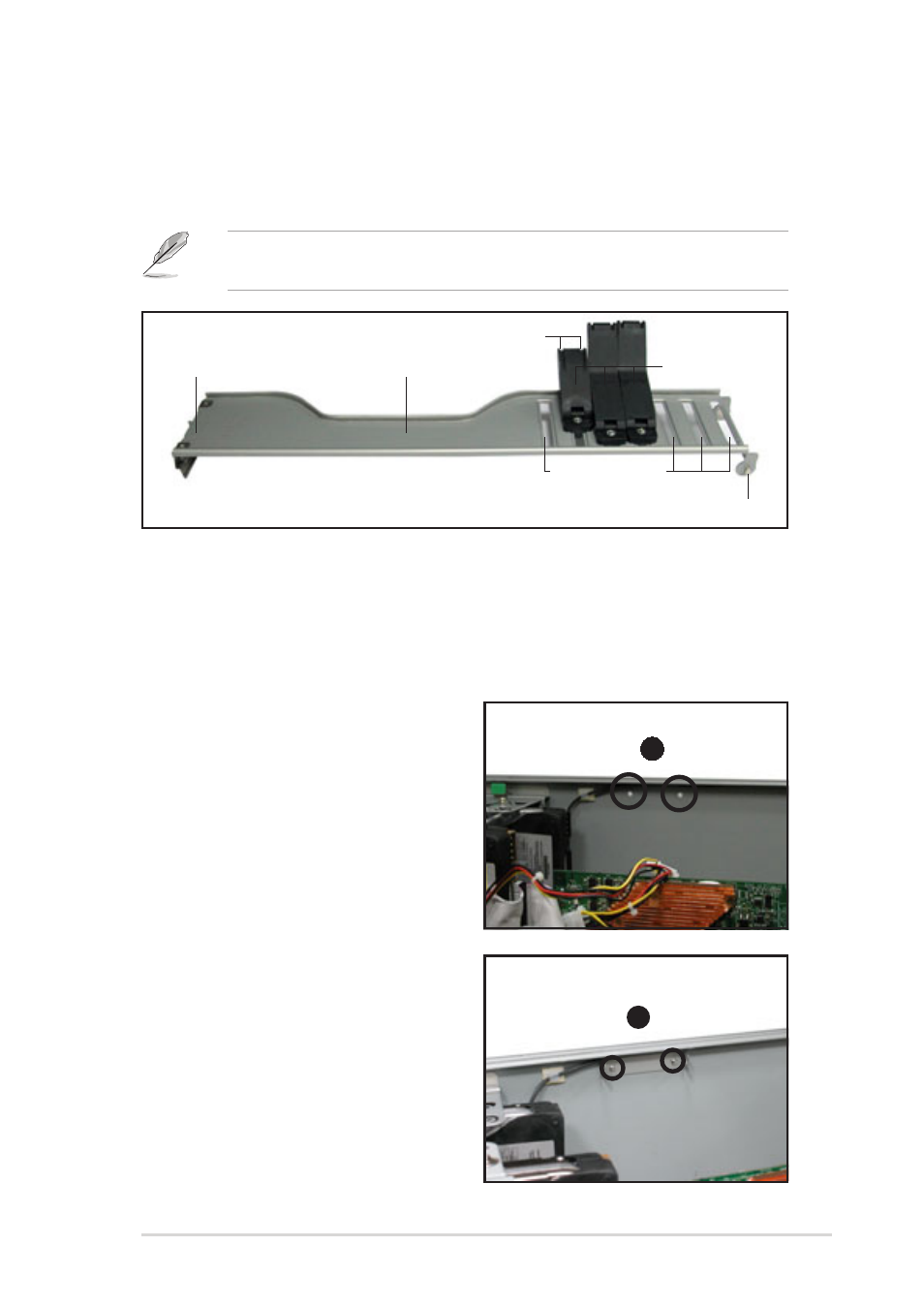

3.1.3 Expansion card holder
The expansion card holder provides support for long and heavy PCI and
AGP cards.
The expansion card holder comes with a retention bracket to keep the
expansion card holder in place.
To install the retention bracket:
1. Lay the system on its side on a flat, stable surface.
2. Locate two retention bracket
screw holes on the chassis floor.
Install all necessary expansion cards before installing the expansion
card holder.
Assembly
Locking screw
Adjusting slots
Card holders
Locking lever
Grooves
3. Place the retention bracket
over the chassis floor screw
holes, then secure the bracket
with two screws.
4. Turn the chassis upright.
3
2
