Asus AP120-E1 User Manual
Page 23
2-7
ASUS AP120-E1 user guide
6. Install a CPU heatsink and fan following the instructions that came with
the heatsink package.
Don’t forget to connect the CPU fan connector! Hardware monitoring
errors may occur if you fail to plug this connector.
ASUS provides an Intel
®
-certified CPU fan and heatsink assembly as
an optional item for your AP120-E1 system. Refer to the “Installation
options” chapter for details.

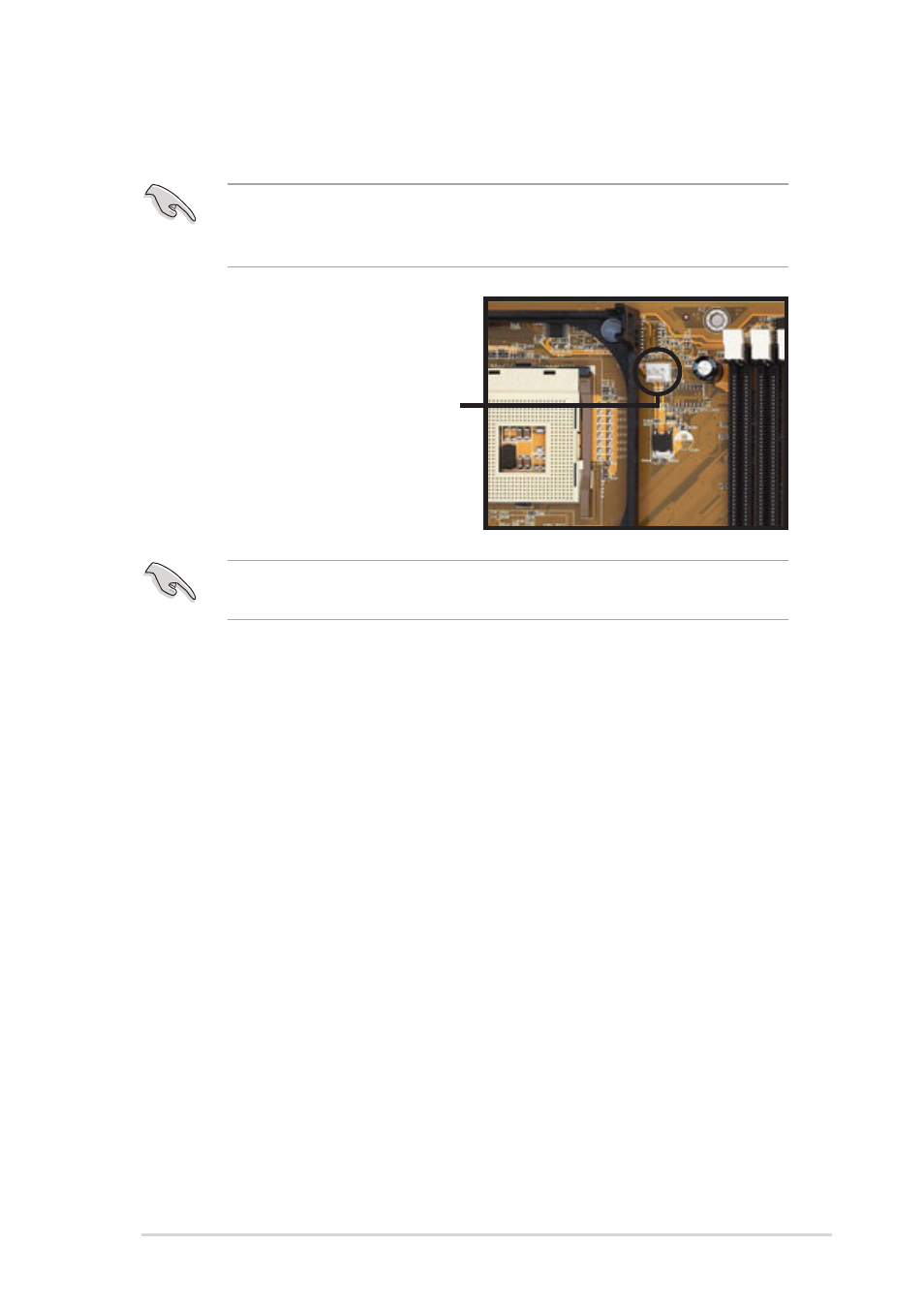

7. Connect the CPU fan cable to the
CPU_FAN1 connector on the
motherboard.
CPU fan connector
(CPU_FAN1)
