2-13 ASUS AP120-E1 user guide

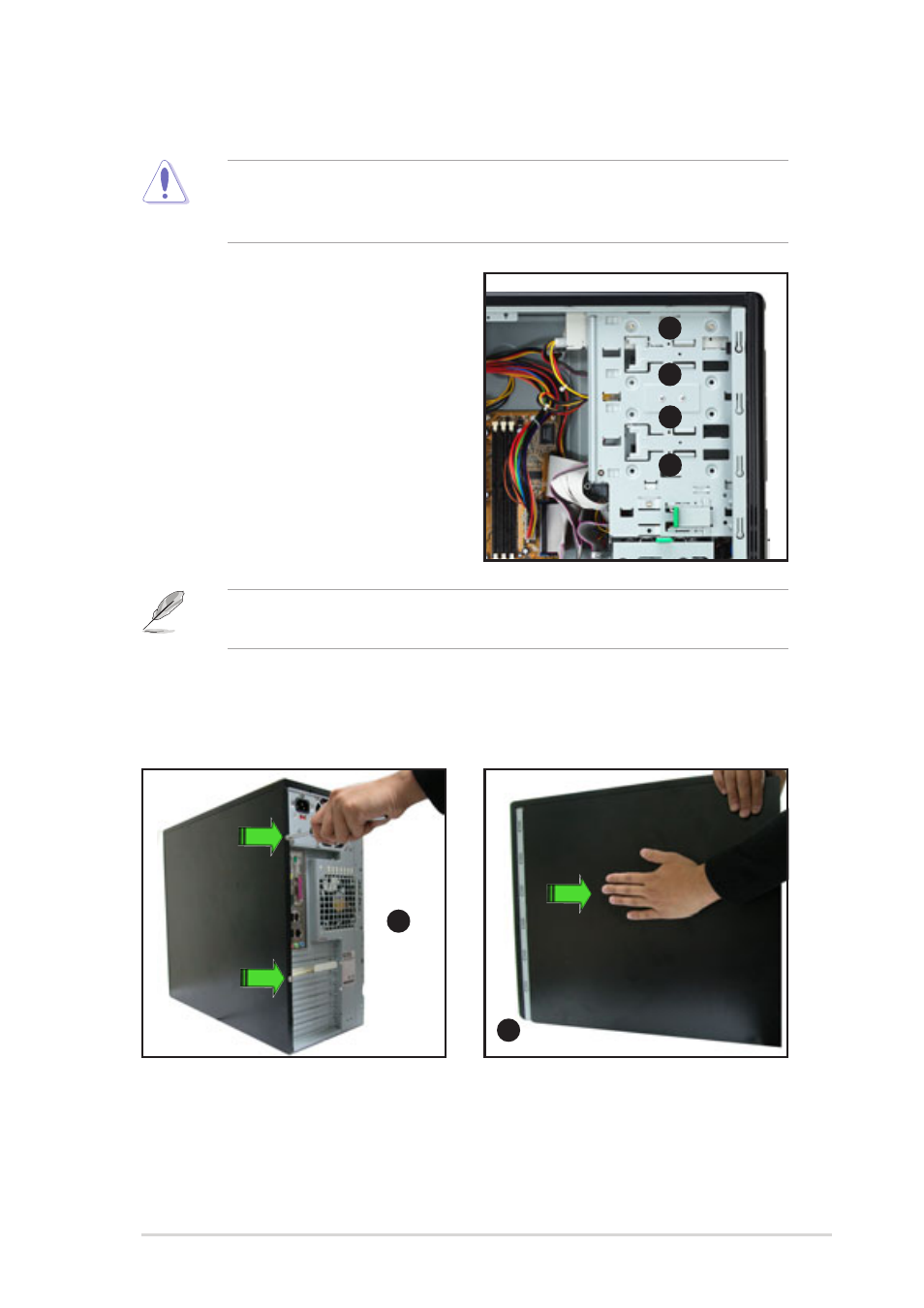

2.7 Installing 5.25-inch drives
The system comes with four
5.25-inch drive bays located on the
upper front part of the chassis. An
optical drive that comes standard
with the system package occupies
the uppermost bay
(labeled 1). The
three lower bays (labeled 2, 3, and 4)
are available for additional 5.25-inch
optical, zip, or floppy disk drives.
Make sure to unplug the power cable before installing or removing any
system components. Failure to do so may cause severe damage to the
motherboard and other system components!
2.7.1 Removing the front panel cover
To remove the front panel cover:
1. Locate and remove two screws
that secure the left side cover
to the chassis. Keep the screw
for later use.
2. Slightly pull the cover toward
the direction of the rear panel
until it disengages from the
chassis. Set the cover aside.
1
2
1
2
3
4
You must remove the front panel cover before installing a 5.25-inch
drive(s).
