ASUS AP120-E1 user guide
1-5
1.5

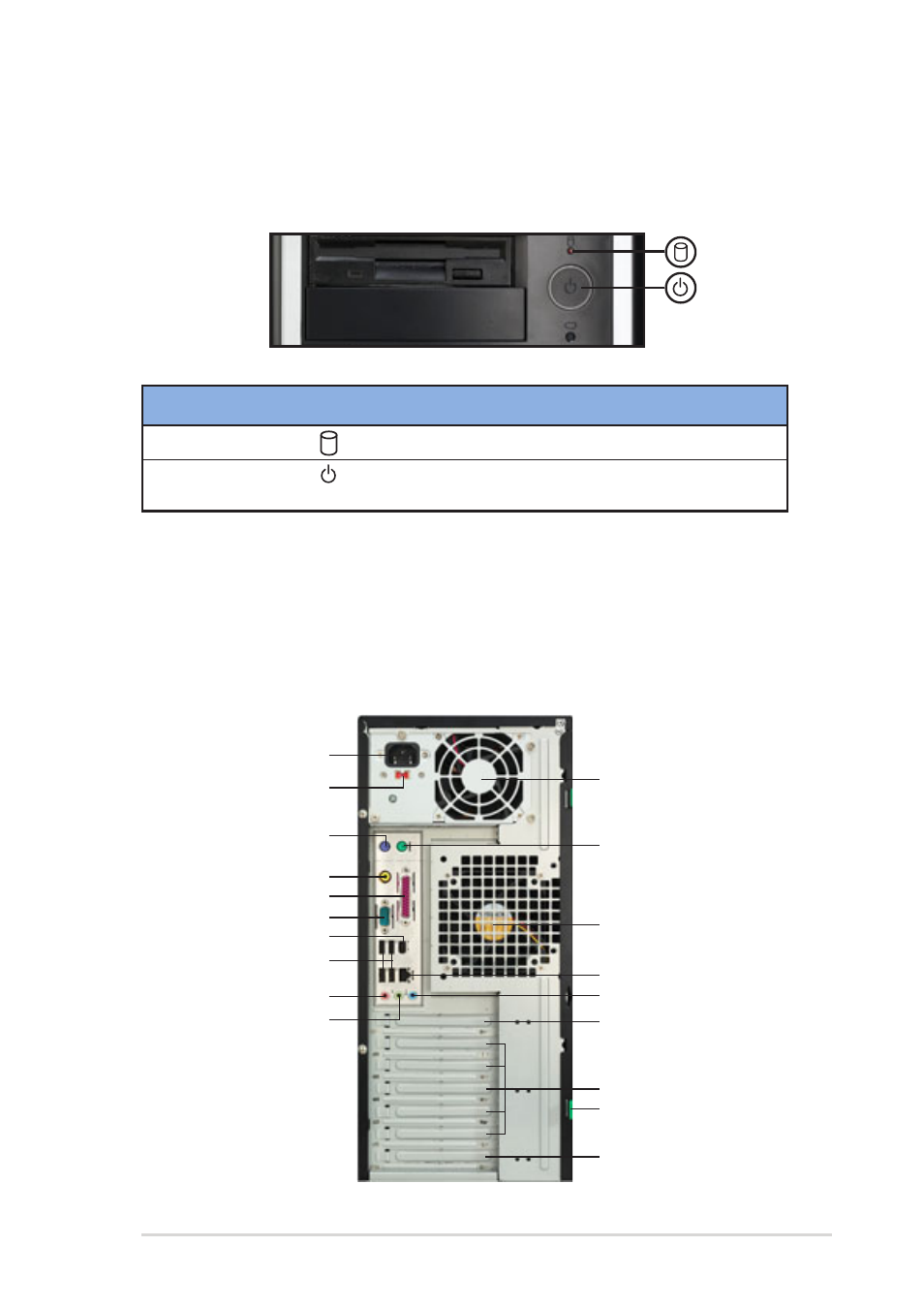

Rear panel features
The rear panel includes a slot for the motherboard rear I/O ports, seven
full-length expansion slots, chassis cover locks, a vent for the system fan,
and the power supply unit.
1.4
LED information
The AP120-E1 comes with two LED indicators. Refer to the picture for the
LED location and the table below for LED description.
Power connector
PCI expansion slots
Power suppy unit
9cm chassis fan
Line Out port
P/S2 mouse port
S/PDIF Out port
Microphone port
PS/2 keyboard port
Parallel port
Serial port
IEEE 1394 port
USB ports
AGP expansion slot
Wi-Fi expansion slot
Line In port
Gigabit LAN port
Voltage selector
Side cover locking lever
LED
Icon
Display
Description
Drive Activity LED
Blinking
Read/write data into the HDD
Power LED
ON
System power ON
Blinking
Suspend mode
